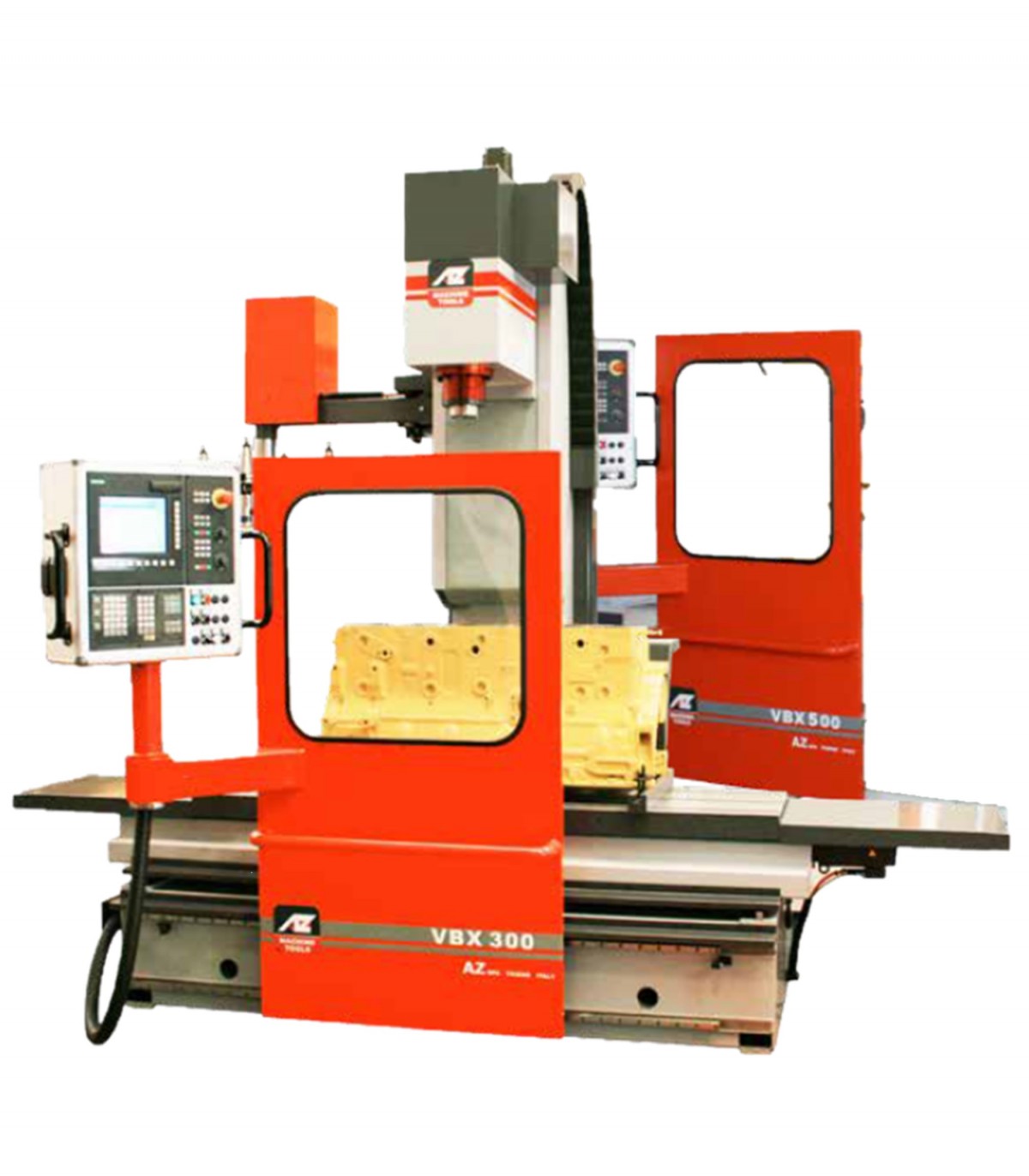

AZ Spa CNC Vertical Boring-Milling Machine VBX300

Model: VBX300
  • CNC ISO professional programming
  • Customized programming
  • 3 axis movement by precision ballscrews and brushless servomotors

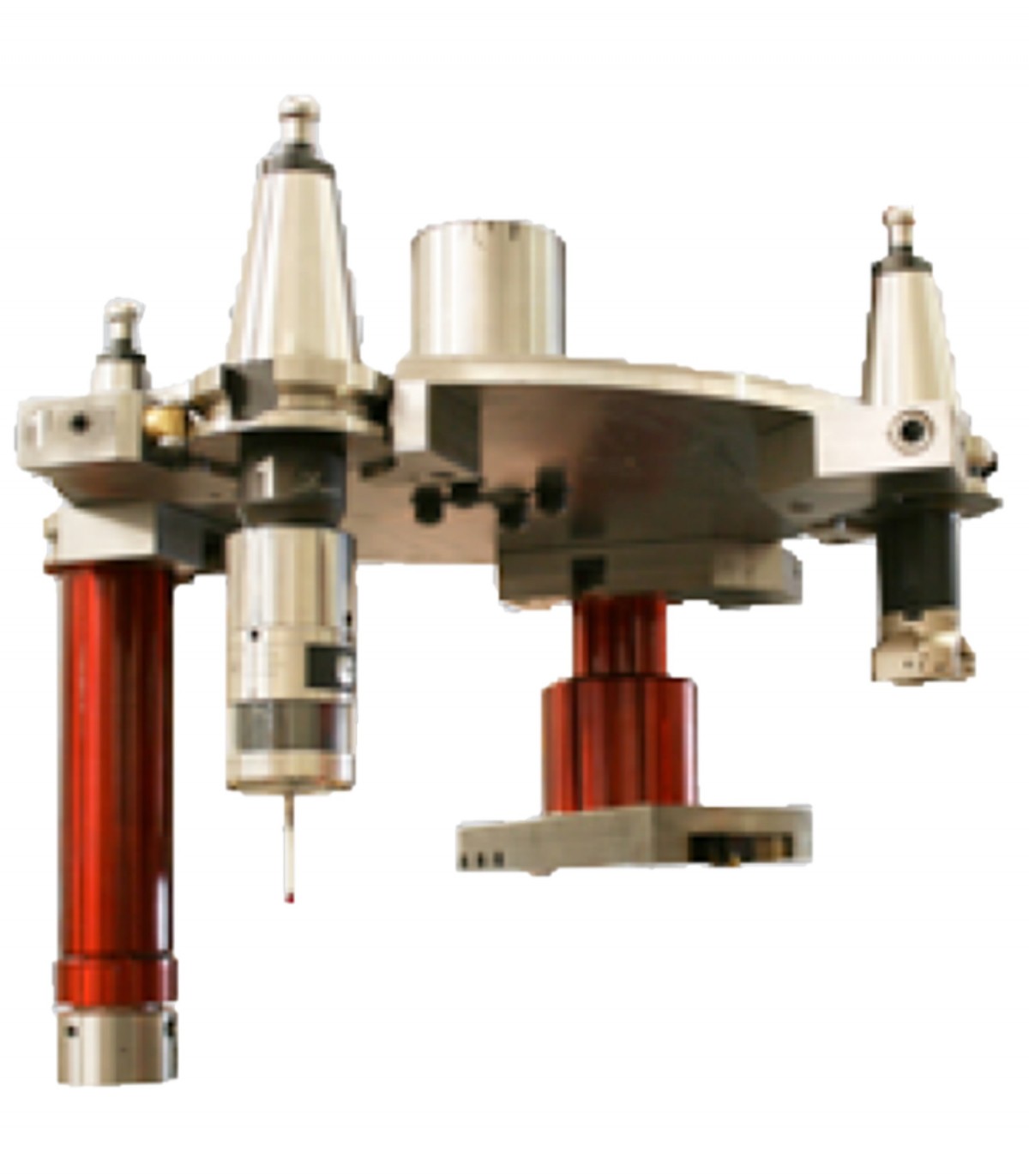

  • Automatic changing of tools with storage for 4 tools
  • Complete automatic work cycle
  • Large connecting rod machining and grinding. Special heavy duty xture for boring and grinding very large and heavy connecting rods up to 500 mm of diameter
Add to wishlist

Boring capacity (min. and max. dia.) : 30-400mm

Horizontal travel Z axis : 1880mm

Vertical spindle travel X axis : 680mm

Travel in/out X axis : 200

Spindle rotation : 60-600rpm

Head movement : 0-3000mm/min

Table movement  : 0-3000mm/min

Spindle rotation : 5,5kW

Head movement (working and rapid feed) : 20Nm

Table movement : 20Nm

Product Details

Data sheet
