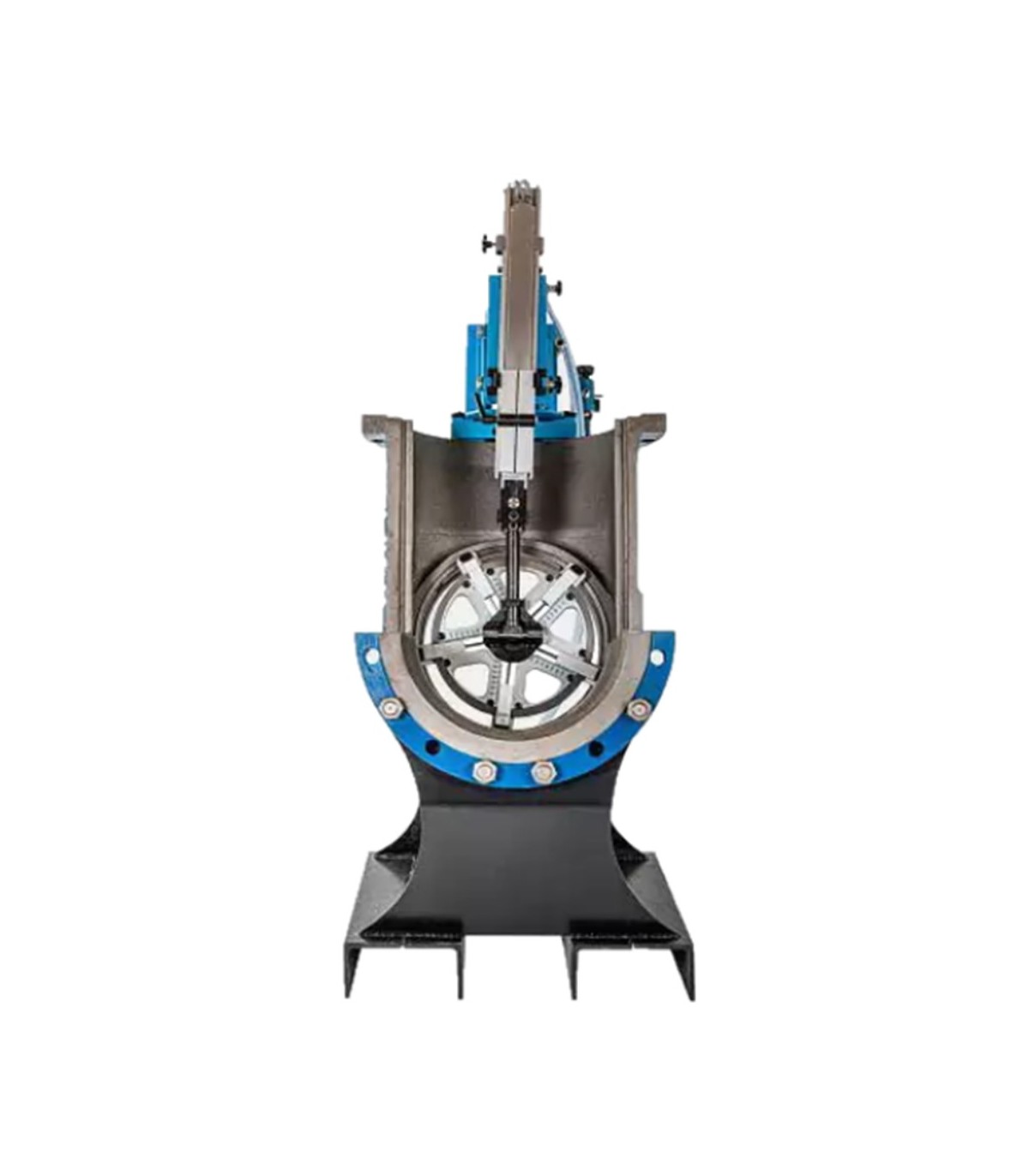

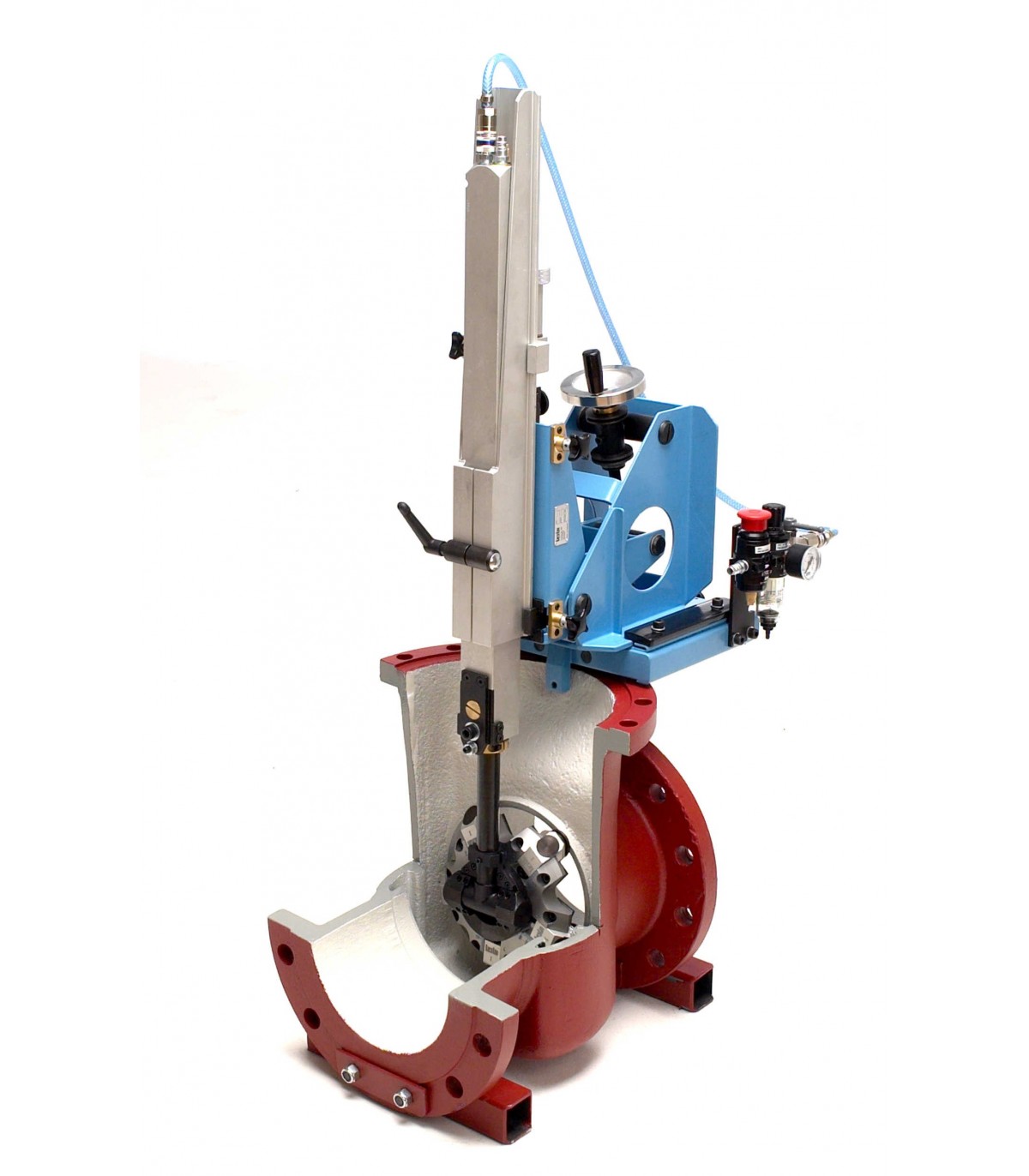

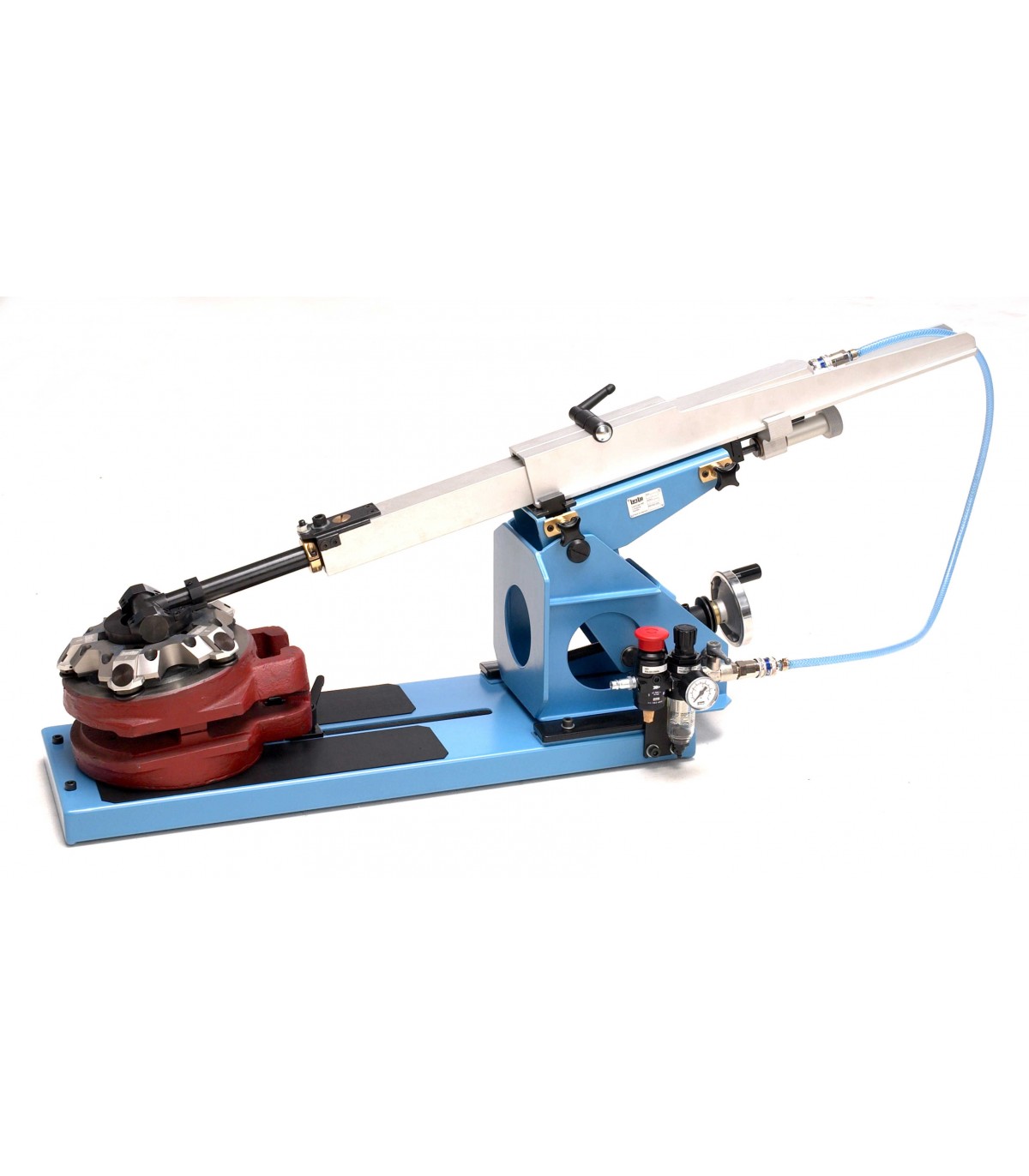

LarsLap Model G

A large range, portable machine ideal for gate, parallel slide, globe, check, safety and control valves, discs and wedges.

• Suitable for valves with flat seats ø 150 – 1300 mm (6” – 52”)
• Individually driven grinding heads for an absolute flat sealing surface
• The driving heads have diametrically adjustable grinding heads
• Tilting driving head gives flexibility to grind both gate and globe valves with the same drive unit
• Air drive unit as standard 6 – 7 bar
• Electric drive unit available as alternative
• Variable grinding speed on all drive units
• Self-adhesive grinding discs for quick attachment to the grinding heads
• Supplied with rough, medium and fine grinding discs
• Heavy duty carrying/storage case for the complete machine with all the necessary accessories
• Self-adhesive grinding discs 40 to 1000 grit available
• Diamond grinding discs available
• Adaptor plates for wider seats available
• Thin section driving heads available
• Grinding heads for angled seats available
