Vertical Double Scissor Lift Table TMD 1500

Brand:
Model: TMD 1500

EdmoLift's vertical double and triple scissor lift tables can be used as working platforms, pallet stackers, work tables, lifts and lifts for disabled persons, to name a few applications. Compared to a traditional lift solution, EdmoLift's vertical double and triple scissor lift tables provide a rational and cost effective solution.

Add to wishlist
விவரம்

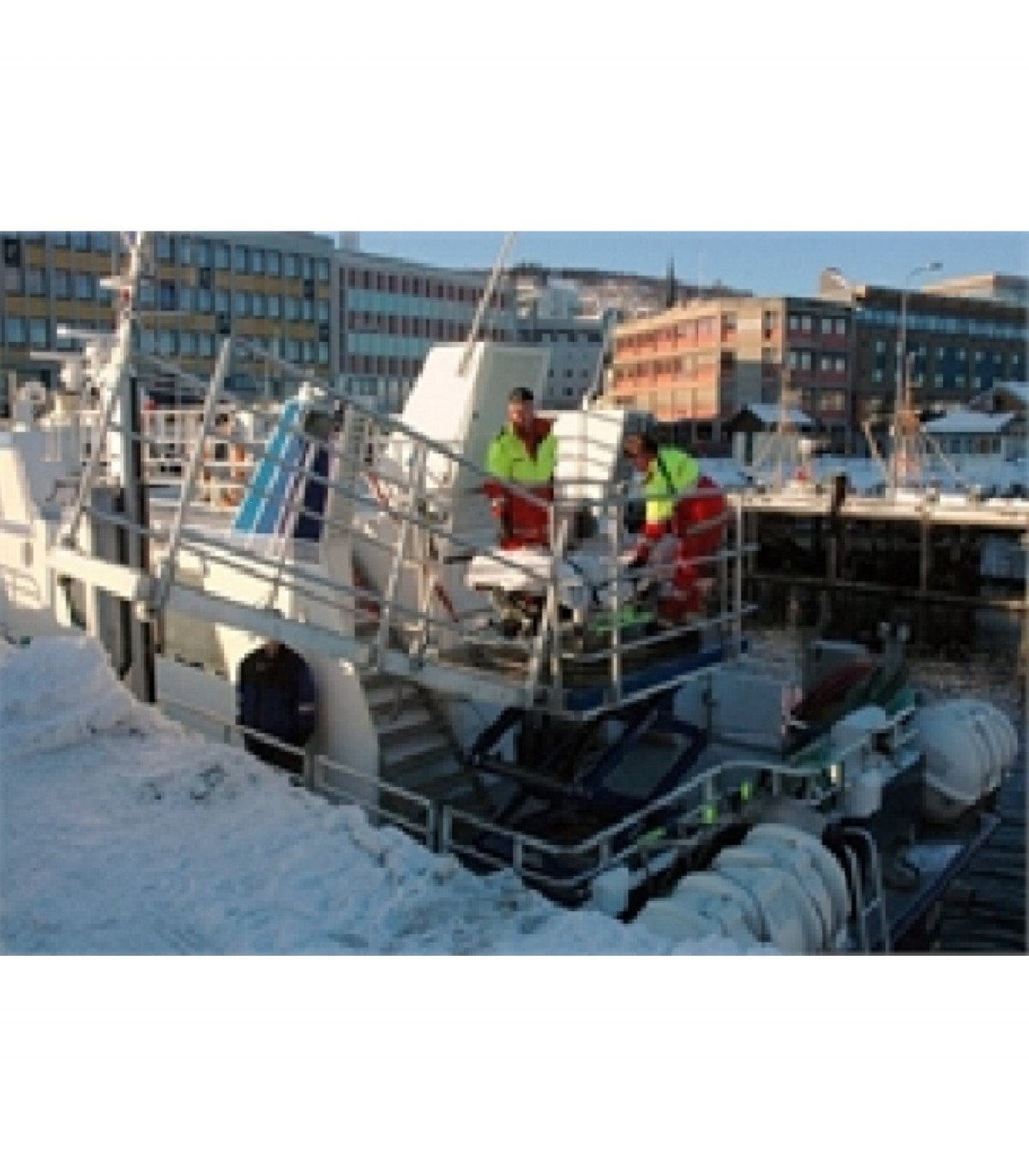

When accidents happen at sea the rescuers need to be able to quickly get out to the people involved. After injured people have been saved onboard the rescuers’ boat and taken care of by the staff only one problem remains, to get the people out of the boat up on land and sometimes even to the hospital. As different heights of docks in relation to the boat and sea level often have caused problems in critical stages, EdmoLift received the task to create an adapted lift table of the model TMD 1500. The table is installed in the stern of the boat to facilitate the work, and give the rescuers and the medical personnel an opportunity to safely move injured people on and off the boat.

Product Details
TMD 1500

Data sheet

Model
TMD 1500
Art. no.
22013
Capacity
1500 kg
Lift stroke
2200 mm
Closed height
400 mm
Length
1700 mm
Width
1000 mm
Lifting time
46 sec
kW
1,50 kW
