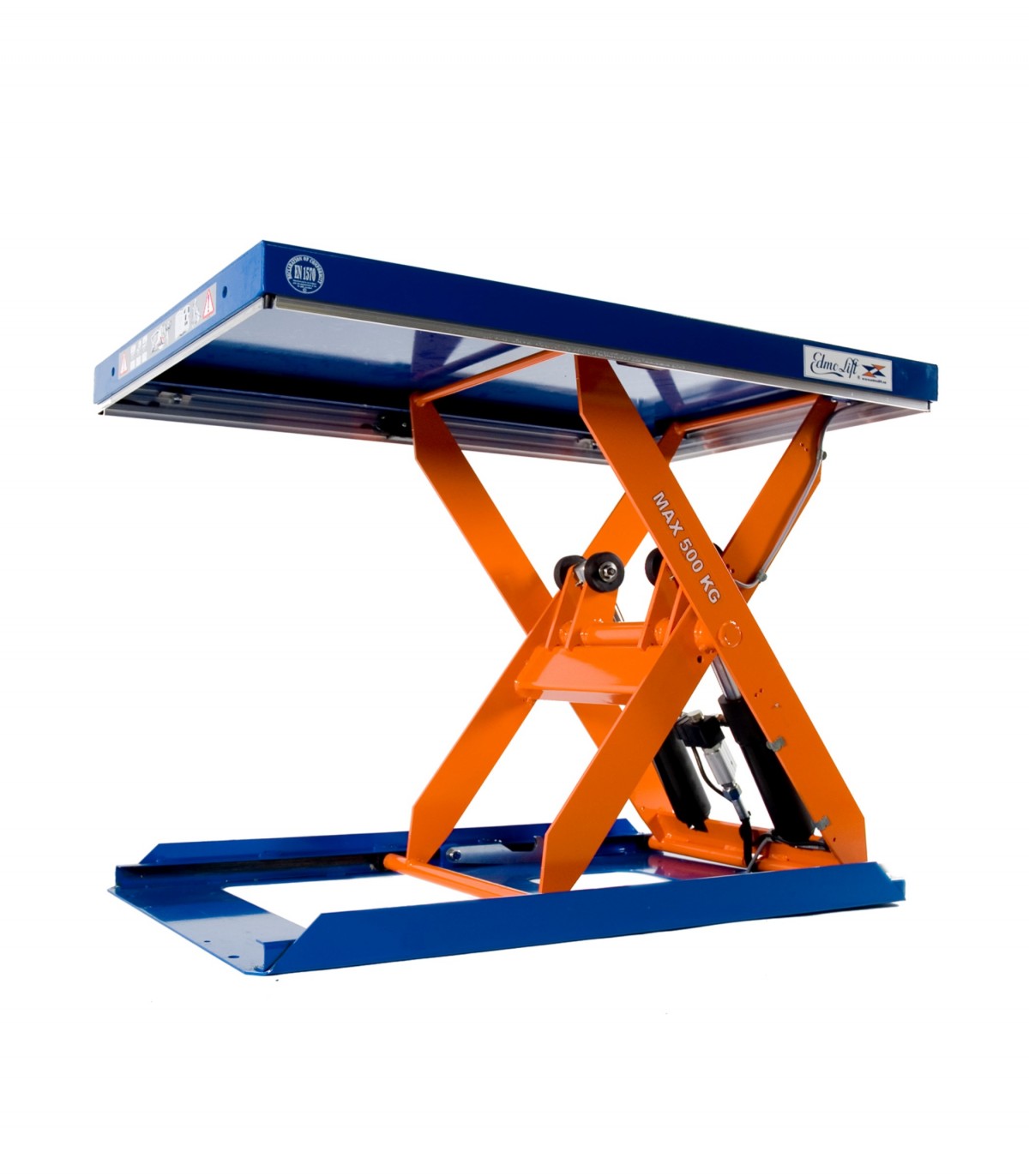

Low Profile Lift Table TCR 500

Brand:

Model: TCR 500

EdmoLift's scissor lift table with a low profile has the functionality level equivalent to that of a conventional scissor lift table from EdmoLift. By taking on a new approach in design and construction, while the manufacturing process is carried out in the high-tech production facility and based upon laser technology, the scissor lift table with a low profile from EdmoLift is superior to previous models and one of its kind on the lift table market.

Make an Enquiry

Add to wishlist

விவரம்
Product Details

விவரம்

Scissor lift table with a low profile has a load capacity of maximum 2000 kg
Scissor lift table with a low profile has a length ranging from 900 mm to 1500 mm for the standard design. Available with U- or E-shaped or solid lift table
New generation with 100 mm shorter lift table but with 100 mm extra lift height
Quick lifting
Lifting eye bolts in the lift table base frame for more flexible transportation and installation
Complies with European safety standard EN 1570-1 – CE certified
24 V DC control unit and operating device with deadman’s switch
IP54 approved electrical system
Safety spacing between all moving parts of the lift table
Overload protection
Adjustable trap prevention safety trip bars on all four sides of the platform

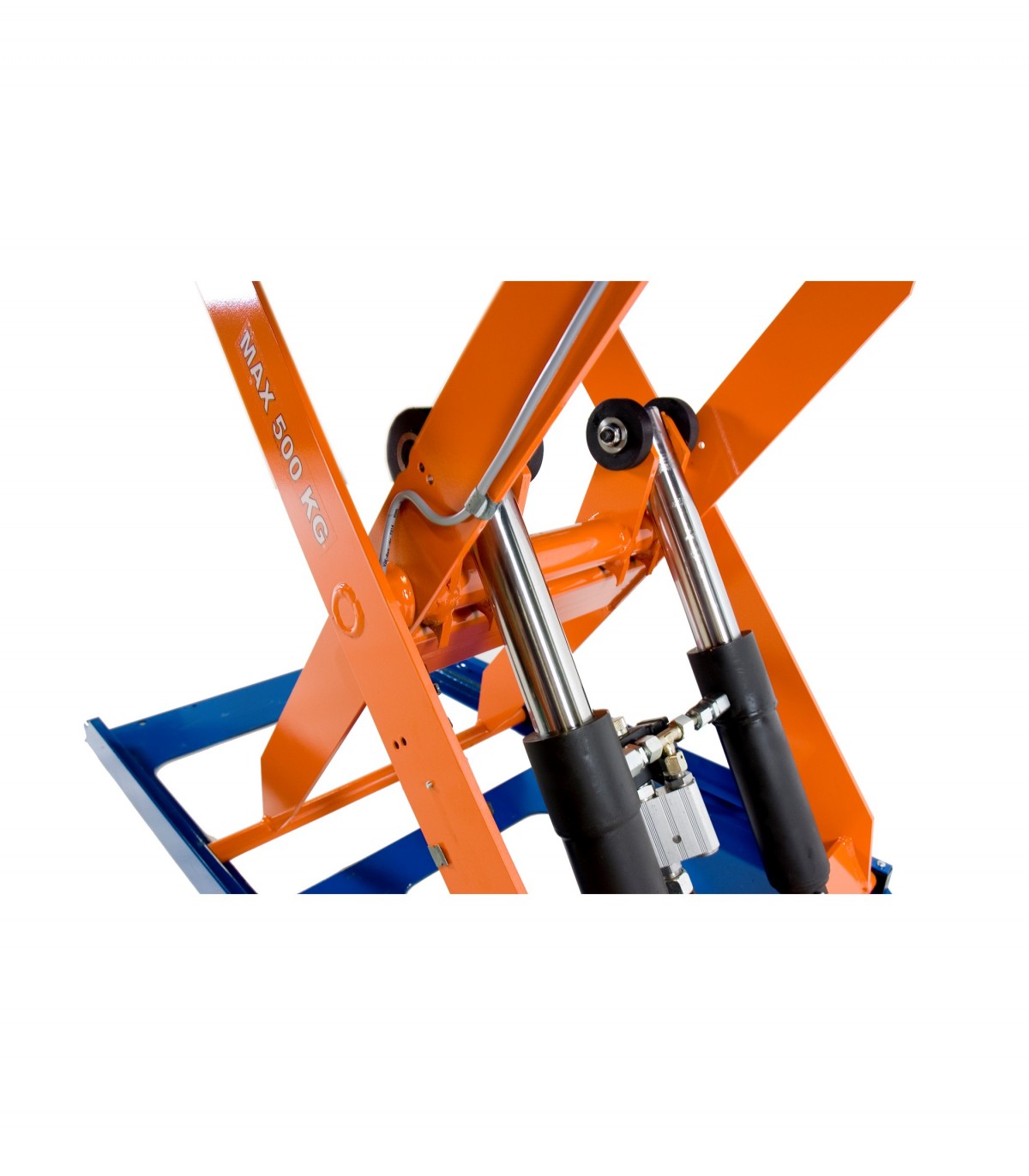

The scissor lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance
Maintenance-free bearing surface
PLC control for easy adaptation to individual requirements

Product Details

Reference TCR 500

Data sheet

Model: TCR 500

Art. no.: 34919

Capacity: 500 kg

Lift stroke: 630 mm

Closed height: 80 mm

Length: 900 mm

Width: 900 mm

Lifting time: 9 sec

kW: 0,75 kW

Loading area width: 600 mm

Loading area length: 945 mm
