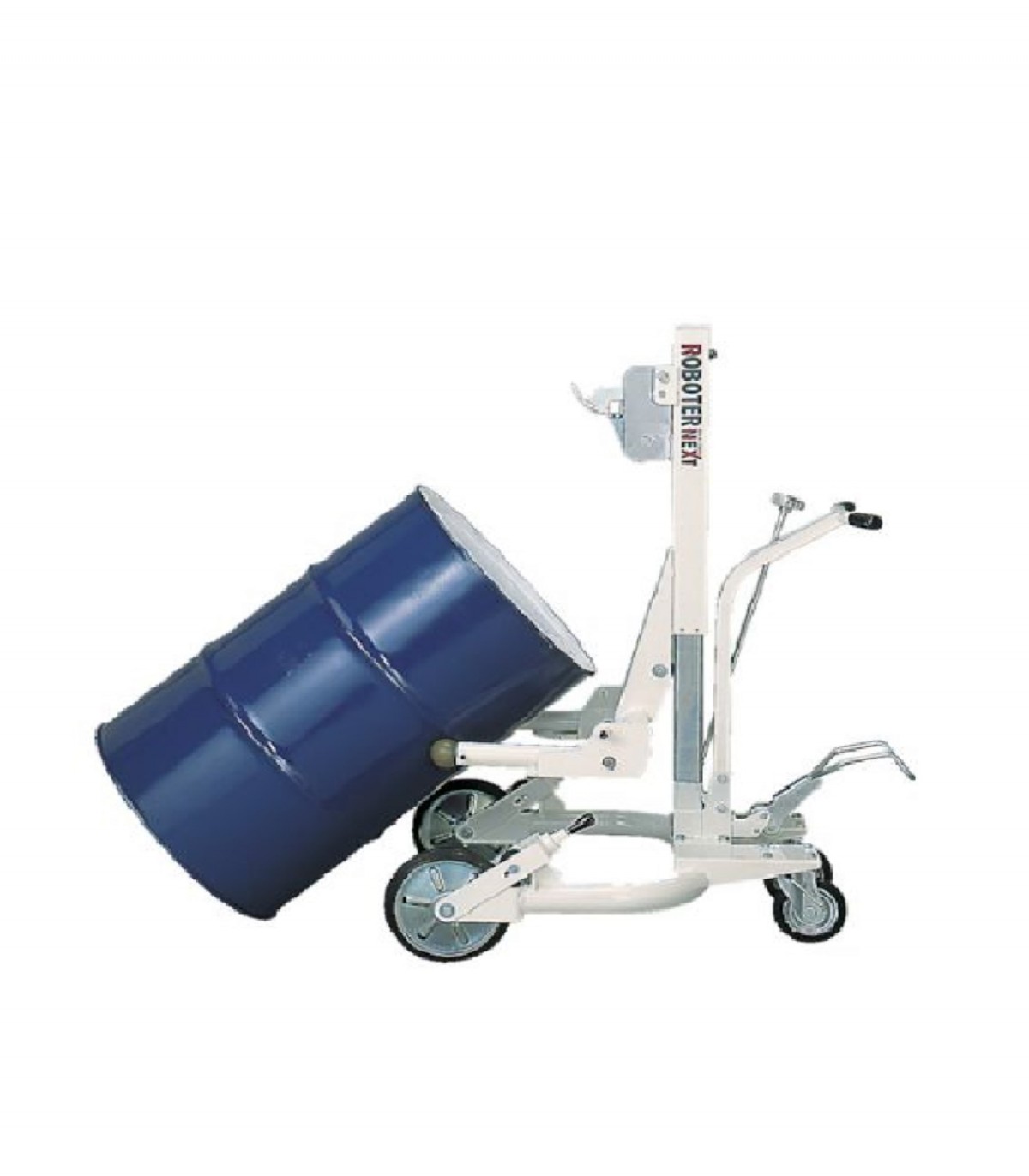

Taiyu Drum Carrier RX-5

Brand:

Model: RX-5

Drum carrier is a mechanical equipment that is used to handle and transport cylindrical module such as metal drums and plastic drums. It has spring-loaded metal arms for a tight and secure grip.

Make an Enquiry

Add to wishlist

Description
Product Details

Description

Smooth operation with the hydraulic foot pedal mechanism.
You do not need to touch drums containing hazardous materials
Using the specially designed fork, drums on their side can be stood up without difficulty
Release the worker from back strain
Raise safely and transport easily

Product Details

Reference RX-5

Data sheet

Model: RX-5

Capacity: 300 kg

Lift stroke: 430 mm

Length: 1090 mm

Width: 870 mm

Height: 1040 mm

Chuck Height: 830 - 1340 mm

Front wheels: ø250mm rubber x 2

Rear wheels: ø150 mm rubber x 2

Net Weight: 85 kg

Distance between front wheels: 630 mm

Lift per pedal press: 17 mm

Pedal operating force: 25 kg
