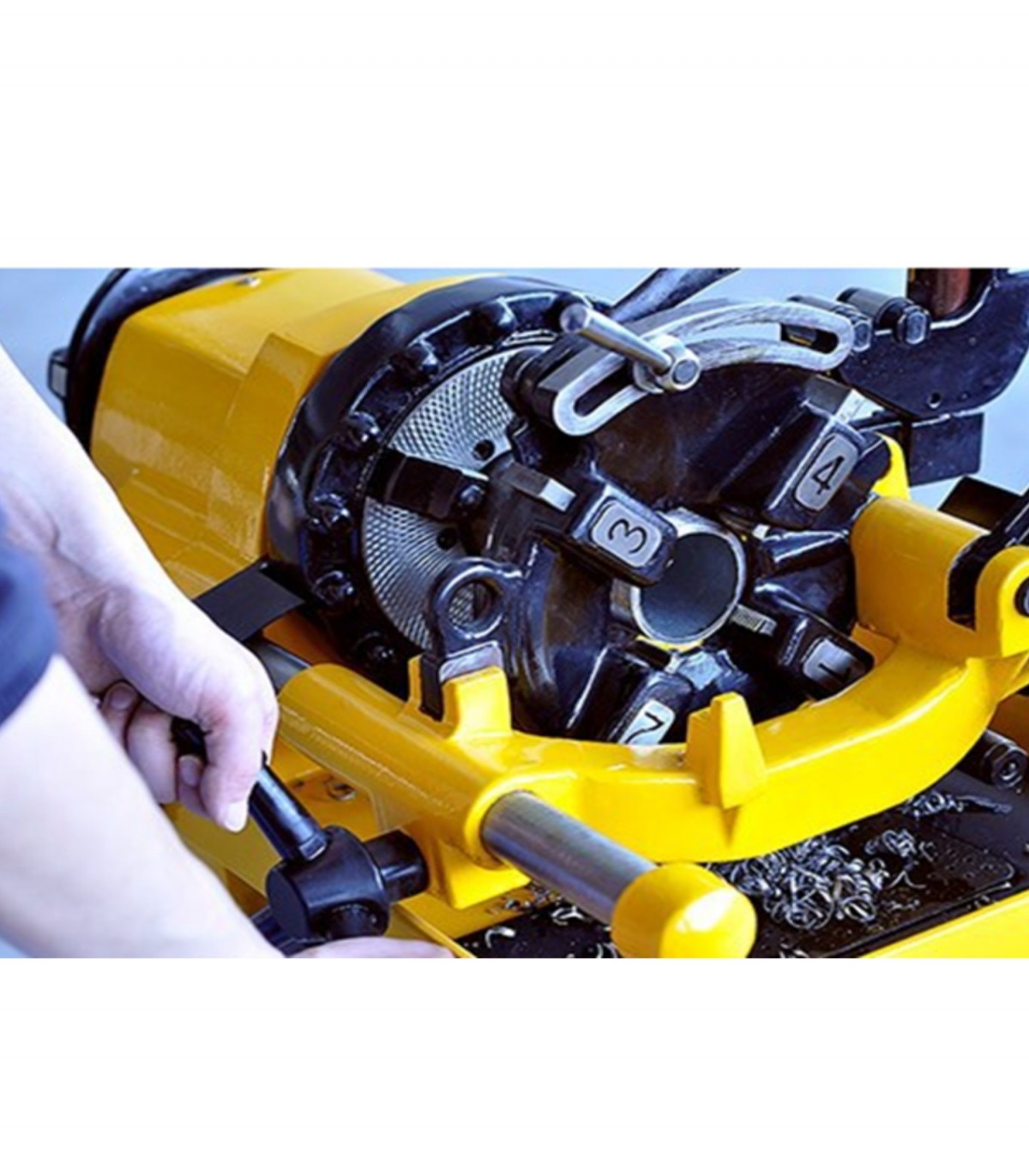

This machine is for threading of various water, electric or gas pipes ranging form 1/2"- 4". It is efficient and can be widely used in equipment installation and construction industries and is an ideal device for increasing efficiency, shortening construction time, securing construction quality, and decreasing working intensity. Read this manual carefully before using the machine.
Features
An induction motor ensures sound levels well when using.
A special capacitor-start / capacitor run motor allows the machine to thread where voltage drop is experienced.
¼”-2” universal Die Head; 2½”-4” receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
Approved by CSA and CE standards.
Specifications
Motor: 1500W induction, 50/60Hz,single phase.
Switch: ON/OFF heavy duty switch,foot switch and FOR/OFF/REV switch is optional
Spindle Speed: 36/20/11 RPM.
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with intergral oil reservoir.
Standard Equipment
Model SQ100F threading machine.
Self-open die head, 1/4”-2”
Receding self-open die head, 2 1/2”-4”½”-¾” universal HSS dies set.
1”-2” universal HSS dies set.
2 1/2”-4” universal HSS dies set.
Cutter: Capacity: 1/4”-2”(6mm-50mm) pipe
Reamer: Positive-locking, right-hand1/4”-2”(6mm-50mm).
