Ideal for globe, control and safety valves with flat or angled seats.

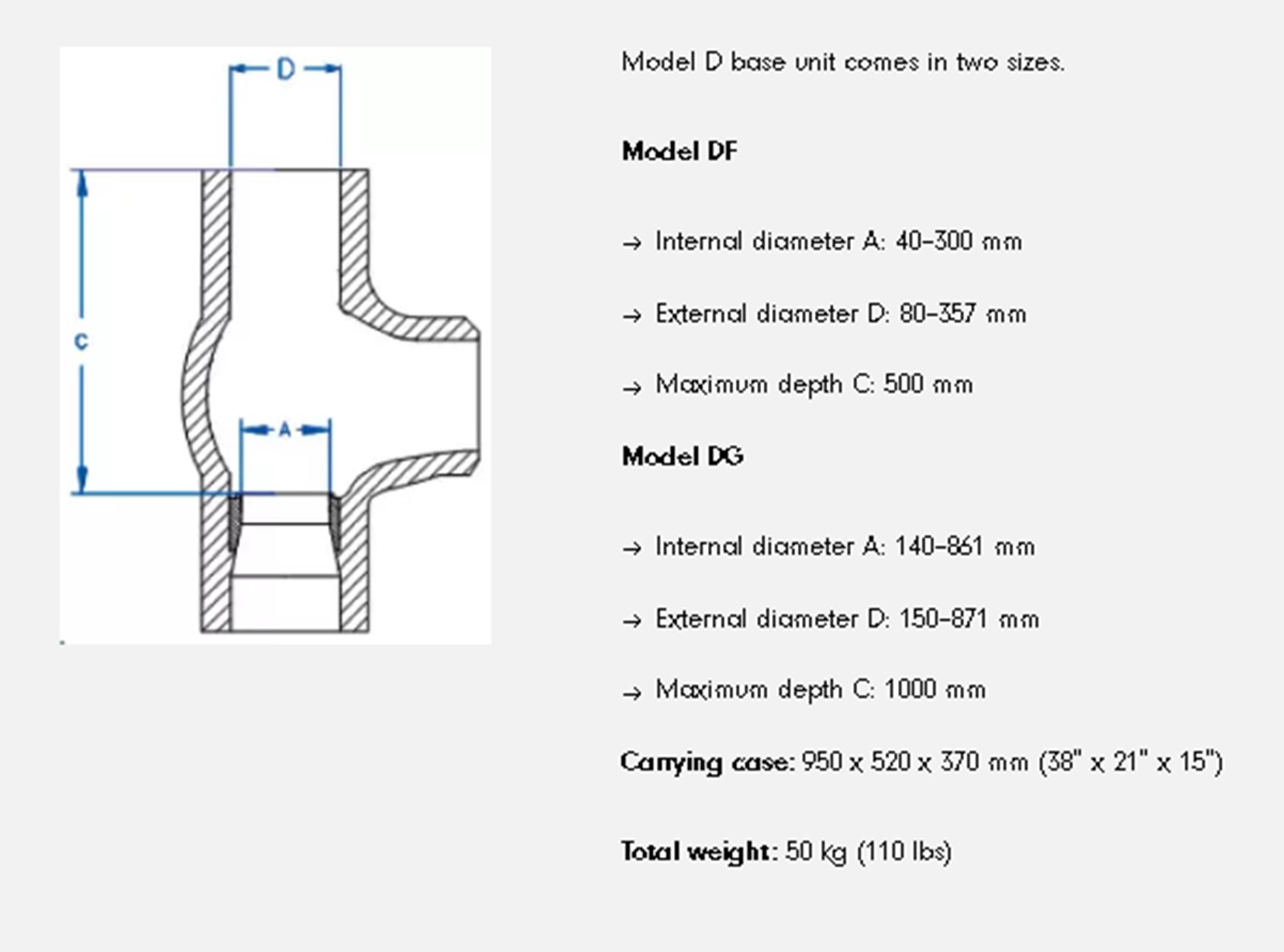

This machine is mounted to the valve body using a unique three segments, adjustable, self centering jaw chuck, allowing a quick and accurate set up whether in the workshop or on site. Available with electric or pneumatic drive, the Model DF/DG valve grinding machine system can be supplied as a standard kit or customized to suit your exact requirements.
- Suitable for valves with flat and angle seats ø 50-800mm (2"-32")
- Absolutely flat sealing surface
- Individually driven grinding heads
- Air drive unit as standard 6-7 bar
- Variable grinding speed on all drive units
- Fine adjustment of pressure for precise grinding of surface
- Self-adhesive grinding discs for quick attachment to the grinding heads
- Supplied with rough, medium and fine grinding discs
- Heavy duty carrying/storage case for the complete machine with all the necessary accessories
- Cone segments in different angles available
- Self-adhesive grinding discs 40 to 1000 grit are available
- Diamond grinding discs available
