Edmolift Horizontal Double Scissor Lift Table TLH 4000

Brand:
Model: TLH 4000

The horizontal double scissor lift table by EdmoLift is the solution you need to handle goods that are both heavy and long. The lift platform is equipped with a combination of two pairs of EdmoLift scissors to obtain the desired lift range and length of the scissor lift table. The lift maneuvers of the two pairs of scissors are mechanically controlled to achieve a parallel lift operation.

Add to wishlist
Description
  • Scissor lift table load capacity - max 10 000 kg
  • Lift table platform length from 2600 mm to 6200 mm as a standard model
  • Comprehensive program of accessories and possibilities for customizing the scissor lift tables
  • Complies with European safety standard EN 1570-1 - CE certified
  • 24 V DC control unit and operating device with deadman's switch
  • IP54 approved electrical system
  • Safety spacing between all moving parts of the lift table
  • Overload protection
  • Adjustable trap prevention safety trip bars on all four sides of the platform
  • The lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance
  • Maintenance-free bearing surface
  • PLC control with possibility to program various functions is included for the standard model. PLC control enables customization for specific requirements
Product Details
TLH 4000

Data sheet

Model
TLH 4000
Art. no.
33115
Capacity
4000 kg
Lift stroke
820 mm
Closed height
200 mm
Length
2600 mm
Width
800 mm
Lifting time
35 sec
kW
1,5 kW
20 other products in the same category:
Edmolift

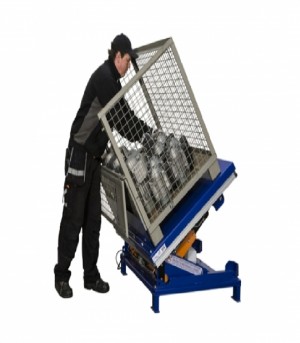

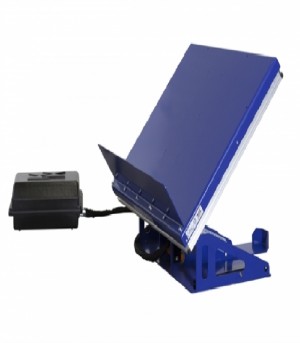

Armlift's unique patented function offers an ergonomic work place with ample foot space, comfortable working positions and unrivalled accessibility. Armlift is the perfect choice for almost all work places that handle...
Edmolift
Armlift's unique patented function offers an ergonomic work place with ample foot space, comfortable working positions and unrivalled accessibility. Armlift is the perfect choice for almost all work places that handle...
Edmolift
EdmoLift’s C series has been developed to provide unrivalled value for money! Many of the essential components, including the hydraulics, are identical to those found in our T series. These products have a powder coat...
Edmolift
EdmoLift’s C series has been developed to provide unrivalled value for money! Many of the essential components, including the hydraulics, are identical to those found in our T series. These products have a powder coat...
Edmolift
EdmoLift’s C series has been developed to provide unrivalled value for money! Many of the essential components, including the hydraulics, are identical to those found in our T series. These products have a powder coat...
Edmolift
EdmoLift's scissor lift table with a low profile has the functionality level equivalent to that of a conventional scissor lift table from EdmoLift. By taking on a new approach in design and construction, while the...
Edmolift
EdmoLift’s C series has been developed to provide unrivalled value for money! Many of the essential components, including the hydraulics, are identical to those found in our T series. These products have a powder coat...
Edmolift
EdmoLift’s C series has been developed to provide unrivalled value for money! Many of the essential components, including the hydraulics, are identical to those found in our T series. These products have a powder coat...
Edmolift

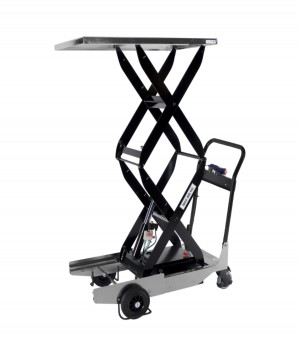

The lifting trolleys in the stainless steel series effectively handle weights of up to 300 kg and is designed with the best ergonomics and flexibility in mind. The entire series can be specially adapted to suit your...
