Taiyu
A mechanism that smoothly lifts, turns and lowers drums. Hazardous material can be handled even more securely.
Brand:
Drum Carrier RX-5
Brand:
Model:
RX-5

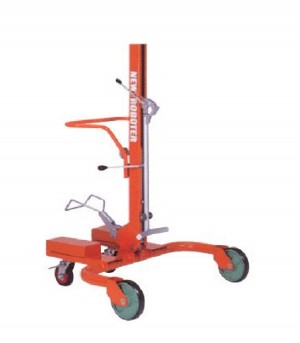

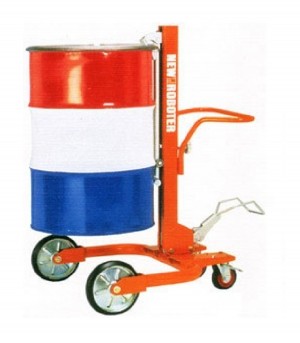

Drum carrier is a mechanical equipment that is used to handle and transport cylindrical module such as metal drums and plastic drums. It has spring-loaded metal arms for a tight and secure grip.
Add to wishlist
- Smooth operation with the hydraulic foot pedal mechanism.
- You do not need to touch drums containing hazardous materials
- Using the specially designed fork, drums on their side can be stood up without difficulty
- Release the worker from back strain
- Raise safely and transport easily
RX-5
Data sheet
- Model
- RX-5
- Capacity
- 300 kg
- Lift stroke
- 430 mm
- Length
- 1090 mm
- Width
- 870 mm
- Height
- 1040 mm
- Chuck Height
- 830 - 1340 mm
- Front wheels
- ø250mm rubber x 2
- Rear wheels
- ø150 mm rubber x 2
- Net Weight
- 85 kg
- Distance between front wheels
- 630 mm
- Lift per pedal press
- 17 mm
- Pedal operating force
- 25 kg
20 other products in the same category:
Taiyu
Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
Taiyu
A mechanism that smoothly lifts, turns and lowers drums. Hazardous material can be handled even more securely.
Taiyu

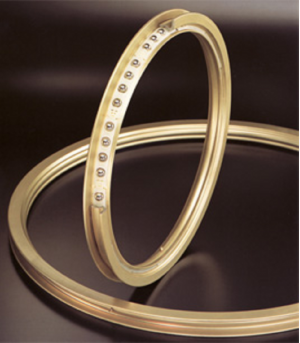

Luluman can be used slightly differently from Pallet Turn. Luluman can be incorporated into machinery as a substitute for bearings, used vertically, or adapted for other tasks which Pallet Turn cannot handle.
Taiyu
Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
Taiyu

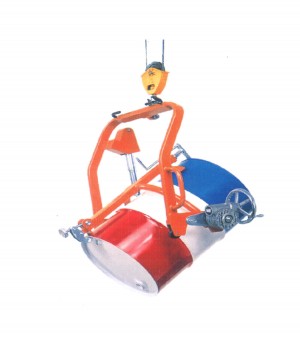

Drum Dumper for Hoisting - Assistant device to turn the drum over reduced the operation force (70% cut) so that the drum is kept stable, safety and the certainty of work is guaranteed.
Taiyu

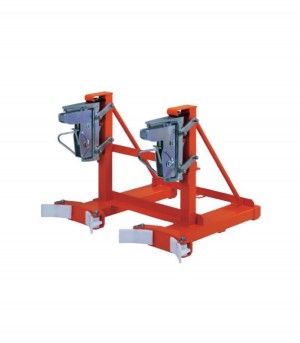

It’s a type of drum handler that is designed to easily slide into a forklift truck. This type of drum handler is used to efficiently and safely load and unload different sizes and types of drums. Once inserted into...
