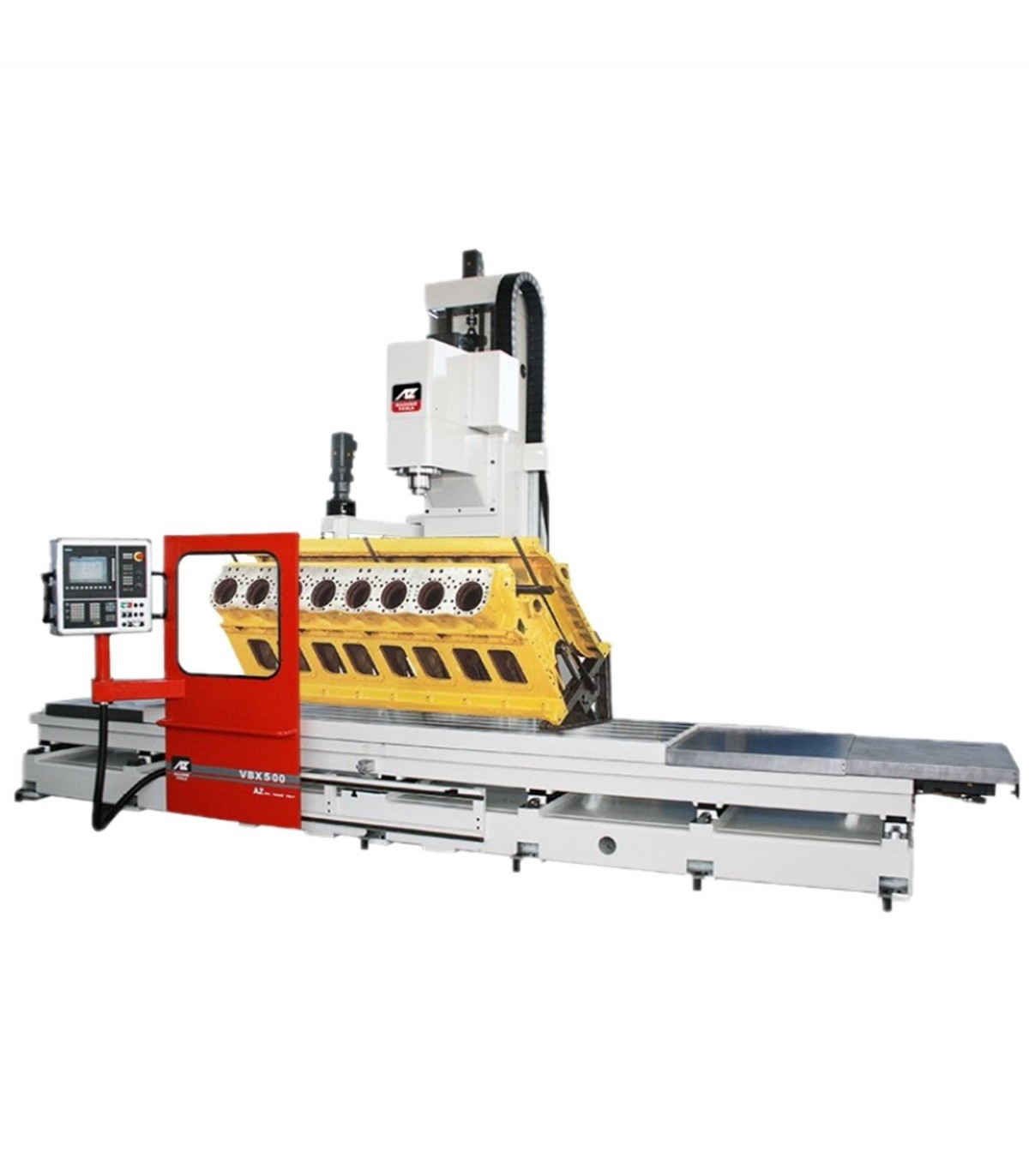

CNC Vertical Boring-Milling Machine VBX500
Brand:
AZ Spa

CNC Vertical Boring-Milling Machine VBX500

Brand:
AZ Spa
Align Boring Machine BAC
CNC Vertical Boring-Milling Machine VBX300
Model: VBX500

CNC Customized Programming and 3-Axis movement (precision ballscrews - infinitely variable Siemens servo motors). Automatic tool changes with storage for 4 tools. Complete automatic work cycle. Wireless probing system for automatic centering and measuring. Saves all settings in memory.

  • CNC ISO professional programming
  • Customized programming
  • 3 axis movement by precision ballscrews and brushless servomotors
  • Automatic changing of tools with storage for 4 tools
  • Complete automatic work cycle
  • Large connecting rod machining and grinding. Special heavy duty xture for boring and grinding very large and heavy connecting rods up to 500 mm of diameter
Make an Enquiry
Add to wishlist
Share
விவரம்

Boring capacity (min. and max. dia.) : 30-500mm

Horizontal travel Z axis : 3500mm

Vertical spindle travel X axis : 850mm

Travel in/out X axis : 300

Spindle rotation : 40-400rpm

Head movement : 0-3000mm/min

Table movement  : 0-3000mm/min

Spindle rotation : 5,5kW

Head movement (working and rapid feed) : 20Nm

Table movement : 25Nm

Product Details
VBX500

Data sheet

Model
VBX500
