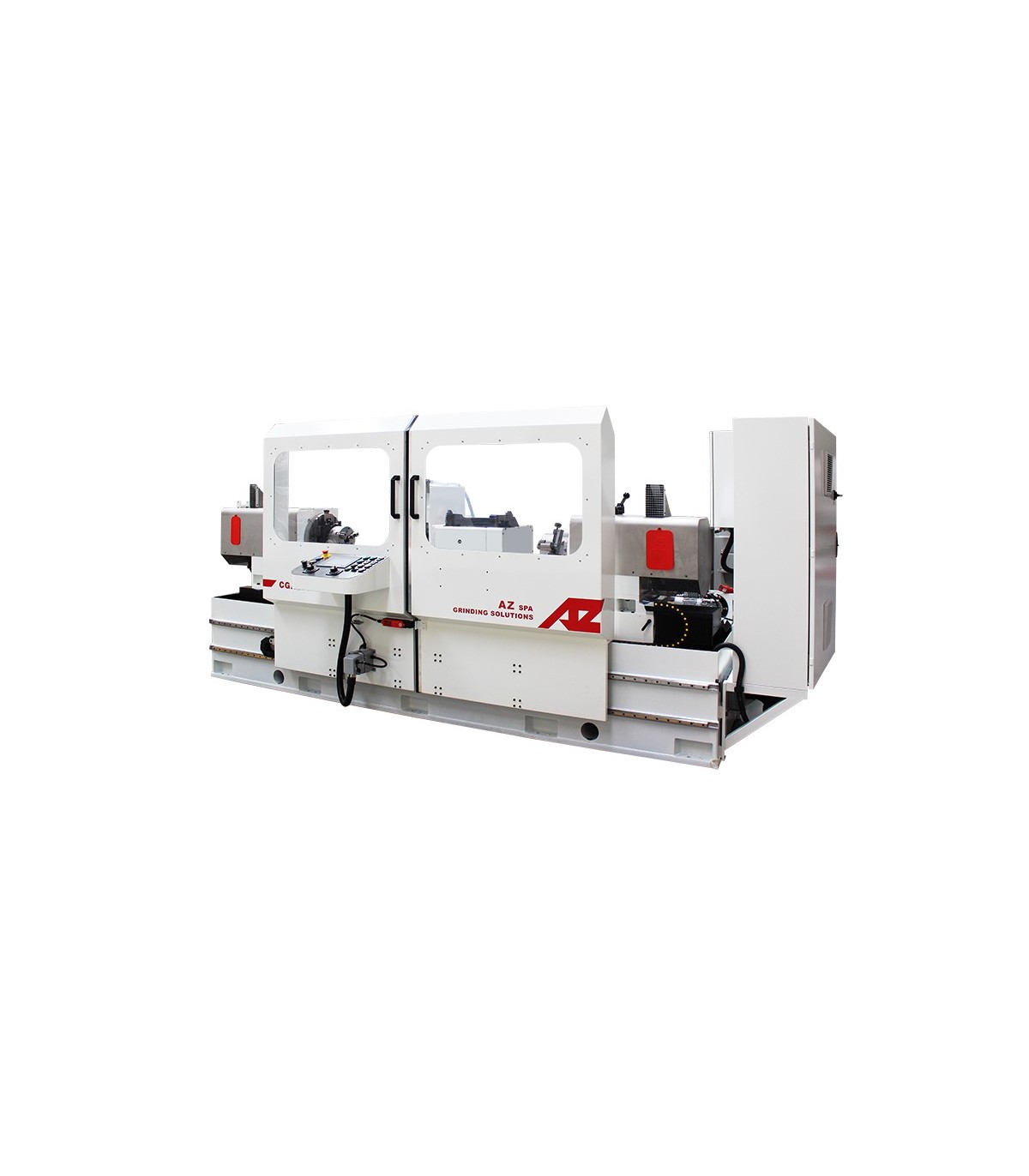

AZ Spa Crankshafts Grinding Machine CGA270

CGA and CGX models move the grinding head on the base, this solution permit to reduce the overhall machine dimensions. The workpiece is clamped by headstock fixed on the base and tailstock moving on table support by linear guideways. Grinding wheel carriage is movable on X and Z axes by ballscrew and guideways, in the CGX model the movement and positioning of X and Z axes are made by linear encoder. Machine control system by electronic encoders and multiple working functions: plunge grinding, shoulders grinding, cylindrical grinding, automatic dressing cycle. The CGX model has wheel balancing system, touch probe for workpiece positioning, gap control system and in-process measurement. New safety guard system which allows operator easy access to the working zone.
