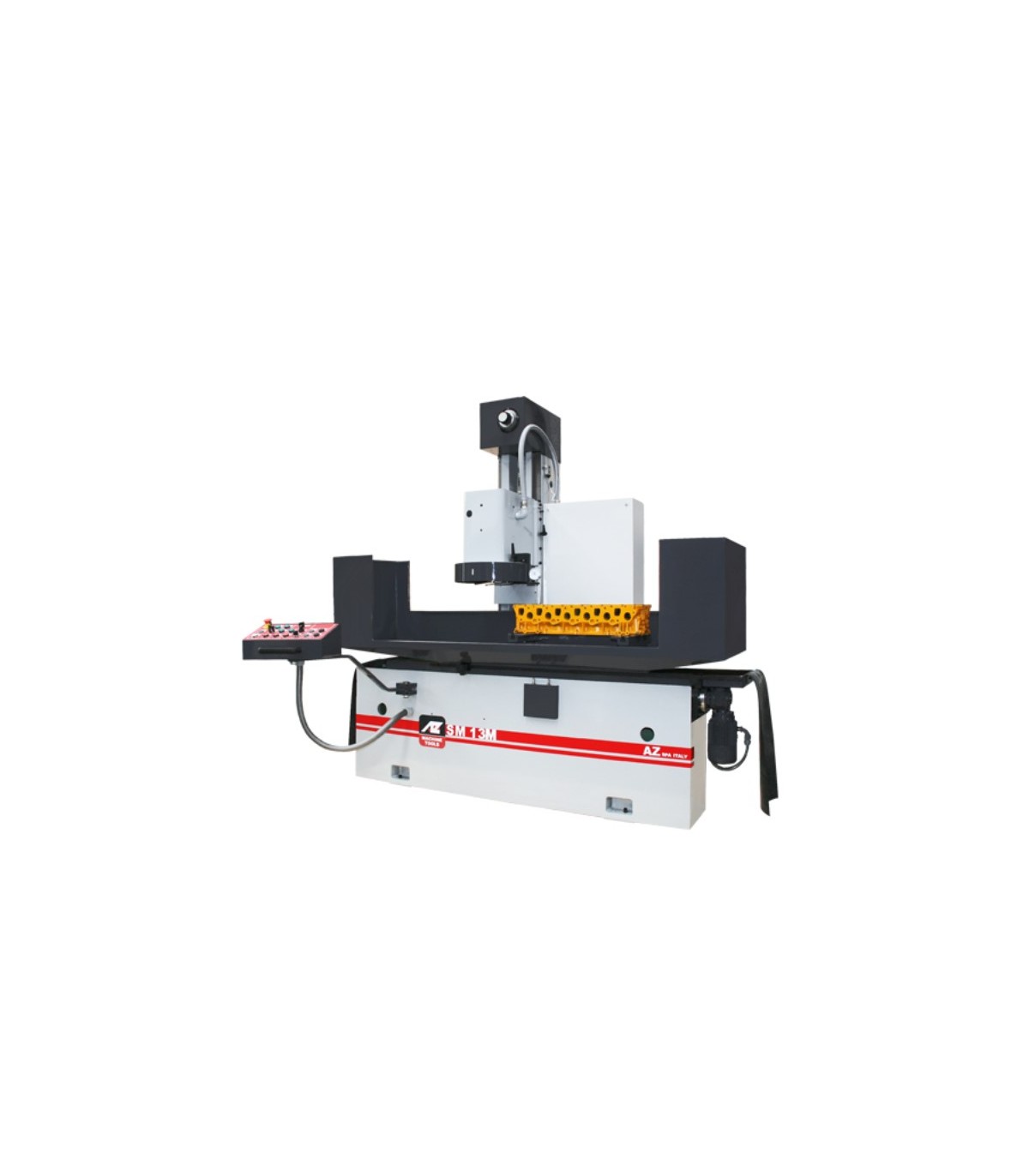

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact surface finish desired for the wide range of gasket materials used. A power column to help the operator finish the jobs fast. Rugged cast iron base with precision ground and matched ways. Flat and "V" way construction assures accurate parallelism and side-to-side tracking. Cast iron "box" type columns with dove tail ways and precision spindle bearings make the SM Series durable and accurate machines.
Max automatic table traverse : 1300mm
Vertical wheelhead traverse : 515mm
Max grinding width : 340mm
Max milling width with cutting tool : 340mm
Useful table surface : 1100x340mm
Min and max height table to wheel : 110x610mm
Min and max height table to tool or milling cutter : 100-600mm
Distance from column to table C/L : 250mm
Segmental wheel diameter : 350mm
CBN milling head (optional) : 350mm
