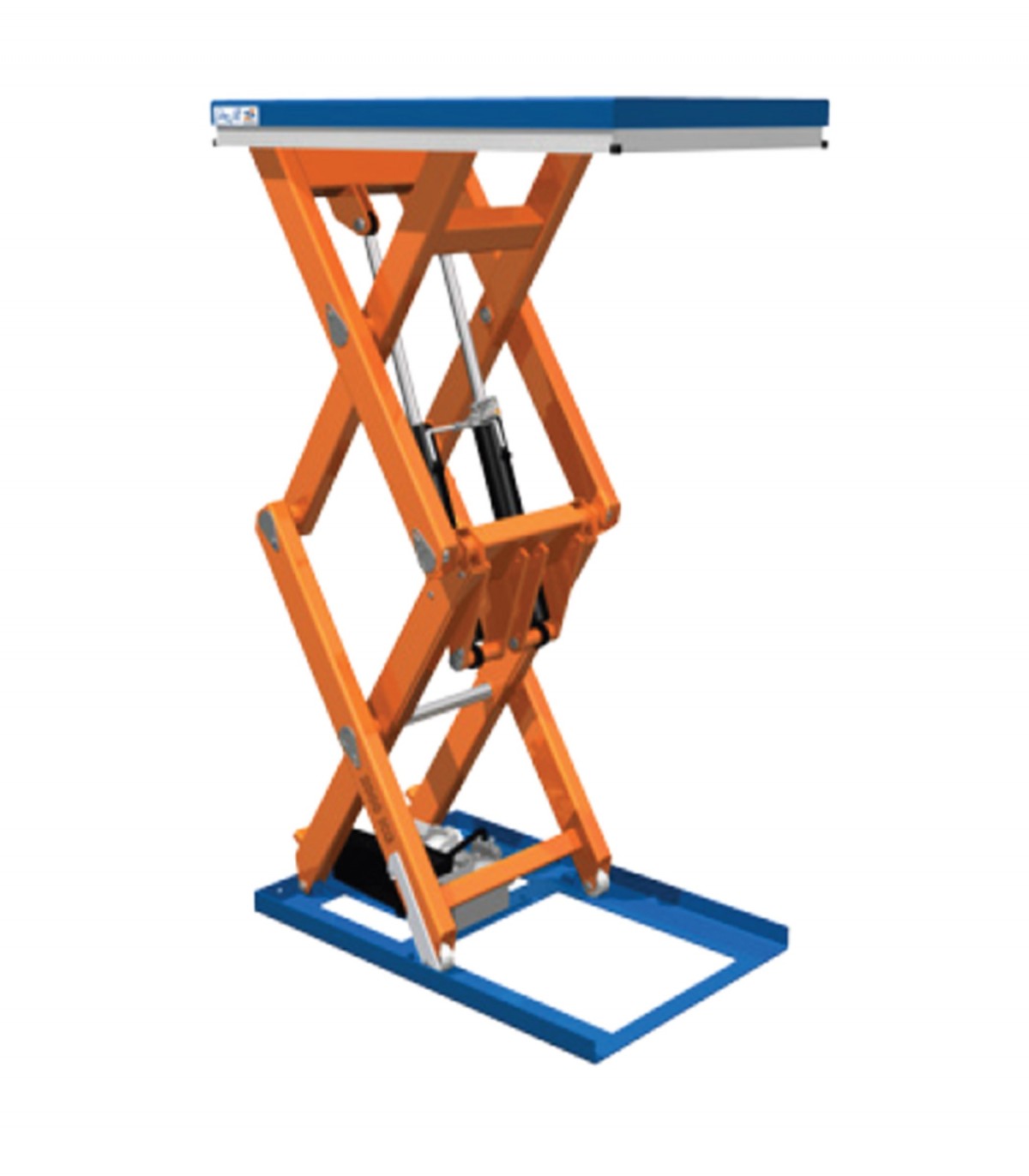

Model: TFD 4000

EdmoLift's vertical double and triple scissor lift tables can be used as working platforms, pallet stackers, work tables, lifts and lifts for disabled persons, to name a few applications. Compared to a traditional lift solution, EdmoLift's vertical double and triple scissor lift tables provide a rational and cost effective solution.

Make an Enquiry
Add to wishlist
Share
Description

By combining a lifting table with several scissor packages in height, greater lifting heights can be achieved than with single scissors. Vertical double and triple scissor lift tables are used, for example, as work platforms, palletizing devices, assembly tables, lifts, lifts for the disabled and as lift tables between two floors.

Compared to traditional lift solutions, the vertical double and triple scissor lift tables from EdmoLift are extremely rational, cost-effective solutions.

The lifting table TFD 4000 has a load capacity of 4000 kg and a platform size of 5000 x 2400 mm.

Product Details
TFD 4000

Data sheet

Model
TFD 4000
Art. no.
34948
Capacity
4000 kg
Lift stroke
5900 mm
Closed height
980 mm
Length
5000 mm
Width
2400 mm
Lifting time
155 sec
kW
5,50 kW
Resources
TFD 4000
Download (1.27M)
