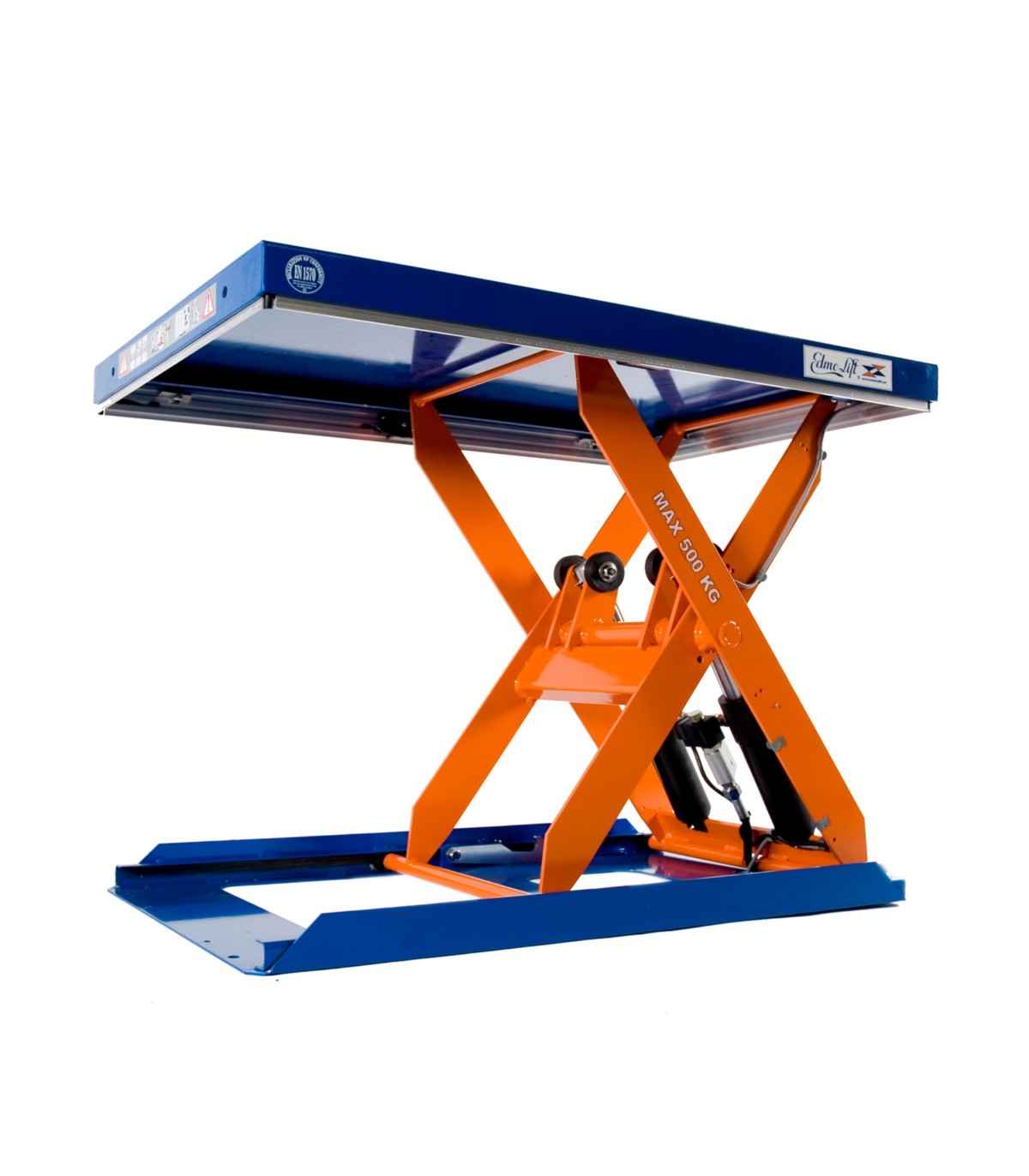

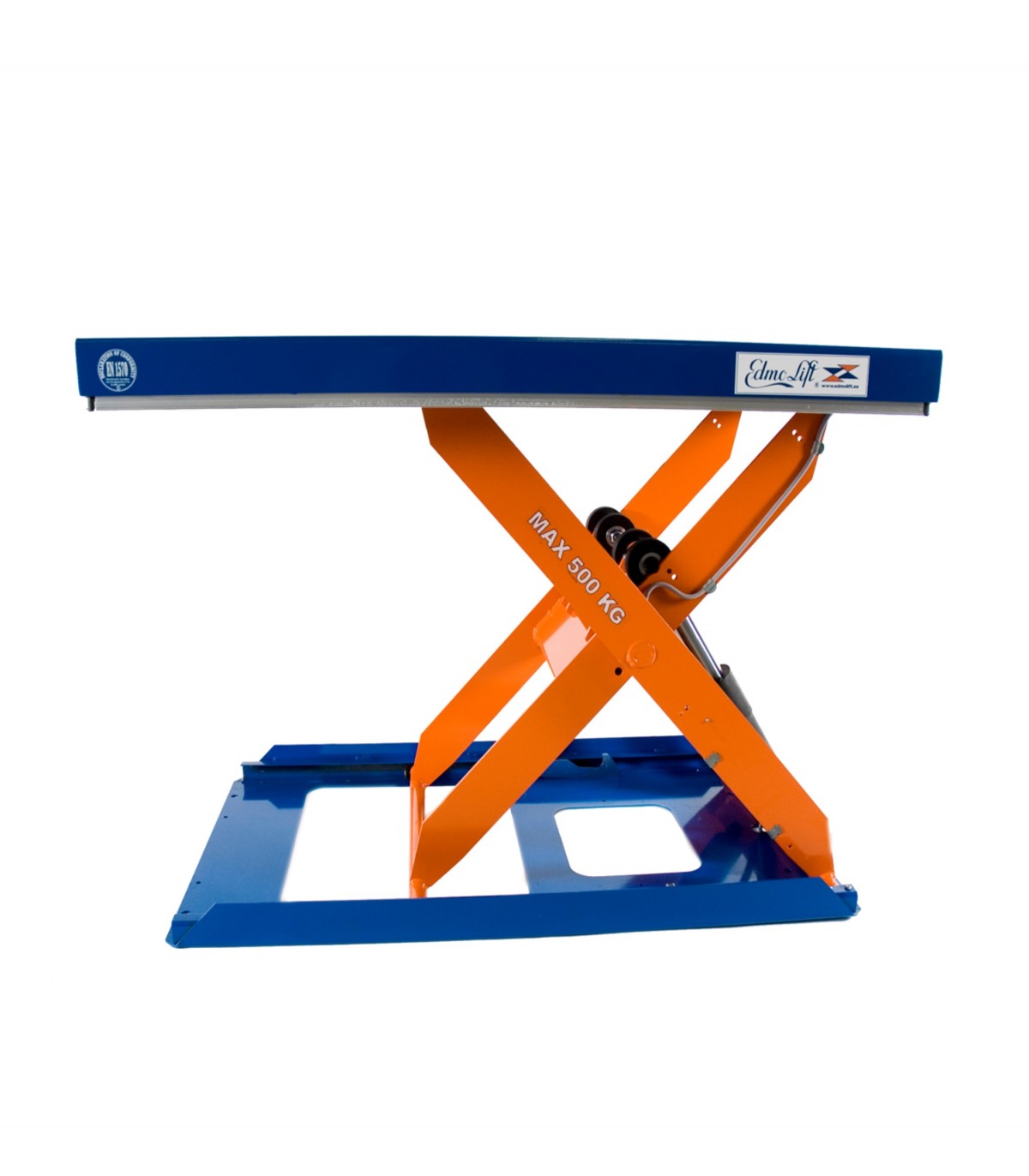

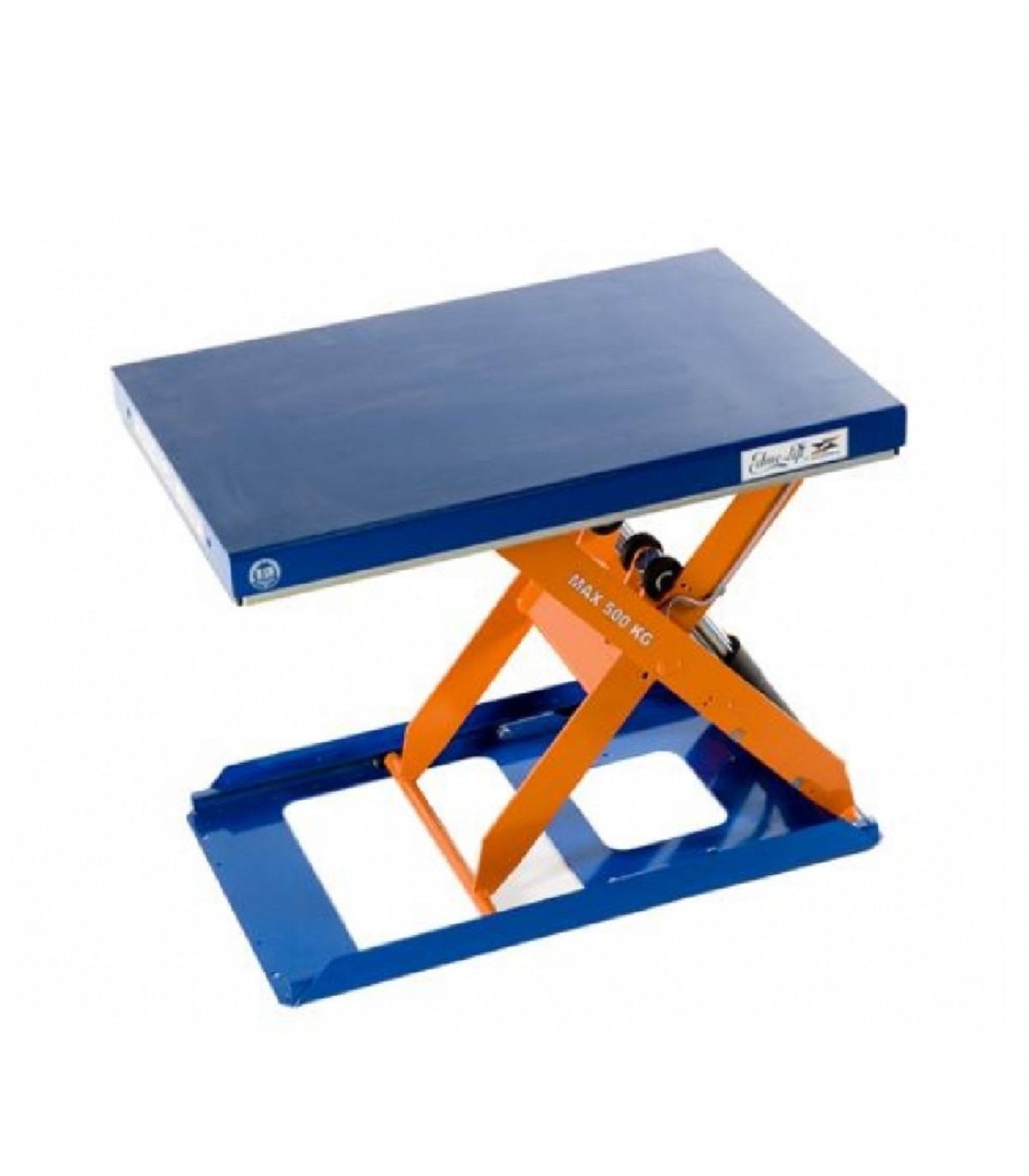

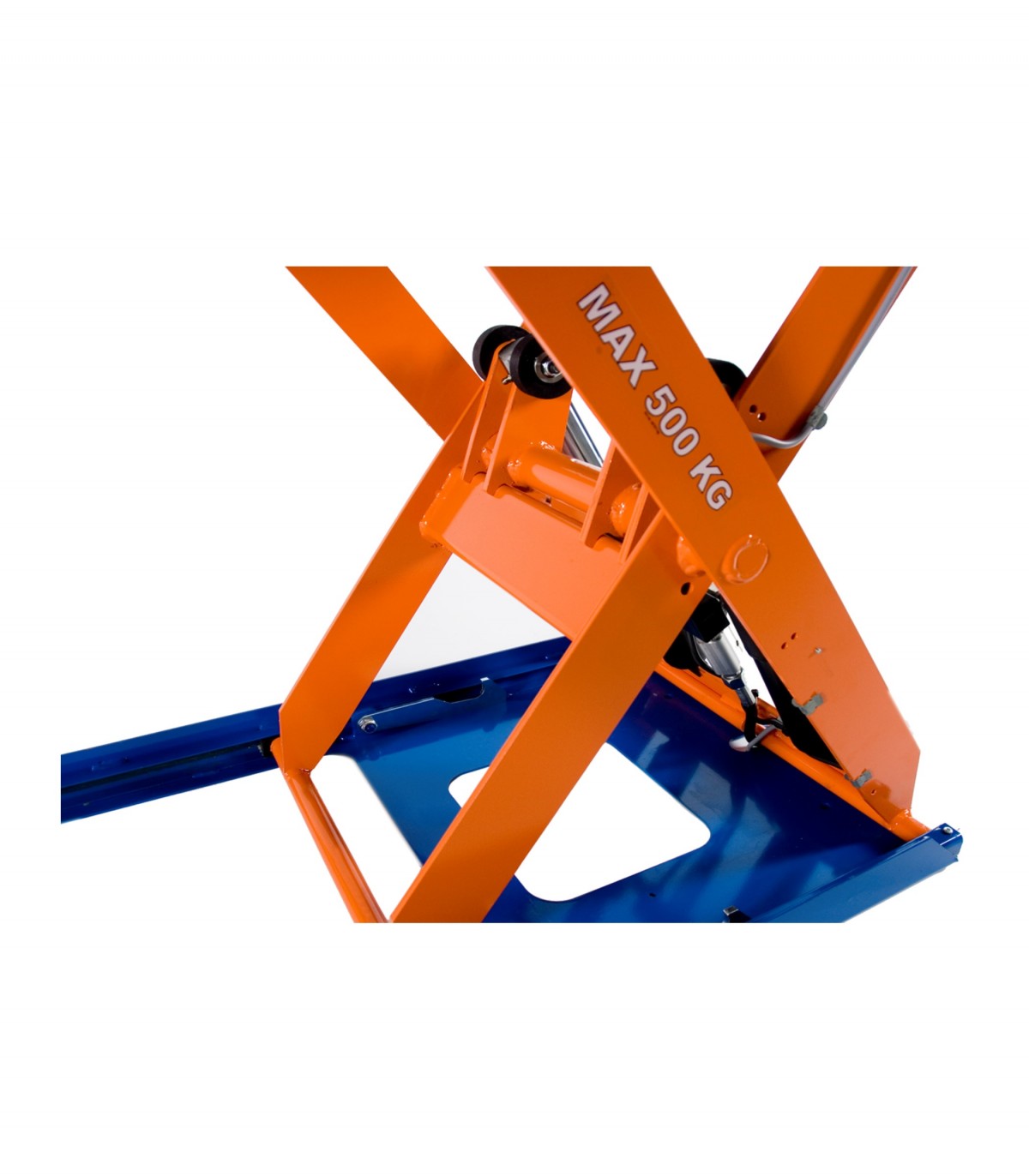

Model: TCR 500

EdmoLift's scissor lift table with a low profile has the functionality level equivalent to that of a conventional scissor lift table from EdmoLift. By taking on a new approach in design and construction, while the manufacturing process is carried out in the high-tech production facility and based upon laser technology, the scissor lift table with a low profile from EdmoLift is superior to previous models and one of its kind on the lift table market.

Make an Enquiry
Add to wishlist
Share
Description
  • Scissor lift table with a low profile has a load capacity of maximum 2000 kg
  • Scissor lift table with a low profile has a length ranging from 900 mm to 1500 mm for the standard design. Available with U- or E-shaped or solid lift table
  • New generation with 100 mm shorter lift table but with 100 mm extra lift height
  • Quick lifting
  • Lifting eye bolts in the lift table base frame for more flexible transportation and installation
  • Complies with European safety standard EN 1570-1 – CE certified
  • 24 V DC control unit and operating device with deadman’s switch
  • IP54 approved electrical system
  • Safety spacing between all moving parts of the lift table
  • Overload protection
  • Adjustable trap prevention safety trip bars on all four sides of the platform
  • The scissor lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance
  • Maintenance-free bearing surface
  • PLC control for easy adaptation to individual requirements
Product Details
TCR 500

Data sheet

Model
TCR 500
Art. no.
34919
Capacity
500 kg
Lift stroke
630 mm
Closed height
80 mm
Length
900 mm
Width
900 mm
Lifting time
9 sec
kW
0,75 kW
Loading area width
600 mm
Loading area length
945 mm
