Edmolift Horizontal Double Scissor Lift Table TMH 6000

Brand:
Model: TMH 6000

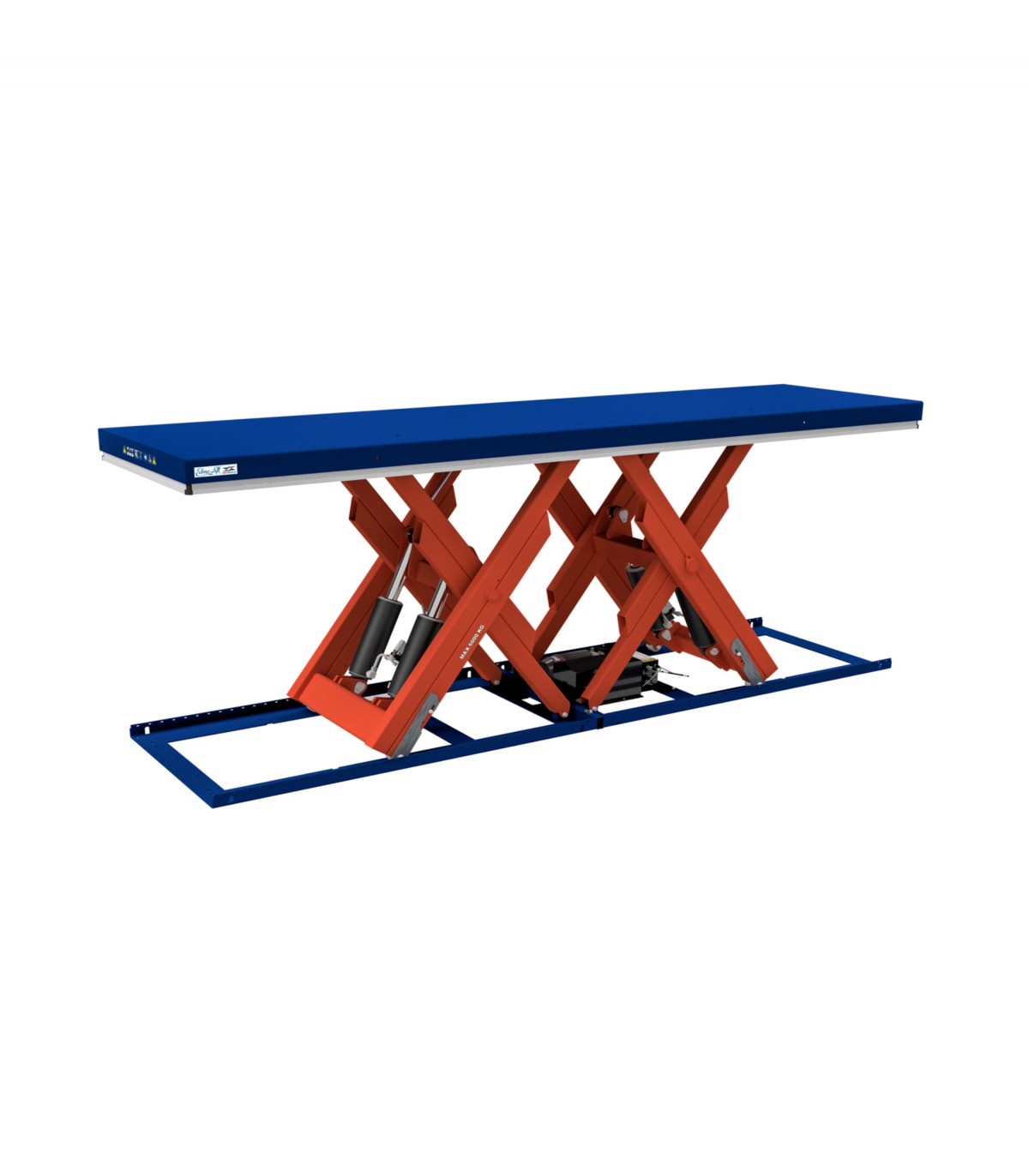

The horizontal double scissor lift table by EdmoLift is the solution you need to handle goods that are both heavy and long. The lift platform is equipped with a combination of two pairs of EdmoLift scissors to obtain the desired lift range and length of the scissor lift table. The lift maneuvers of the two pairs of scissors are mechanically controlled to achieve a parallel lift operation.

Add to wishlist
Description
  • Scissor lift table load capacity - max 10 000 kg
  • Lift table platform length from 2600 mm to 6200 mm as a standard model
  • Comprehensive program of accessories and possibilities for customizing the scissor lift tables
  • Complies with European safety standard EN 1570-1 - CE certified
  • 24 V DC control unit and operating device with deadman's switch
  • IP54 approved electrical system
  • Safety spacing between all moving parts of the lift table
  • Overload protection
  • Adjustable trap prevention safety trip bars on all four sides of the platform
  • The lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance
  • Maintenance-free bearing surface
  • PLC control with possibility to program various functions is included for the standard model. PLC control enables customization for specific requirements
Product Details
TMH 6000

Data sheet

Model
TMH 3000
Art. no.
33176
Capacity
6000 kg
Lift stroke
1100 mm
Closed height
250 mm
Length
3400 mm
Width
900 mm
Lifting time
55 sec
kW
1,50 kW
