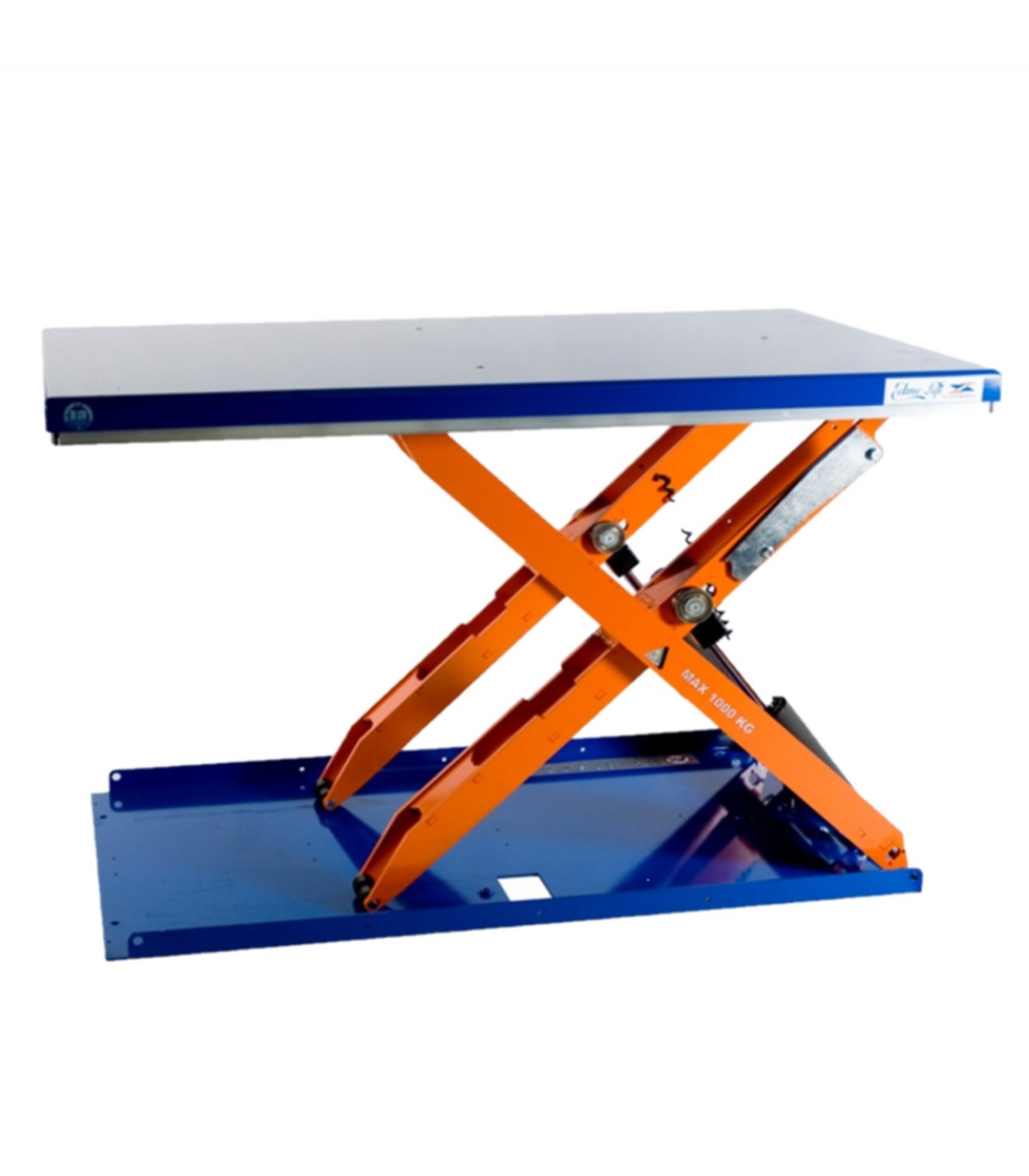

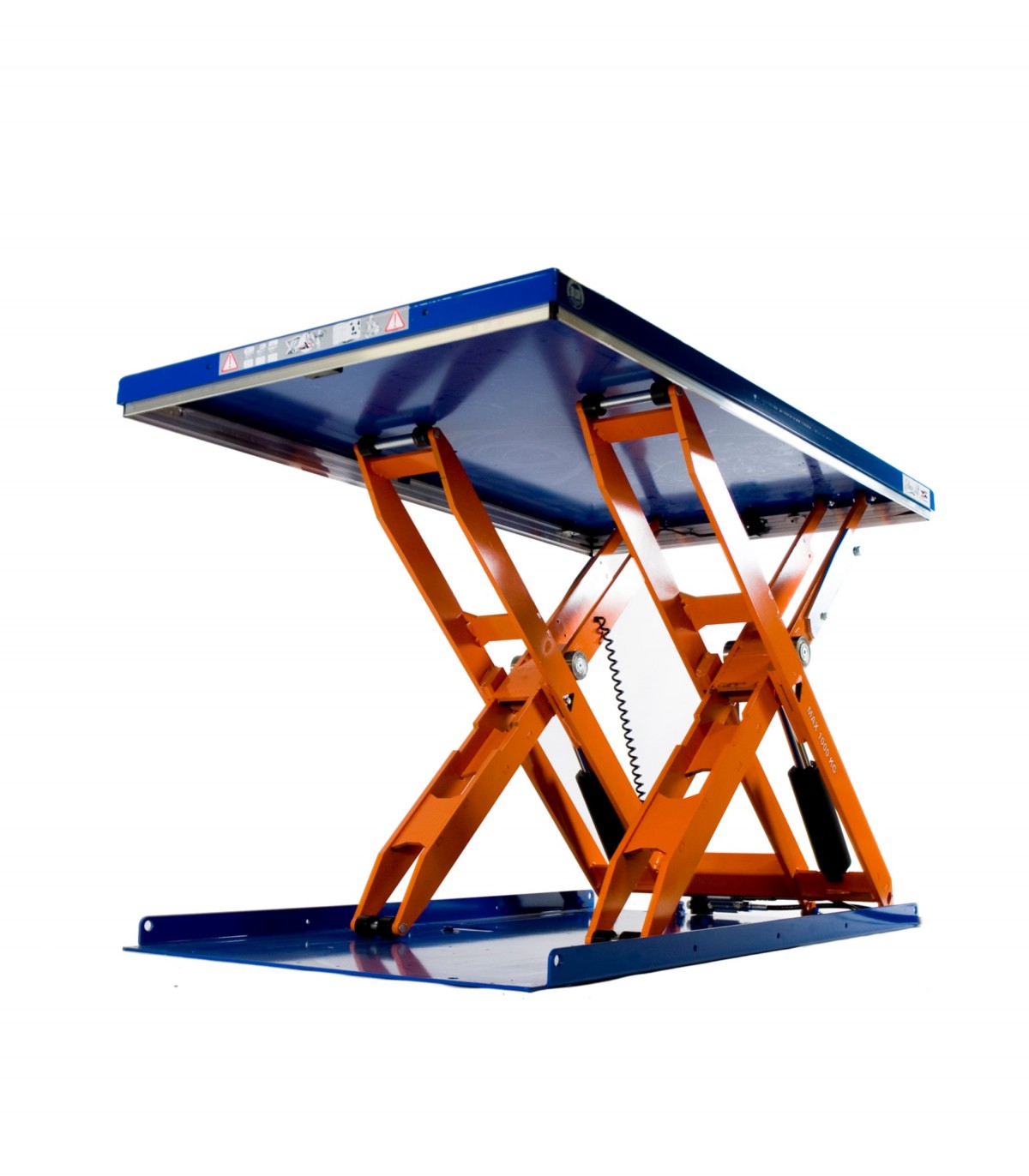

EdmoLift's scissor lift table with a low profile has the functionality level equivalent to that of a conventional scissor lift table from EdmoLift. By taking on a new approach in design and construction, while the manufacturing process is carried out in the high-tech production facility and based upon laser technology, the scissor lift table with a low profile from EdmoLift is superior to previous models and one of its kind on the lift table market.
- Scissor lift table with a low profile has a load capacity of maximum 2000 kg
- Scissor lift table with a low profile has a length ranging from 900 mm to 1500 mm for the standard design. Available with U- or E-shaped or solid lift table
- New generation with 100 mm shorter lift table but with 100 mm extra lift height
- Quick lifting
- Lifting eye bolts in the lift table base frame for more flexible transportation and installation
- Complies with European safety standard EN 1570-1 – CE certified
- 24 V DC control unit and operating device with deadman’s switch
- IP54 approved electrical system
- Safety spacing between all moving parts of the lift table
- Overload protection
- Adjustable trap prevention safety trip bars on all four sides of the platform

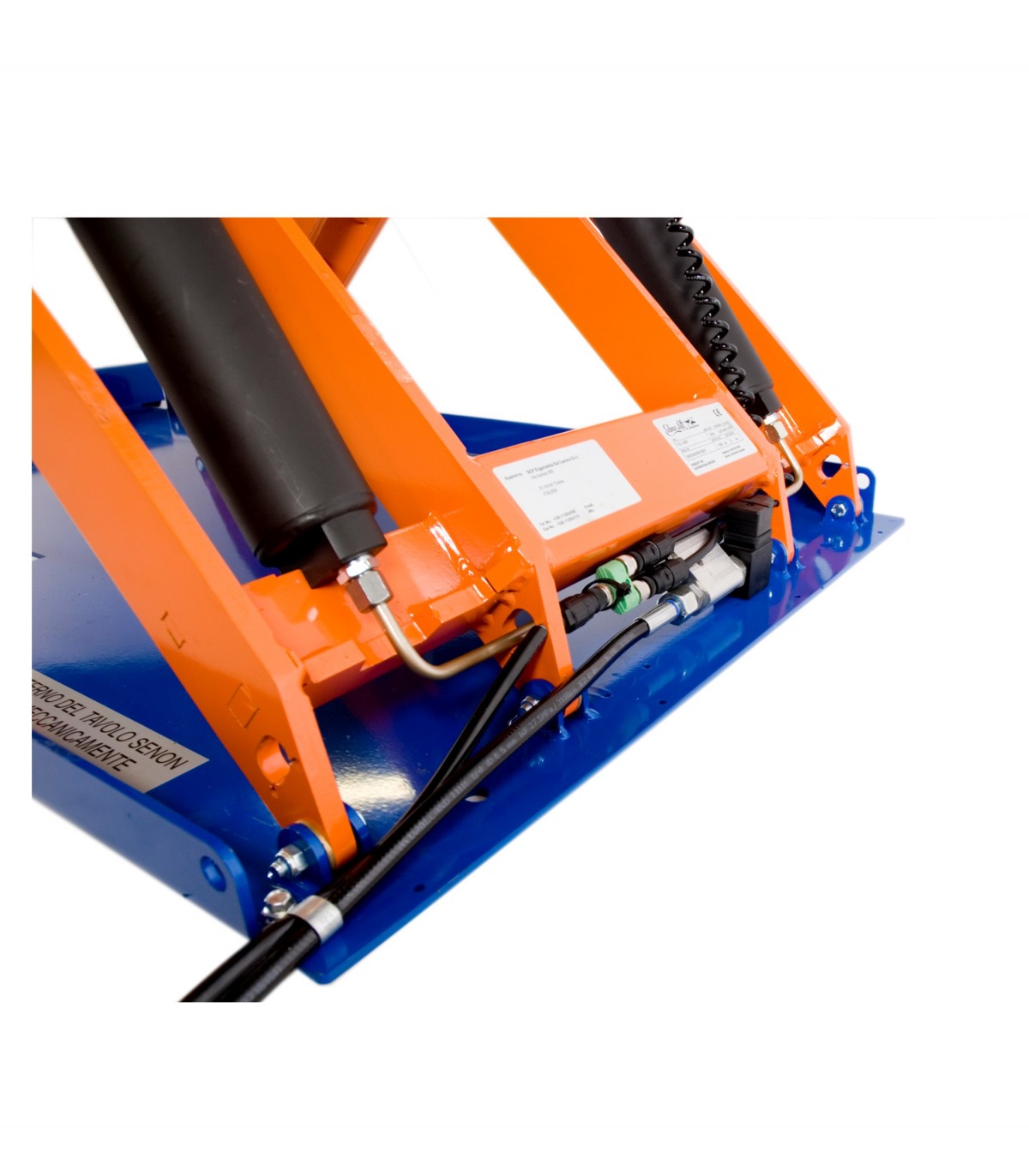

- The scissor lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance
- Maintenance-free bearing surface
- PLC control for easy adaptation to individual requirements
Data sheet
- Model
- TCL 1000
- Art. no.
- 601234
- Capacity
- 1000 kg
- Lift stroke
- 820 mm
- Closed height

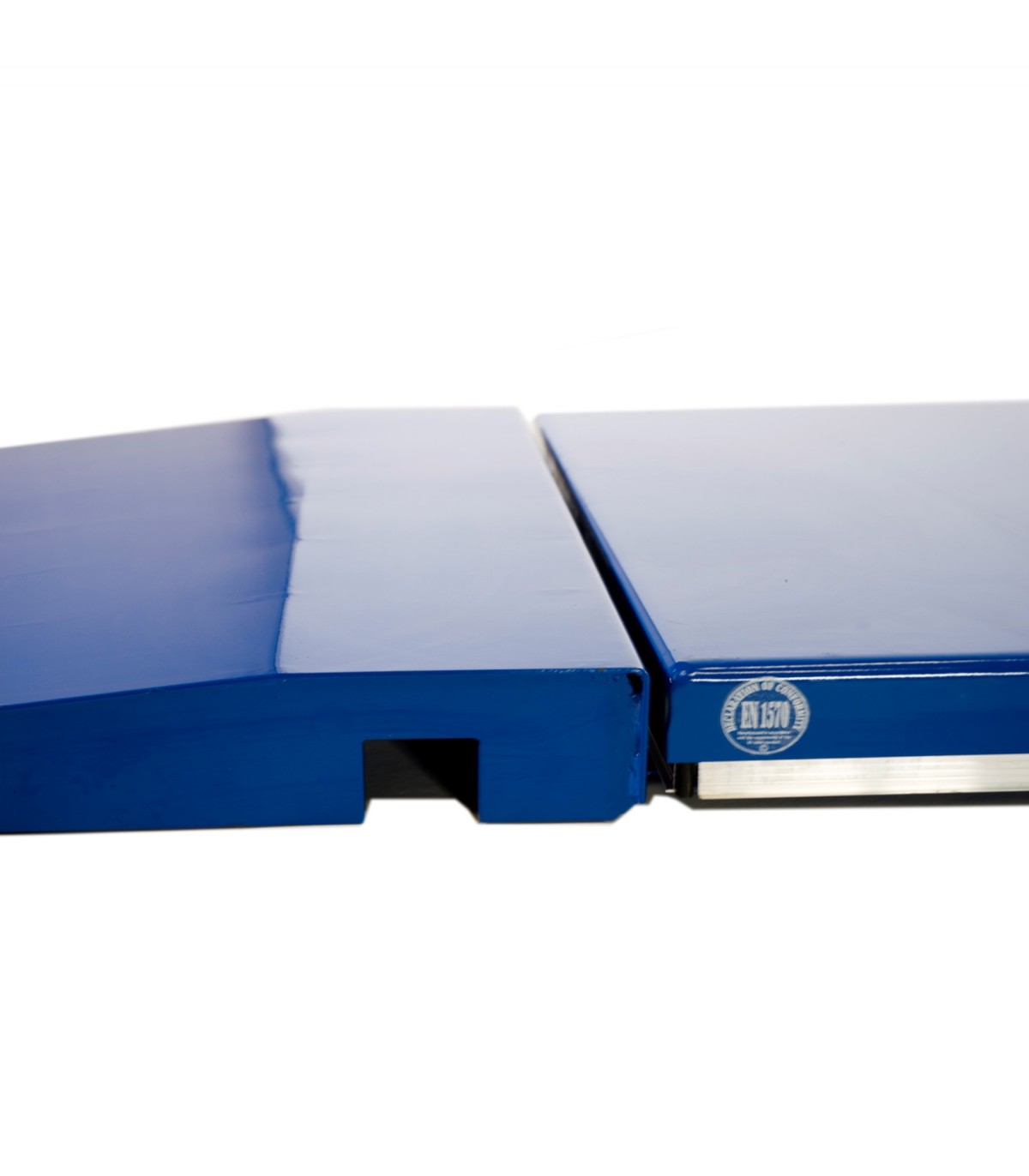

- 80 mm
- Length
- 1350 mm
- Width
- 800 mm
- Lifting time
- 13 sec
- kW
- 0,75 kW
- Loading area width
- 600 mm
- Loading area length
- 945 mm
