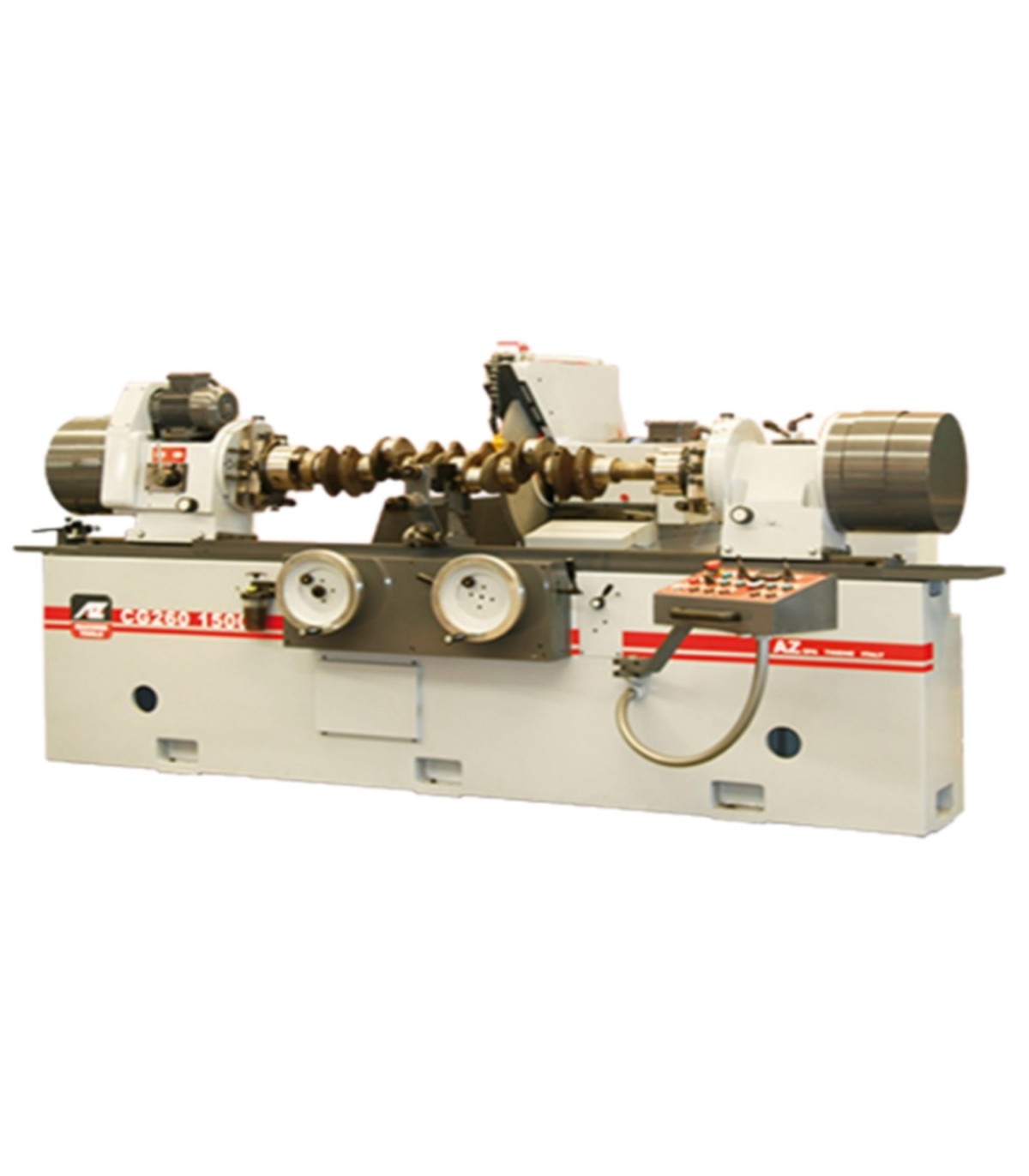

Crankshafts & Cylinders Grinding Machine CG260
Brand:
Model:
CG260

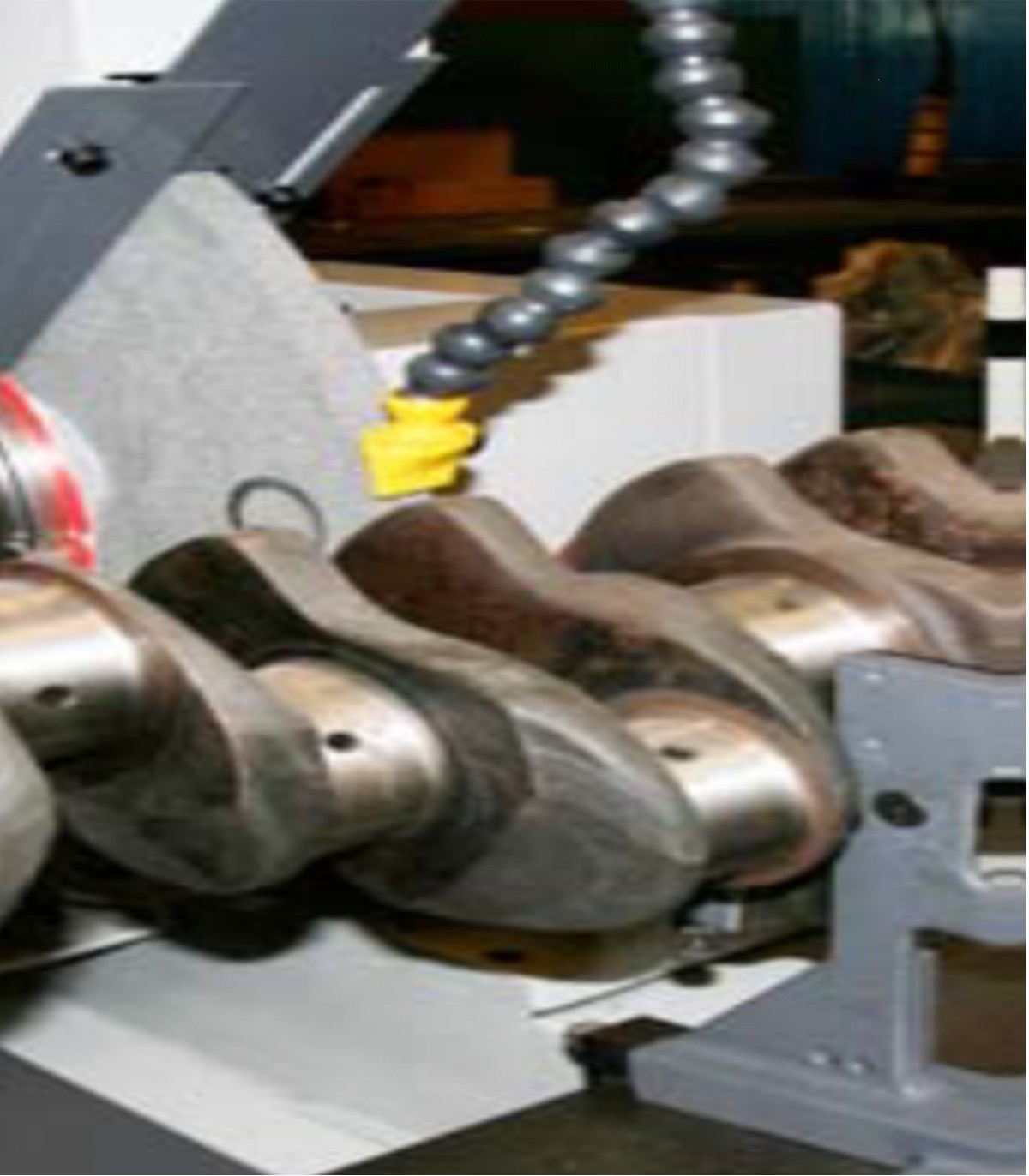

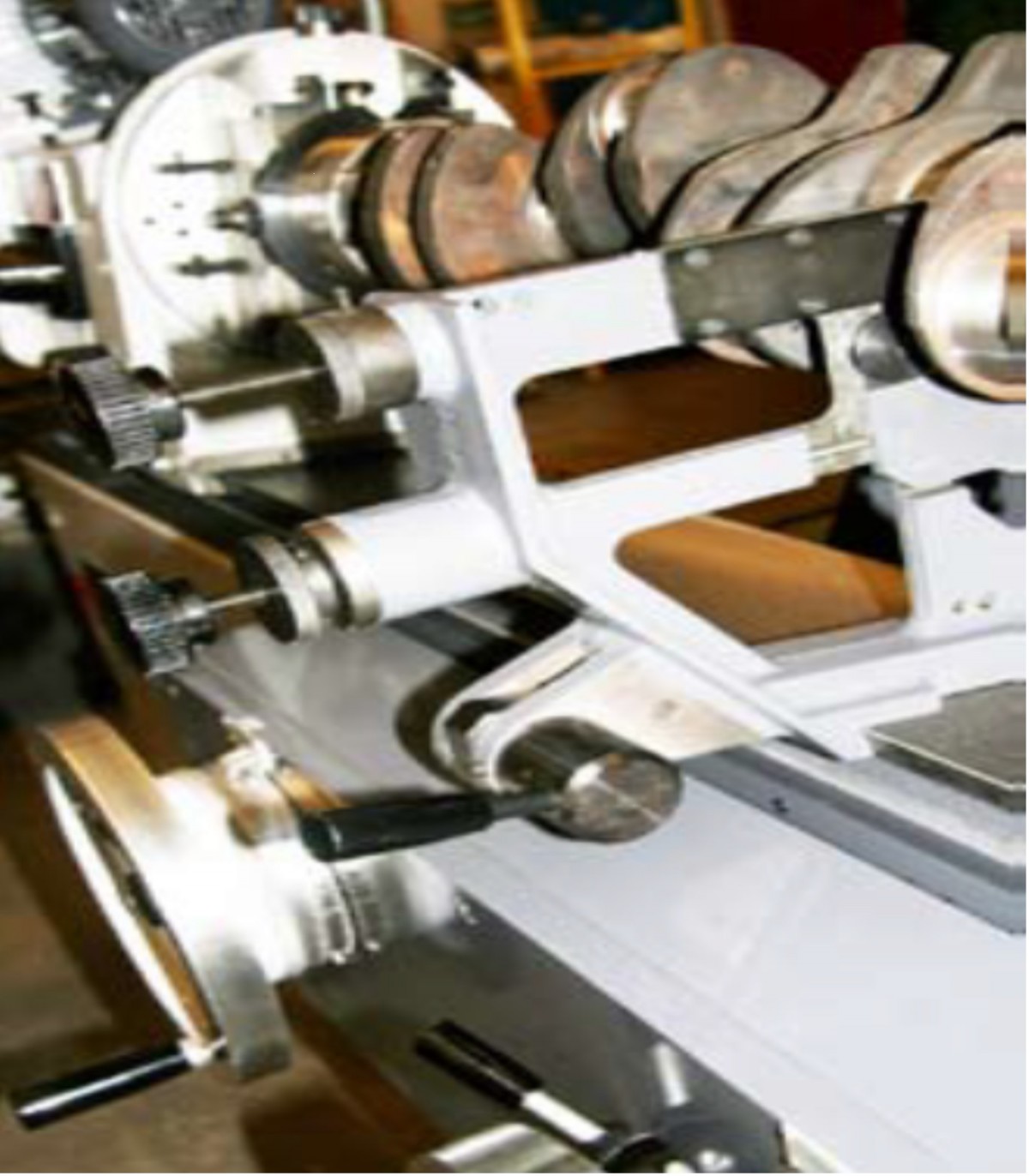

Four indexing locations on the head stock with the air operated index pins make it faster to dial in the crankshaft properly. Easily adjusted outboard counterweights never need to be supplemented by inboard weights. The CG260-1500 are built very heavy with widely spaced ways to assure positive alignment of the wheel head to the table. Moreover, the controls are easier to use. Precision Incremental In-Feed Lever is much easier to use than a hand wheel to achieve the precise desired journal size. The superior accuracy of this machine allows double plunge grinding precisely to the same size leaving no lap line. CG260-1500 provides longe machine life, longer grinding wheel life and greater safety for the operator and machine.
Add to wishlist
- Electronical variable speed of the headstock
- Oil-hydraulic system and coolant system
- Centralized lubricant system
- Low voltage electric controls (24V)
- Air cushion system for head displacement
CG260
Data sheet
- Model
- CG260
- Height of centers
- 260 mm
- Max distance between centers
- 1500 mm
- Swing over table
- 520 mm
- Grinding wheel diameter
- 660 mm
