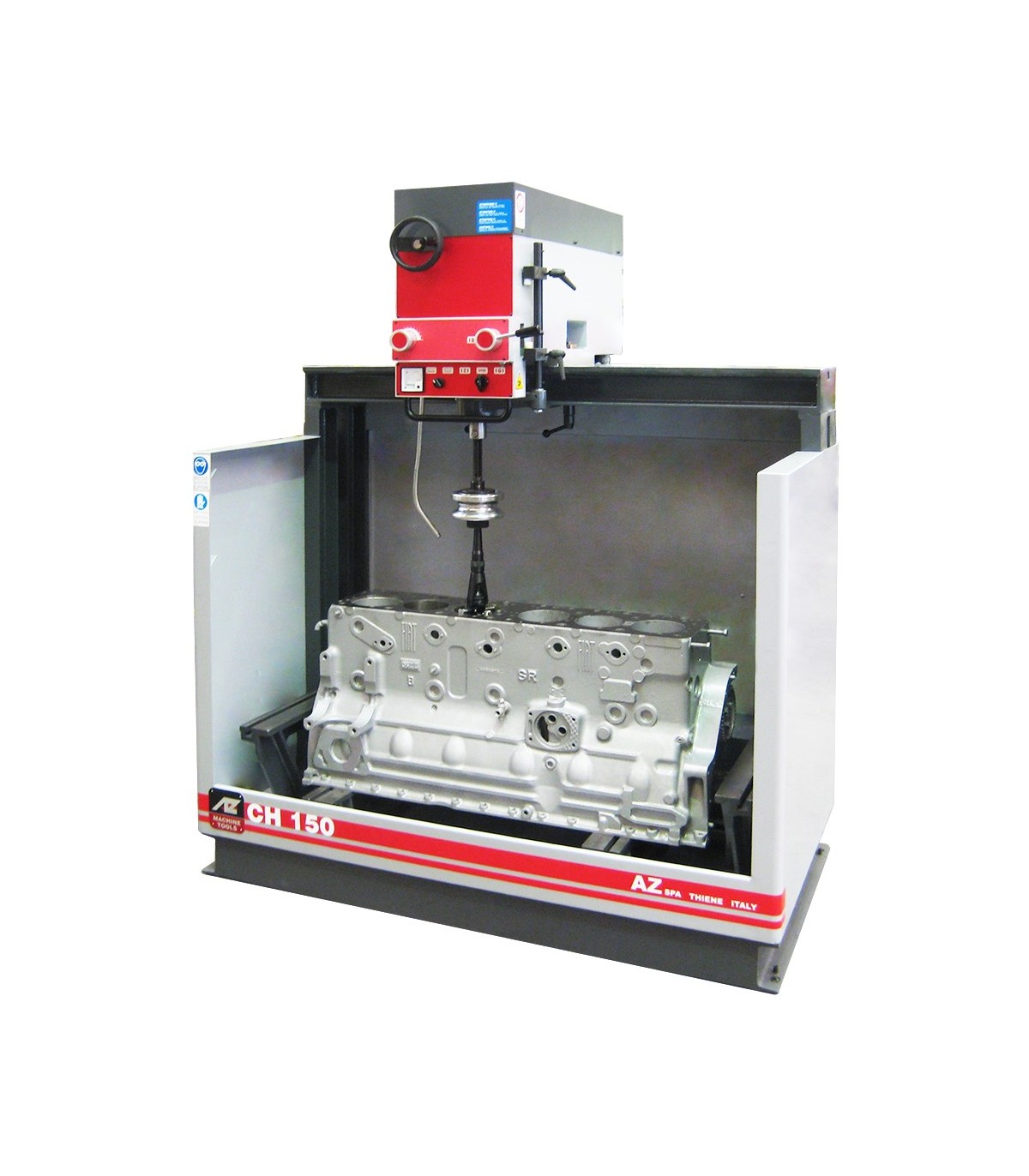

Honing Machine CH150
Brand:
AZ Spa

Honing Machine CH150

Brand:
AZ Spa
Honing Machine CH200
Align Boring Machine BAC
Model: CH150
Make an Enquiry
Add to wishlist
Share
விவரம்

Honing capacity : 25-180mm

Max. honing depth  : 350mm

Stroke of the honer : 300mm

Max. length admitted for the block : 1420mm

Max workpiece height : 600mm

Spindle rotation speed : 120-320mm

Spindle reciprocating speed (steplessly variable) : 0-20mm/min

Max table inclination  : ±45°

Max head longitudinal travel : 1100mm

Max head trasversal travel : 105mm

Product Details
CH150

Data sheet

Model
CH150
