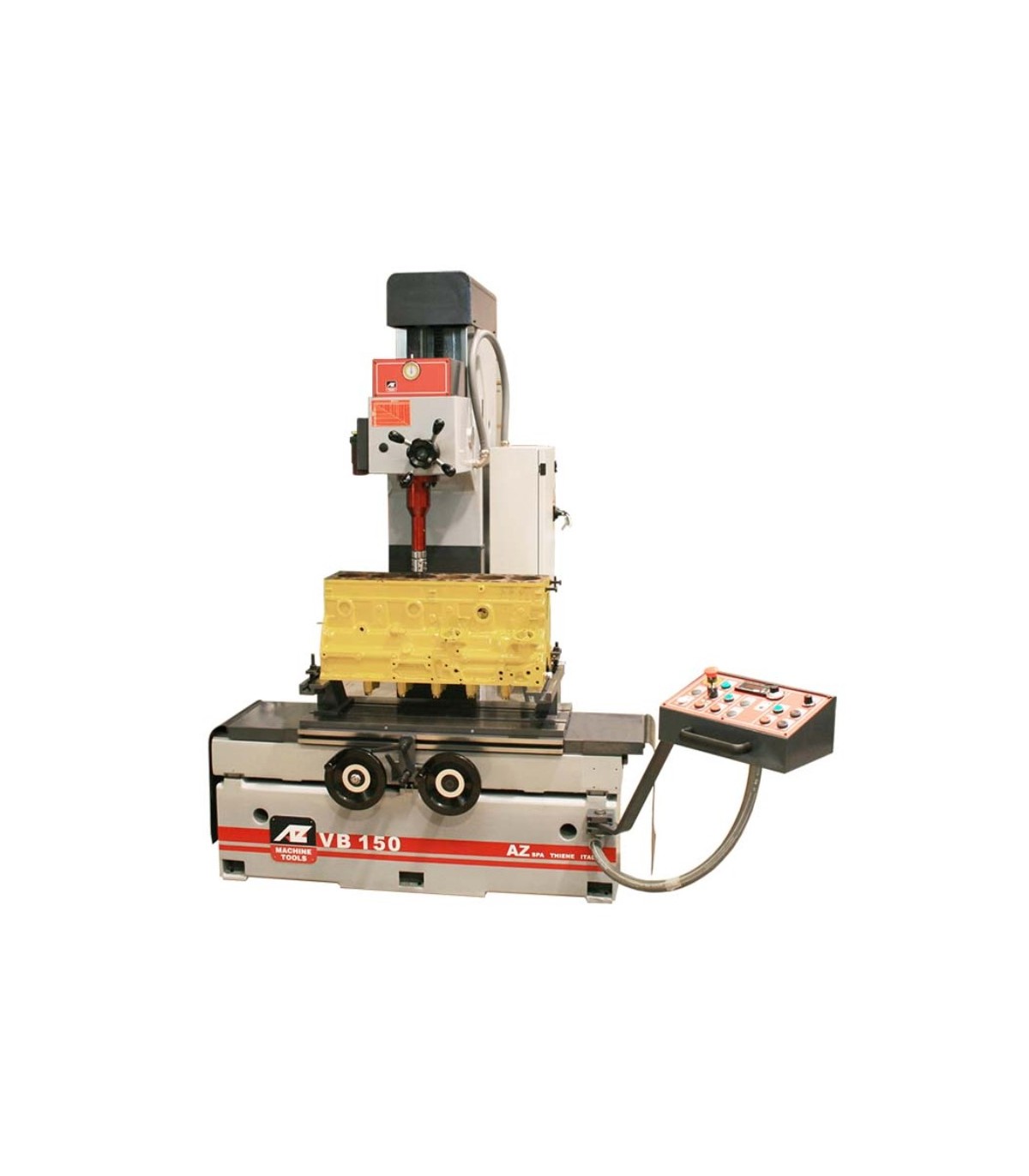

Ideal machining centers for both high performance automotive as well as medium diesel boring and milling.With tooling options allowing a capacity range of 1.3" to 8" the VB is an industrial diesel or high performance automotive machine. Standard equipment includes a 13.5" CBN milling head featuring 2 double sided CBN inserts. The CBN (Polycrystalline Cubic Boron Nitride) tool insert is a circular solid CBN structure that can be rotated and reversed. CBN inserts offer high speed stock removal, excellent finishes, and long economical cutter life. Auto, Diesel, or Motorcycle, the VB Series Machines will bore and mill rapidly and accurately!
Boring range : 30-150mm
Max boring height : 590mm
Max milling width : 340mm
Max milling length : 635mm
Max vertical travel of the head : 590mm
Distance from spindle center to column : 240mm
Table surface : 860x340mm
Max longitudinal travel of table : 810mm
Max traverse travel of table : 60mm
Max distance between head and table : 950mm
Spindle rotation : 900rpm
Head movement : 0-50mm/min
Table movement : 0-100mm/min
