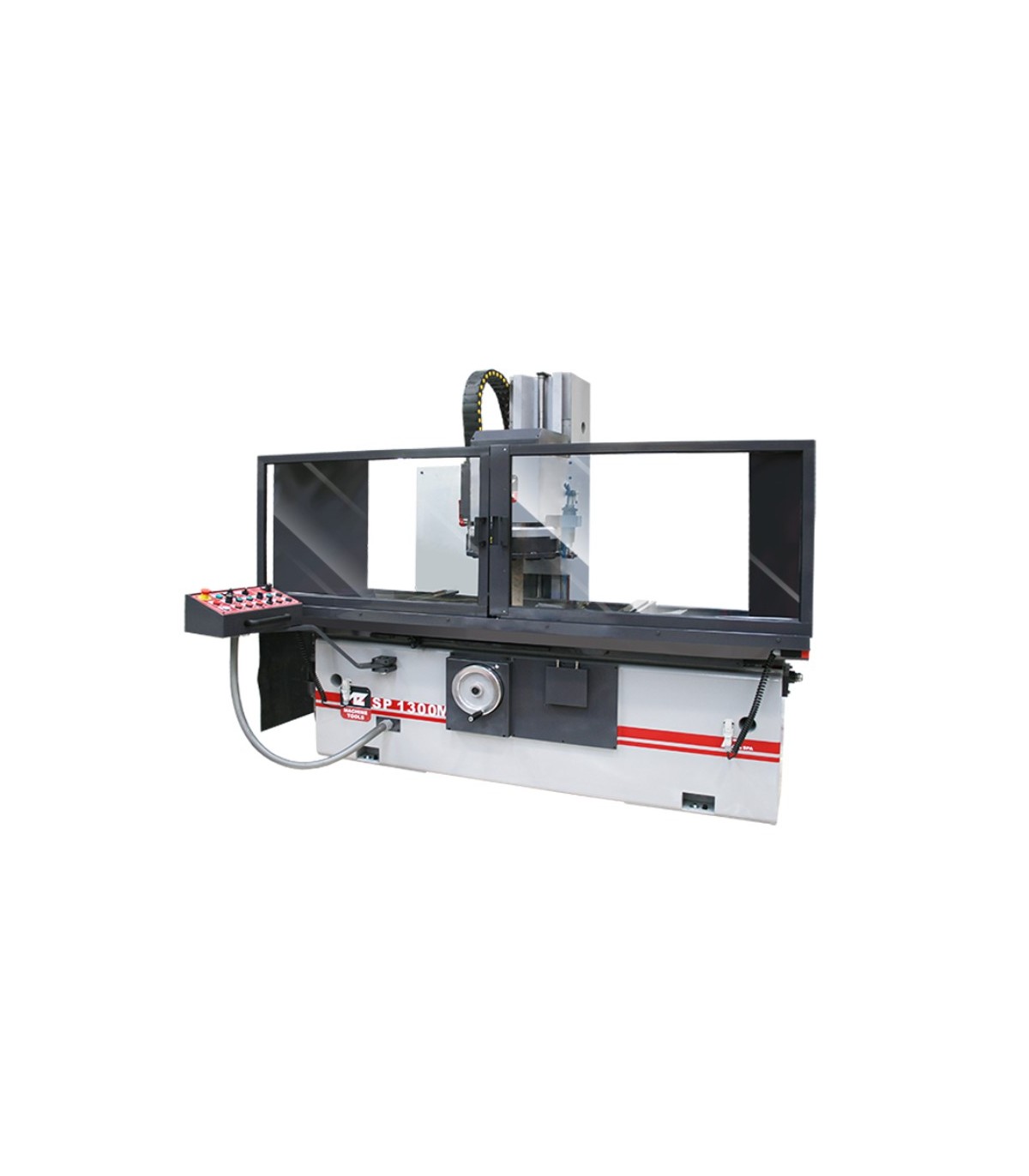

Grinding-Milling Machine SP1300Y

Brand:
Model: SP1300Y

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact surface finish desired for the wide range of gasket materials used. A power column to help the operator finish the jobs fast. Rugged cast iron base with precision ground and matched ways. Flat and "V" way construction assures accurate parallelism and side-to-side tracking. Cast iron "box" type columns with dove tail ways and precision spindle bearings make the SP Series durable and accurate machines.

Add to wishlist
விவரம்

Max automatic table traverse : 1300mm

Vertical wheelhead traverse : 740mm

Max grinding width : 340mm

Max milling width with cutting tool : 340mm

Useful table surface : 1100x340mm

Min and max height table to wheel : 0-740mm

Min and max height table to tool or milling cutter : 0-740mm

Distance from column to table C/L : 260mm

Segmental wheel diameter : 350mm

CBN milling head (optional) : 350mm

Product Details
SP1300Y

Data sheet

Model
SP2000Y
