Brand:

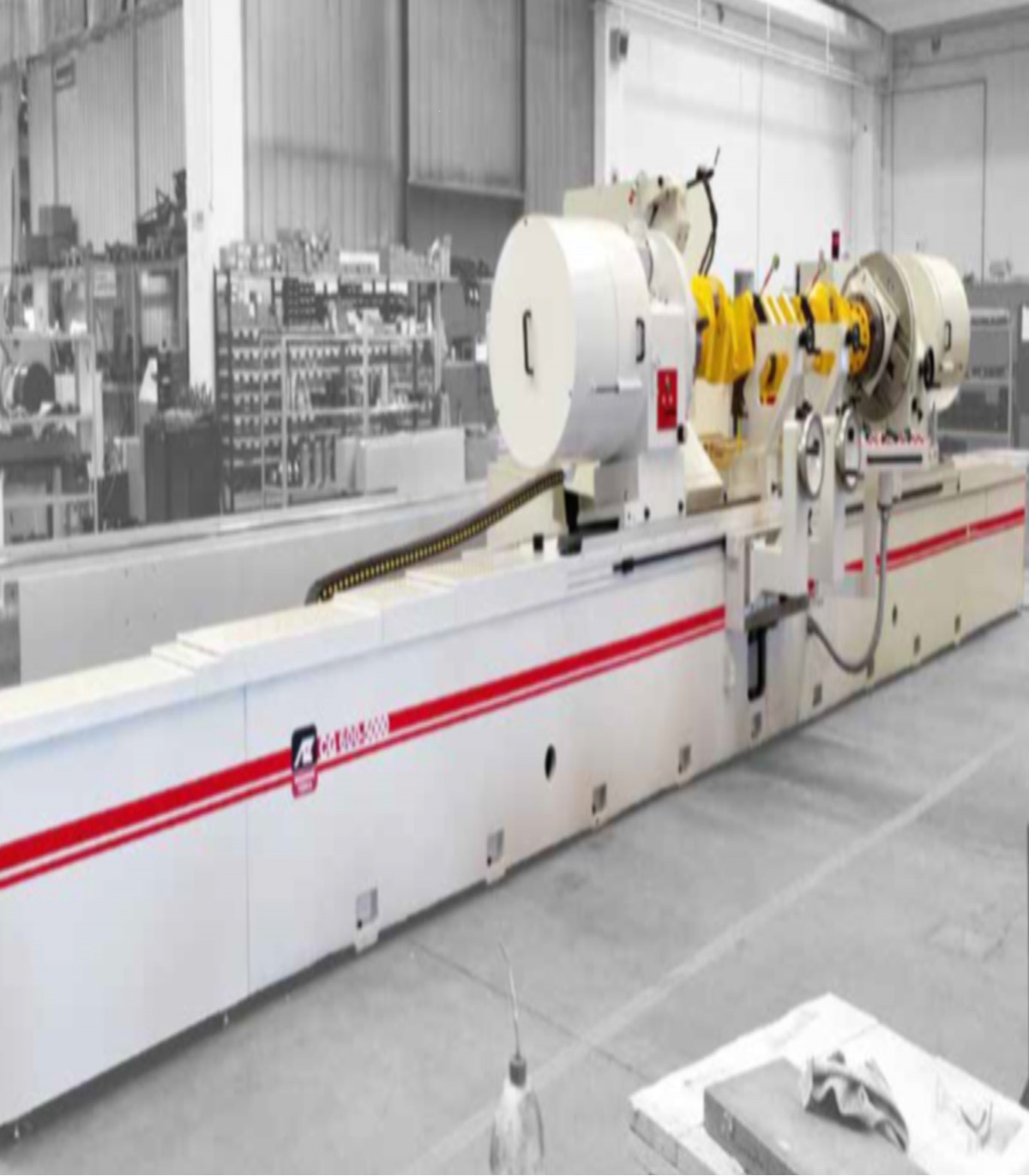

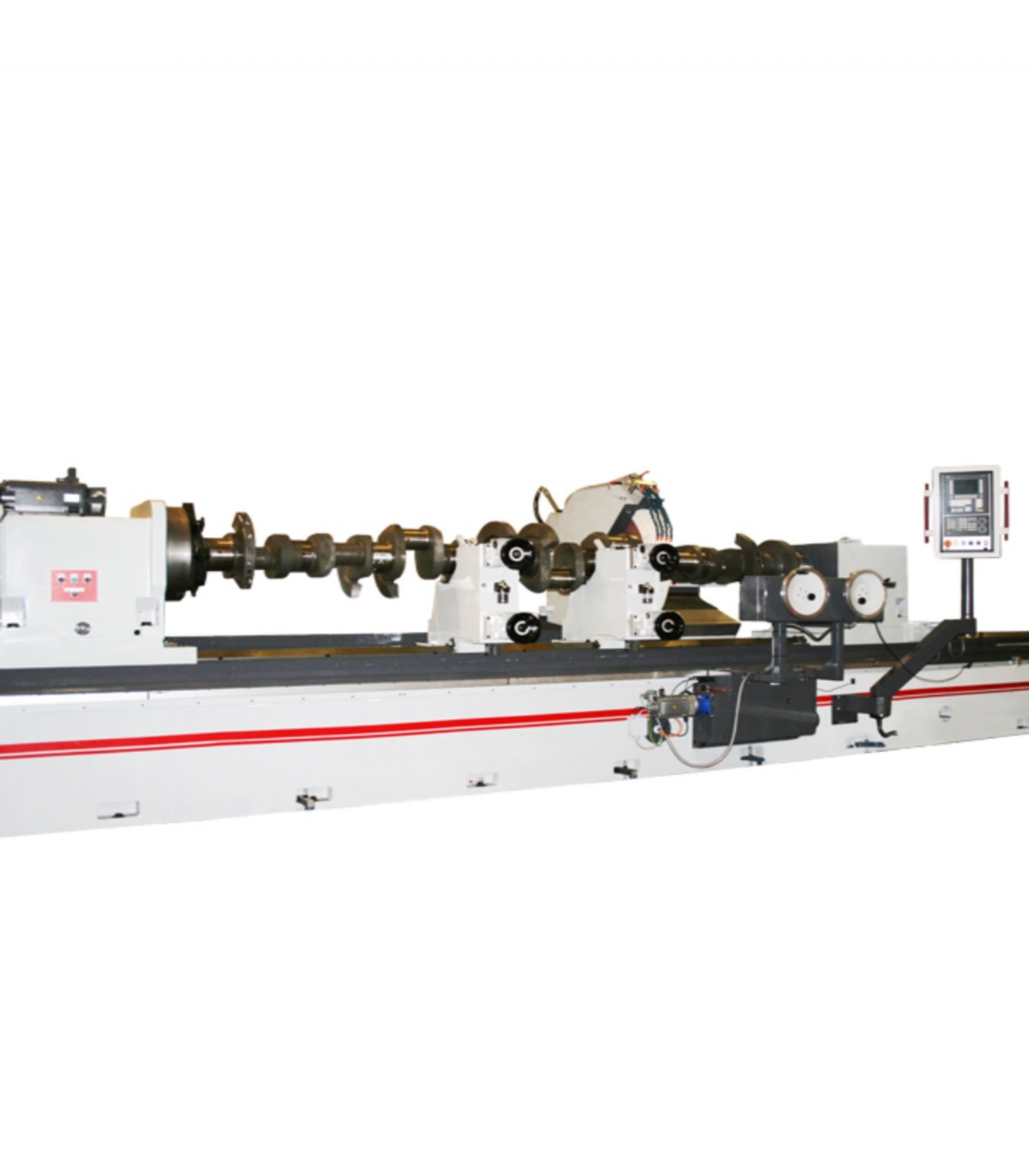

Crankshafts & Cylinders Grinding Machine CG650
Brand:
Model:
CG650
The CG machines are traditional machines suitable for the crankshafts rebuilding up to 6400 mm long. The table moves on bed with “V” and flat guide ways covered with antifriction treatment.
Add to wishlist
Easily adjusted outboard counterweights never need to be supplemented by inboard weights. The CG’s are built very heavy with widely spaced ways to assure positive alignment of the wheelhead to the table. Moreover, the controls are easier to use. Precision Incremental In-Feed Lever is much easier to use than a handwheel to achieve the precise desired journal size. The superior accuracy of this machine allows double plunge grinding precisely to the same size leaving no lap line. CG provides longer machine life, longer grinding wheel life and greater safety for the operator and machine.
CG650
Data sheet
- Model
- CG650
- Height of centers
- 650 mm
- Max distance between centers
- 6400 mm
- Swing over table
- 1300 mm
- Grinding wheel diameter
- 1300 mm
