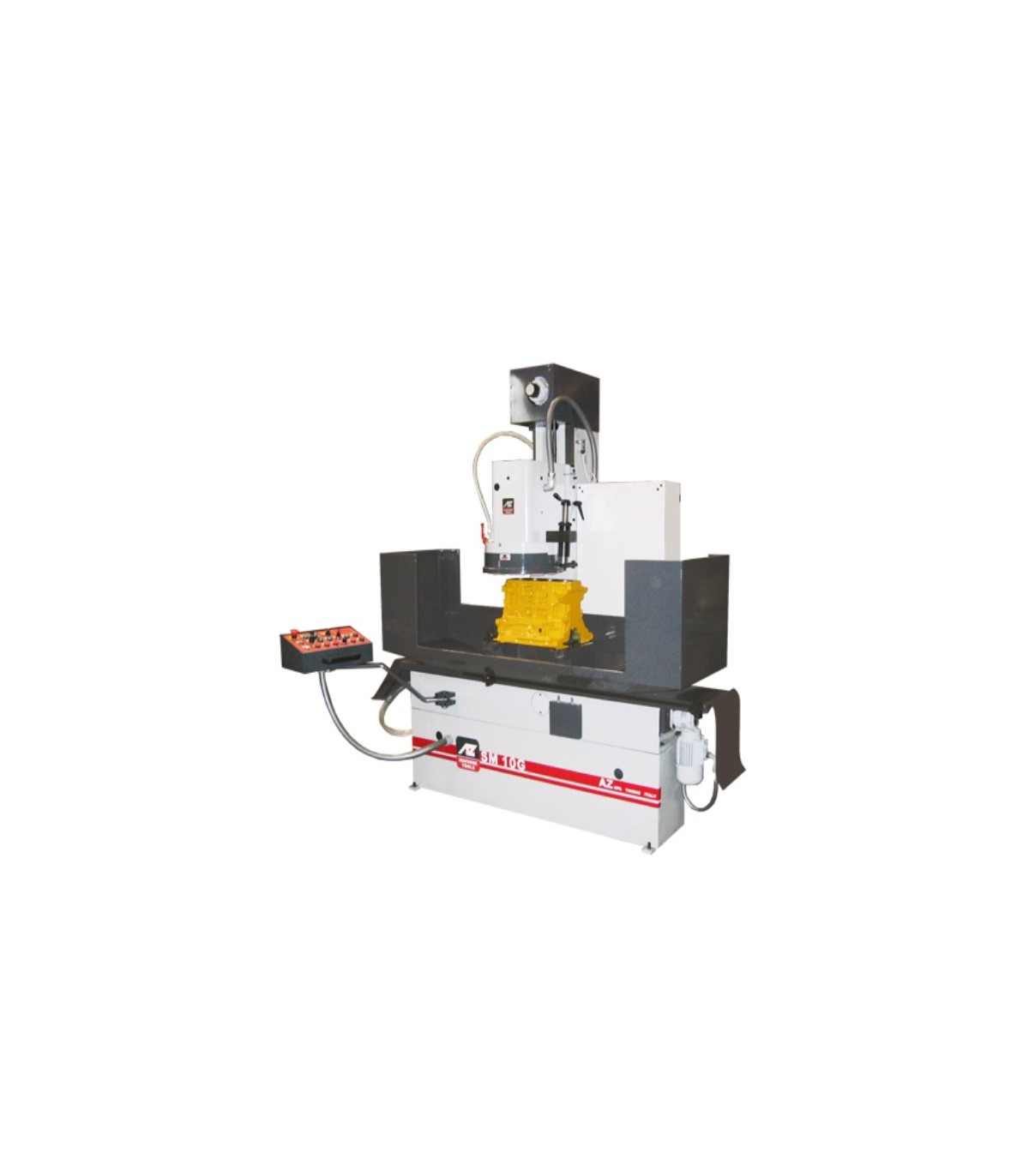

Electrically Driven Traversing Table with a variable speed table traverse and infinite speed control in each direction. 24” between table and cutter plate. Roll over a 440 Chrysler block easily. Power head traverse quickly positions head and eliminates operator fatigue. Rigid cast iron base and table incorporate flat and v-way design for maximum accuracy and life. Precision ball lead screw increases sensitivity, accuracy, repeatability. CBN milling, grinding or combination machines offer extreme versatility. 13.5” Milling head with dual CBN Cutters. Cast Iron “box” type columns with dovetail ways extend durability and precision.
Max automatic table traverse : 1030mm
Vertical wheelhead traverse : 370mm
Max grinding width : 340mm
Max milling width with cutting tool : 340mm
Useful table surface : 850x340mm
Min and max height table to wheel : 110x610mm
Min and max height table to tool or milling cutter : 100-600mm
Distance from column to table C/L : 250mm
Segmental wheel diameter : 350mm
CBN milling head (optional) : 350mm
