AZ Spa Grinding-Milling Machine SPX1600

Brand:

AZ Spa Grinding-Milling Machine SPX2000

AZ Spa Grinding-Milling Machine SM13

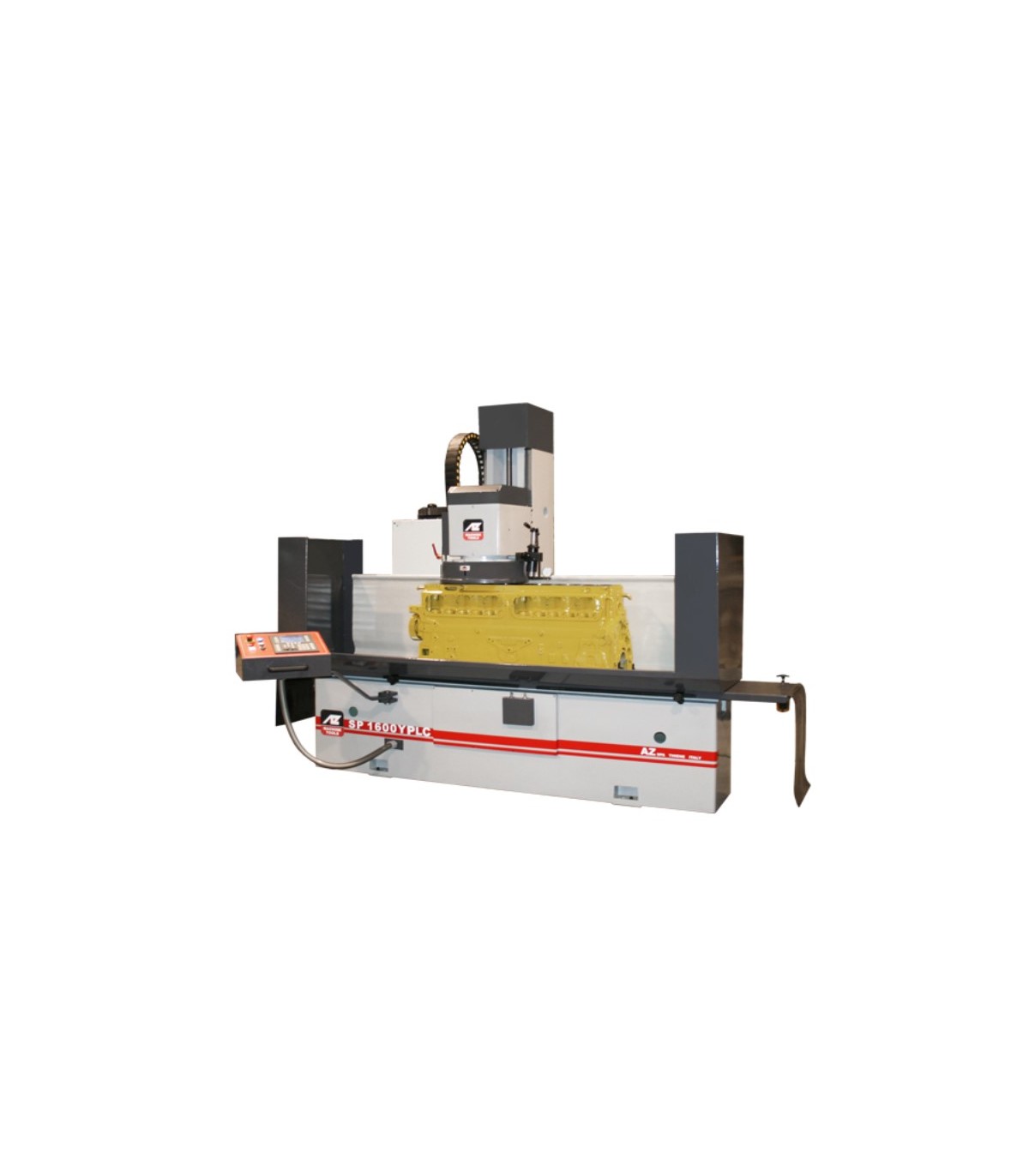

Model: SPX1600

The AZ Spa Grinding-Milling Machine SPX1600 is a powerful and precise machine tool for grinding and milling. This machine is designed to provide exact and reliable results with a maximum speed of up to 1600 rpm. This machine is perfect for grinding, milling, and drilling a variety of materials such as aluminum, steel, and plastics. Get the precision and power you need for your next project with the AZ Spa Grinding-Milling Machine SPX1600.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Max automatic table traverse : 1600mm

Max grinding width : 410mm

Max milling width with cutting tool : 410mm

Useful table surface : 1400X410mm

Min and max height table to wheel : 0-850mm

Min and max height table to tool or milling cutter : 0-850mm

Distance from column to table C/L : 260mm

Segmental wheel diameter : 420mm

CBN milling head (optional) : 420mm

Product Details

Reference SPX1600

Data sheet

Model: SPX1600
