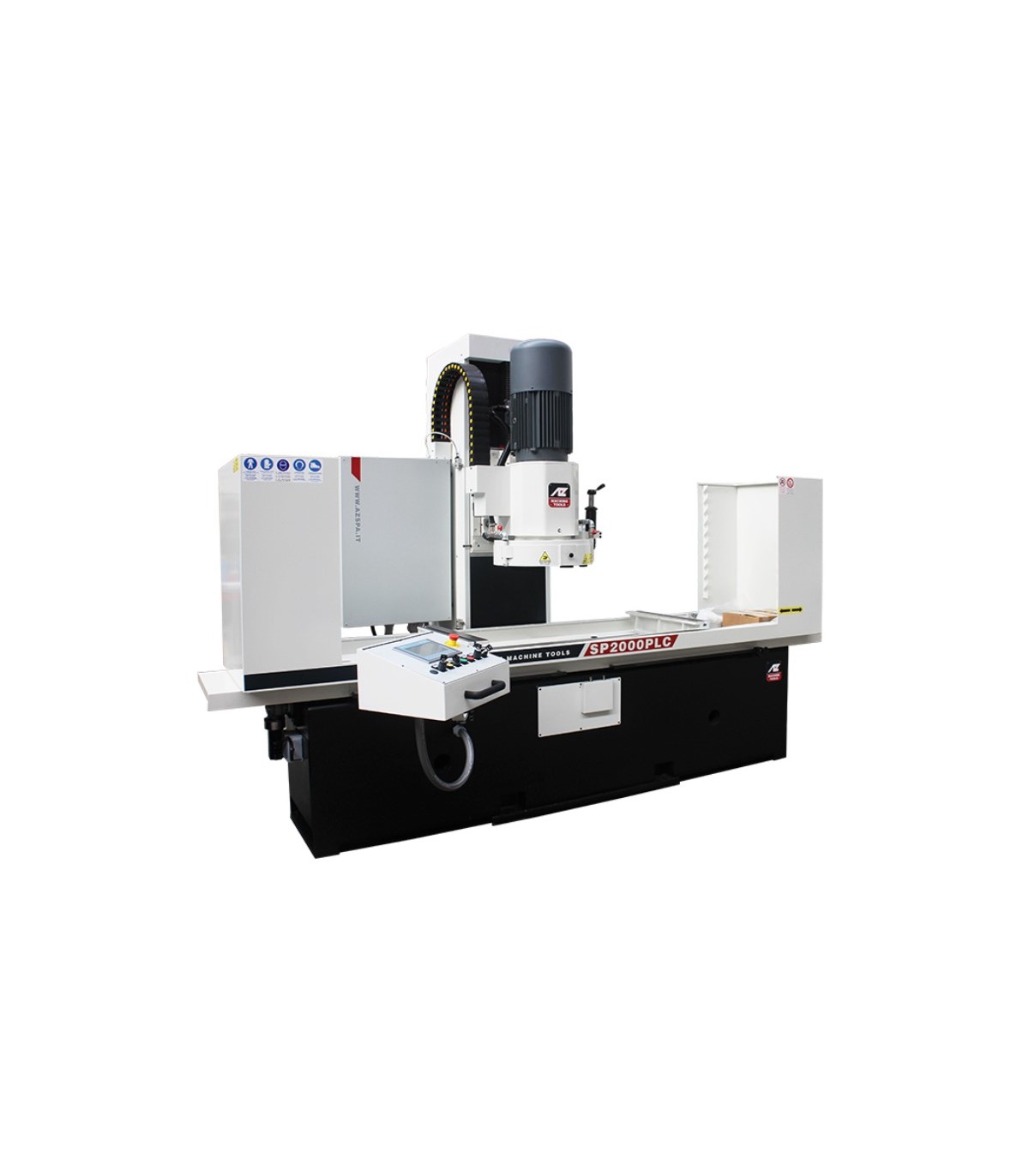

AZ Spa Grinding-Milling Machine SPX2000

Brand:

AZ Spa Grinding-Milling Machine SP1600Y

AZ Spa Grinding-Milling Machine SPX1600

Model: SPX2000

The AZ Spa Grinding-Milling Machine SPX2000 is a precision piece of machinery designed to make your grinding and milling jobs easier and more efficient. It features an adjustable working table, a powerful motor, and a sturdy construction for increased durability. Get ready to take your grinding and milling operations to the next level with this top-of-the-line machine.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Max automatic table traverse : 2000mm

Max grinding width : 440mm

Max milling width with cutting tool : 440mm

Useful table surface : 1800x440mm

Min and max height table to wheel : 0-850mm

Min and max height table to tool or milling cutter : 0-850mm

Distance from column to table C/L : 395mm

Segmental wheel diameter : 450mm

CBN milling head (optional) : 450mm

Product Details

Reference SPX2000

Data sheet

Model: SPX2000
