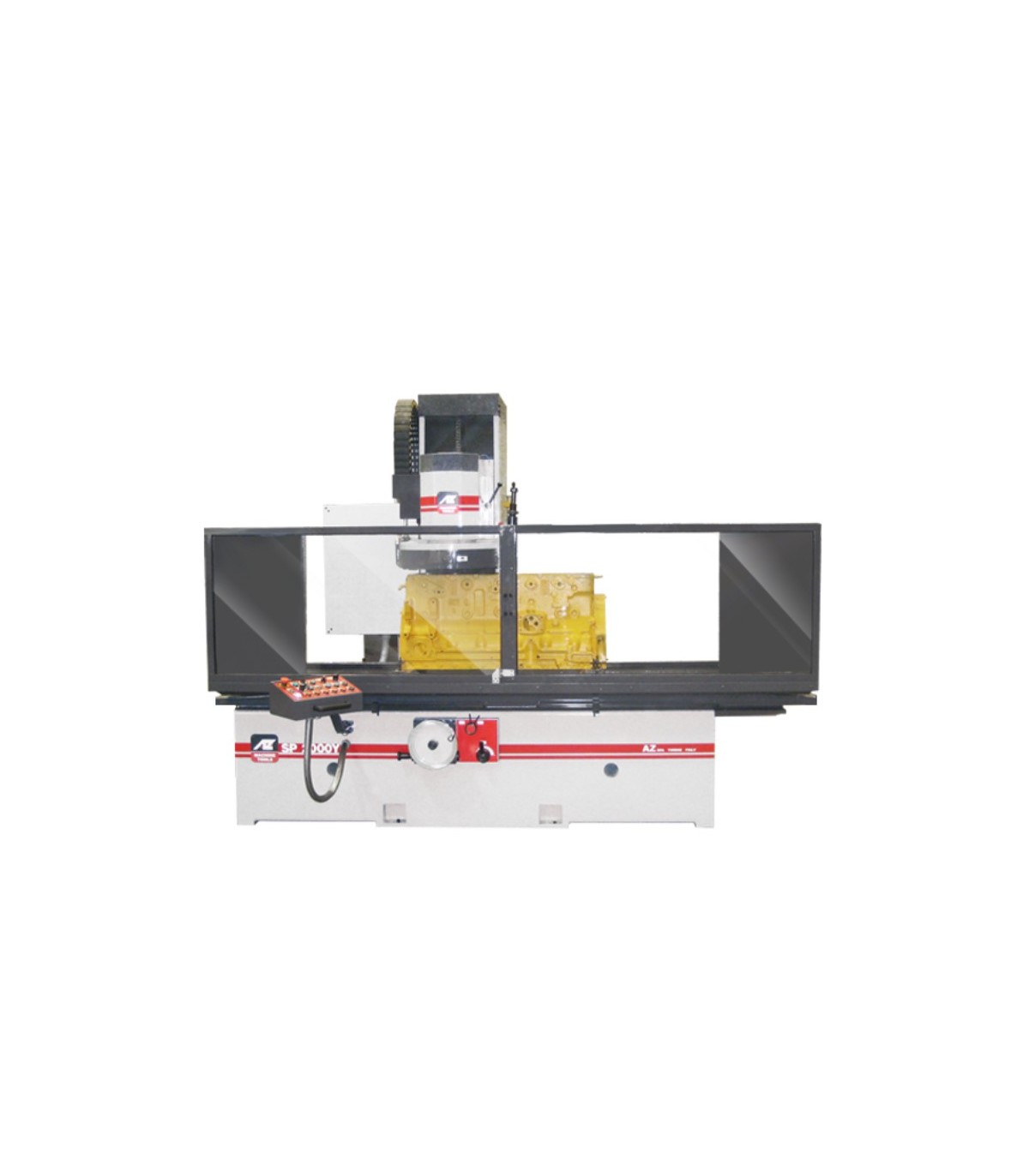

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact surface finish desired for the wide range of gasket materials used. A power column to help the operator finish the jobs fast. Rugged cast iron base with precision ground and matched ways. Flat and "V" way construction assures accurate parallelism and side-to-side tracking. Cast iron "box" type columns with dove tail ways and precision spindle bearings make the SP Series durable and accurate machines.
Max automatic table traverse : 2000mm
Max grinding width : 440mm
Max milling width with cutting tool : 440mm
Useful table surface : 1800x440mm
Min and max height table to wheel : 0-850mm
Min and max height table to tool or milling cutter : 0-850mm
Distance from column to table C/L : 395mm
Segmental wheel diameter : 450mm
CBN milling head (optional) : 450mm
