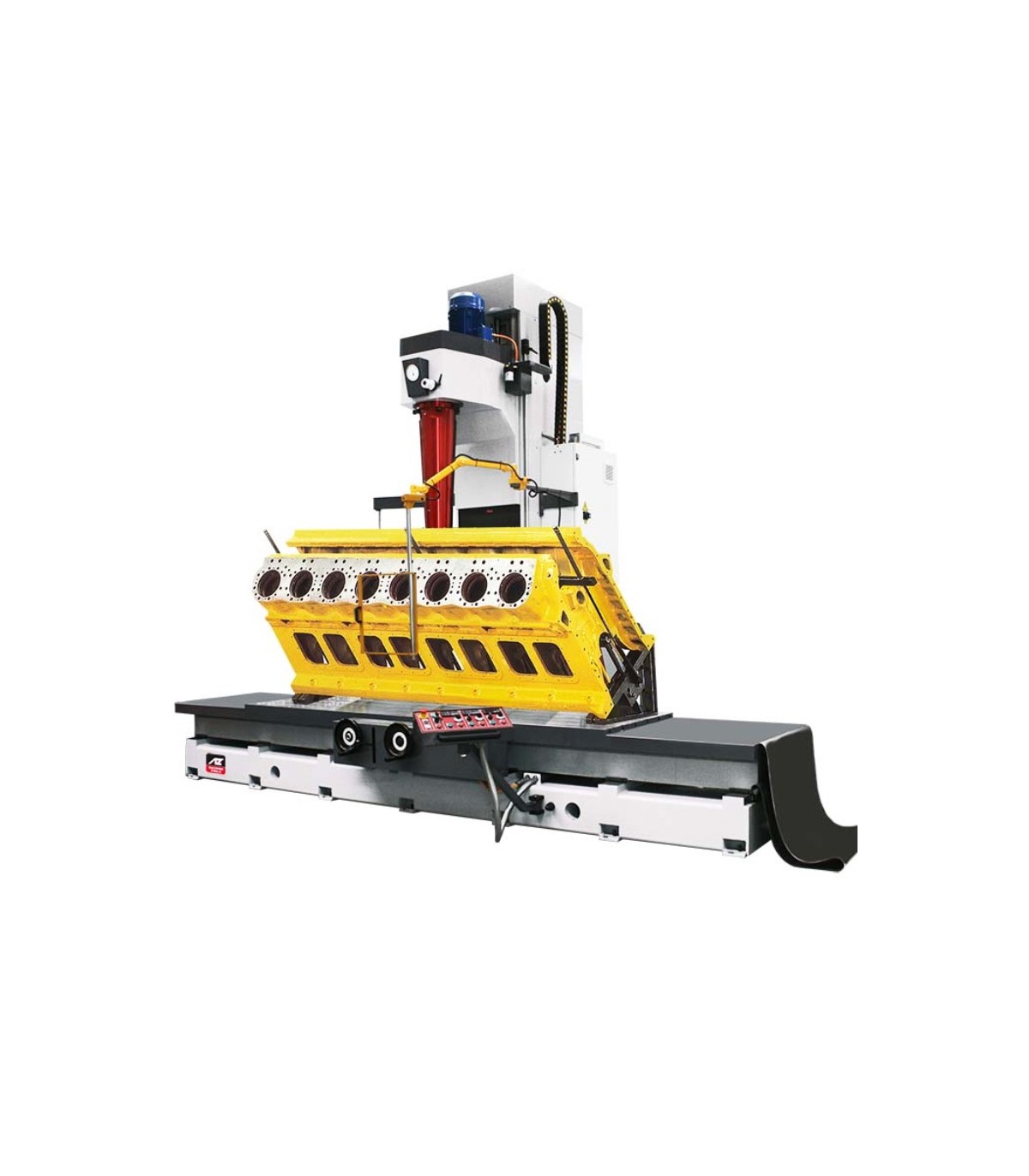

They have infinitely variable spindle rotation, table traverse and boring feed. An added exclusive feature is electronic DUAL AXIS VARIABLE SPEED movement of the table. This allows the operator to position the workpiece with joystick controls on the control panel, dramatically reducing the effort required to center the spindle in cylinders for boring operation setup. The big VBs were designed for the Heavy Duty Diesel shop that requires greater milling and boring capacity. The boring capacity range is 1.18" to 14". Maximum vertical travel of the power head is 36.3". Standard equipment includes a 16" CBN Milling Head. 22" column to centerline distance at bottom of column and 74.8" of table travel give ample capacity for 3412 and 3508 Cat blocks.
Boring range : 30-500mm
Max boring height : 1450mm
Max milling width : 500mm
Max milling length : 2700mm
Max vertical travel of the head : 450mm
Distance from spindle center to column : 550mm
Table surface : 3000-850mm
Max longitudinal travel of table : 2900mm
Max traverse travel of table : 200mm
Max distance between head and table : 2160mm
Spindle rotation : 0-50mm/min
Head movement : 40-400rpm
Table movement : 0-200mm/min
