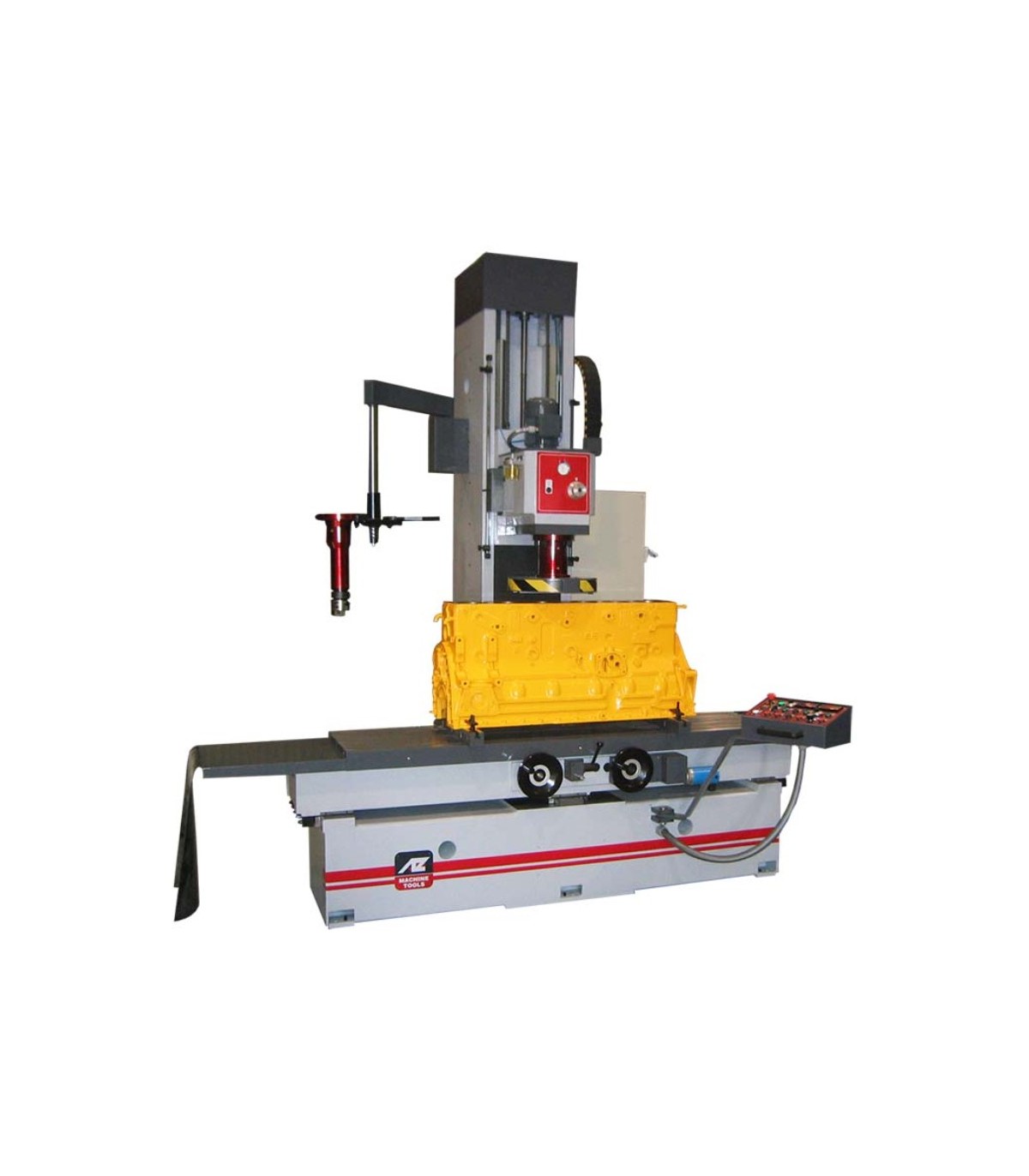

Designed for the Heavy Duty Diesel shop that requires greater milling and boring capacity.The boring capacity range is 1.18" to 14." Maximum vertical travel of the power head is 36.3." Standard equipment includes a 16" CBN Milling Head. 22" column to centerline distance at bottom of column and 74.8" of table travel give ample capacity for 3412 and 3508 Cat block.The VB260 has infinitely variable spindle rotation, table traverse and boring feed. An added exclusive WVN feature is electronic DUAL AXIS VARIABLE SPEED movement of the table. This allows the operator to position the work piece with joystick controls on the control panel, dramatically reducing the effort required to center the spindle in cylinders for boring operation setup.
Boring range : 30-260mm
Max boring height : 675mm
Max milling width : 340mm
Max milling length : 1725mm
Max vertical travel of the head : 675mm
Distance from spindle center to column : 360-560mm
Table surface : 2000-500mm
Max longitudinal travel of table : 1900mm
Max traverse travel of table : 135mm
Max distance between head and table : 1420mm
Spindle rotation : 1000rpm
Head movement : 0-100mm/min
Table movement : 0-200mm/min
