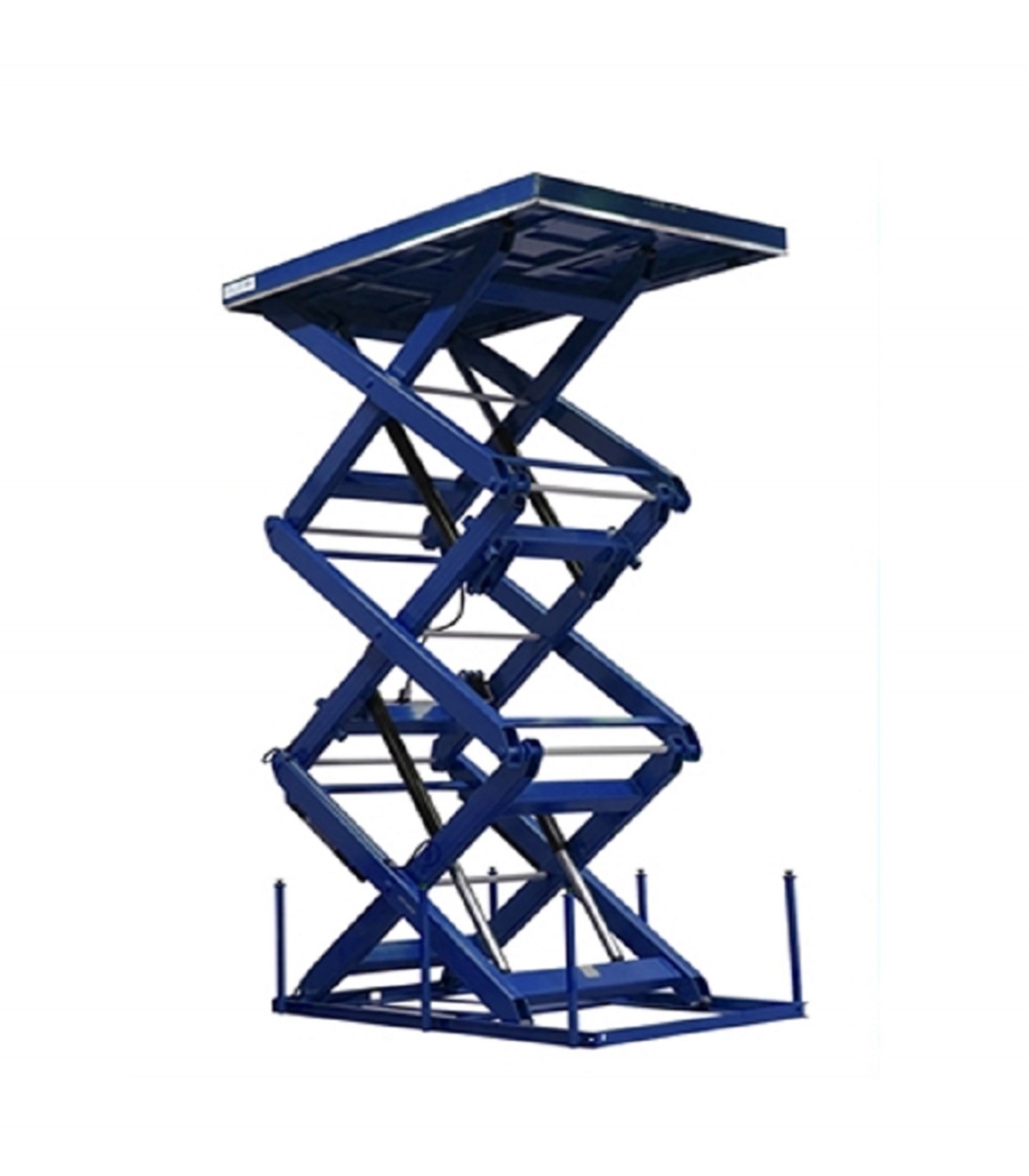

Edmolift Vertical Triple Scissor Lift Table TPT 4000

Brand:
Model: TPT 4000

EdmoLift's vertical double and triple scissor lift tables can be used as working platforms, pallet stackers, work tables, lifts and lifts for disabled persons, to name a few applications. Compared to a traditional lift solution, EdmoLift's vertical double and triple scissor lift tables provide a rational and cost effective solution.

Add to wishlist
Description

With a variety of designs and models, load capacity of between 200 kilo and 5 metric tons and a lift range from 1170 mm to 5900mm, we offer a very large selection. The lift tables are available in different colours, with a range of different accessories or control units - all tailored to the needs and requirements of the customer. Most models are even available in heavy duty versions if intensive operation is planned for them.

Greater functionality can be achieved with the help of various accessories. A few examples of accessories for this product group are various chassis frames, guard rails, gates, loading flaps, limit switches, as well as different types of control unit.

Before deciding which model and design is required consider all conditions. Most models for intensive use can be manufactured in HD-version. The technical data for each model can be found on this site.

Product Details
TPT 4000

Data sheet

Model
TPT 4000
Art. no.
604124
Capacity
4000 kg
Lift stroke
6000 mm
Closed height
1000 mm
Length
3000 mm
Width
1500 mm
Lifting time
104 sec
kW
5,50 kW
