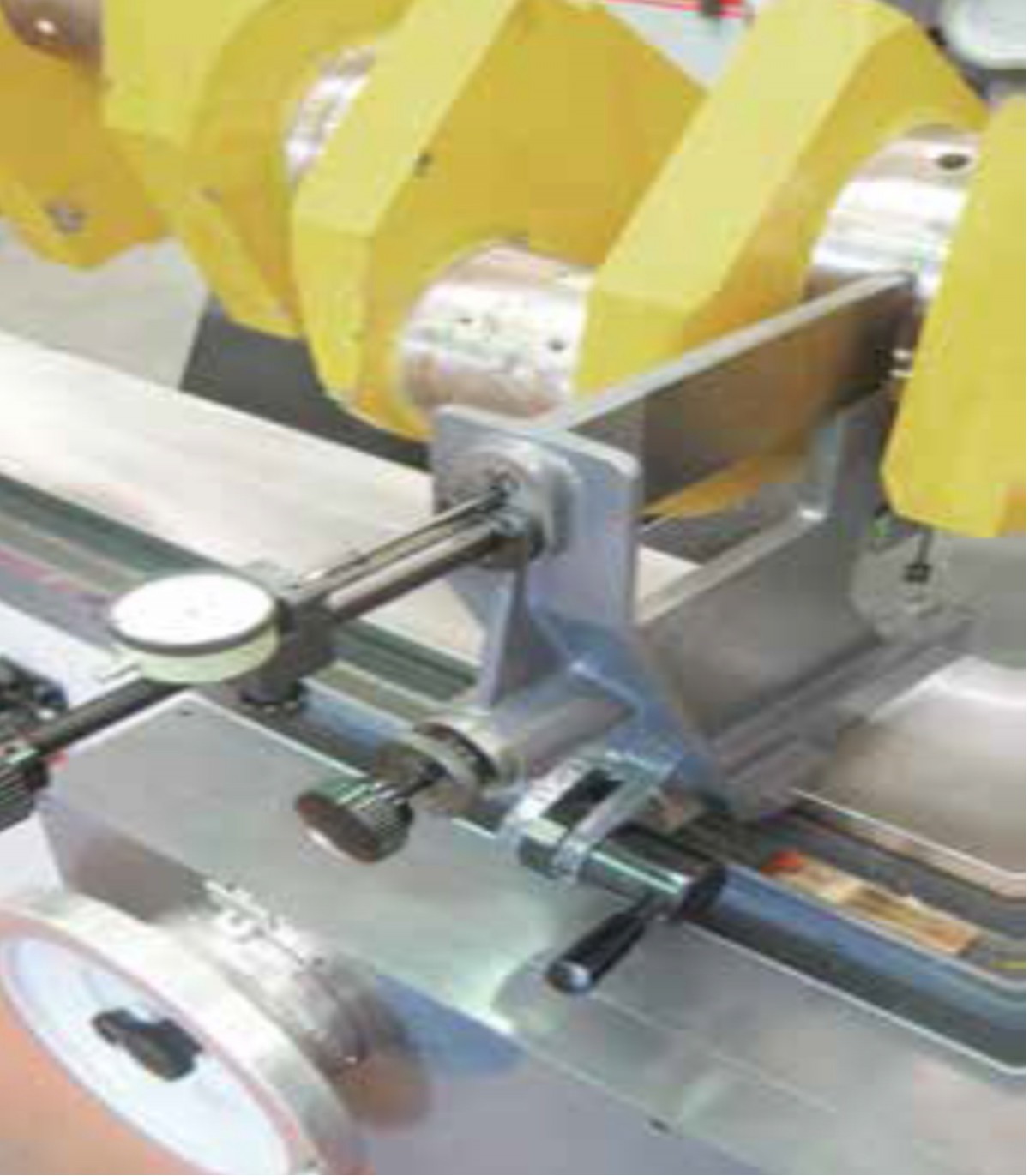

Crankshafts & Cylinders Grinding Machine CG270
The CG270's are built very heavy with widely spaced ways to assure positive alignment of the wheel head to the table. Moreover, the controls are easier to use.
• Four indexing locations on the head stock with the air operated index pins make it faster to dial in the crankshaft properly.
• Easily adjusted outboard counterweights never need to be supplemented by inboard weights.
• Precision Incremental In-Feed Lever is much easier to use than a hand wheel to achieve the precise desired journal size. One full stroke of this lever moves the wheel head precisely .0004”, and it can be used in steps to move the wheel head .0001”, .0002”, or .0003”.
• The superior accuracy of this machine allows double plunge grinding precisely to the same size leaving no lap line.
Data sheet
- Model
- CG270
- Height of centers
- 270 mm
- Max distance between centers
- 2000 mm
- Swing over table
- 540 mm
- Grinding wheel diameter
- 710 mm
