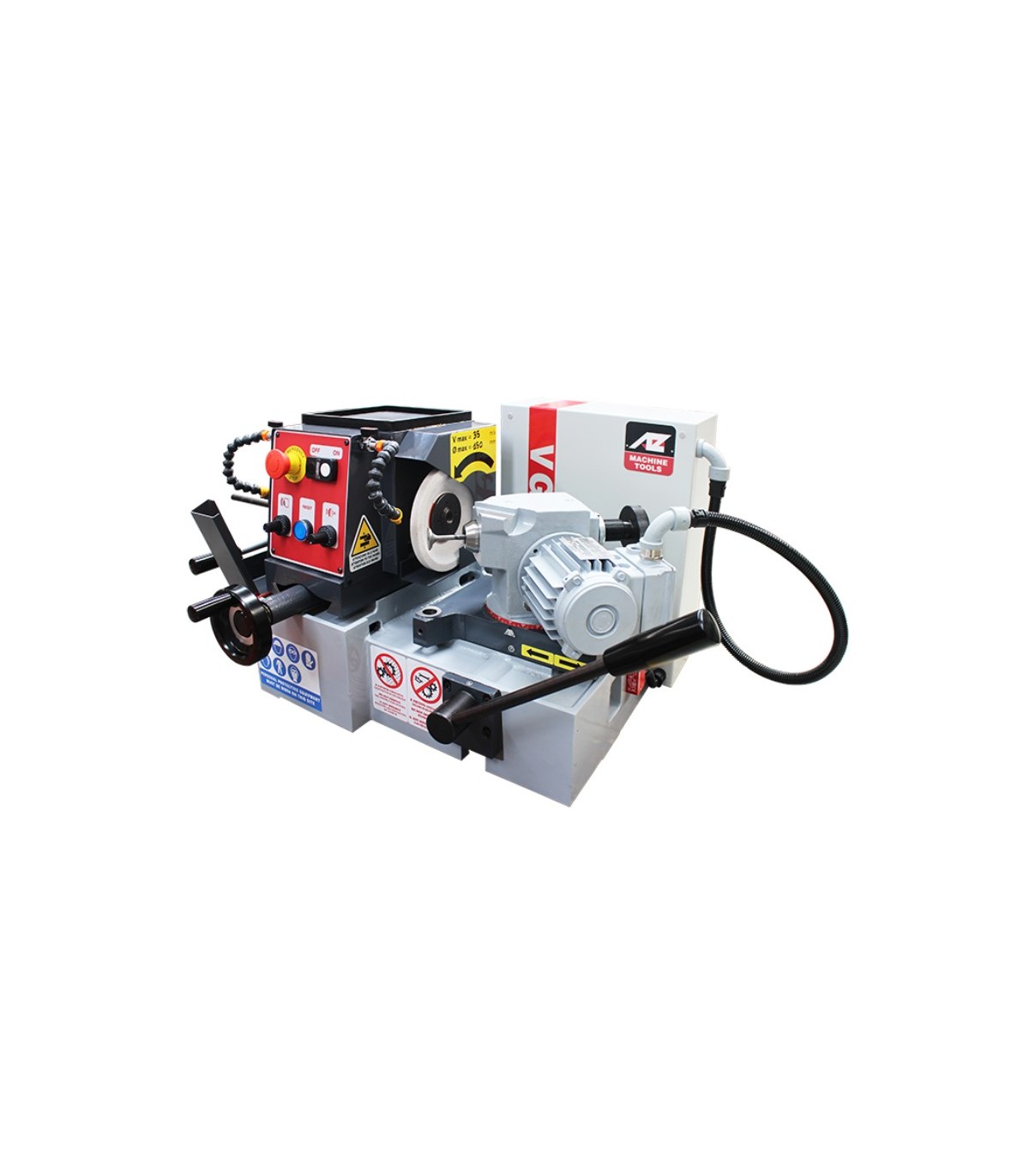

Valve Grinding Machine VGX
Brand:
AZ Spa

Valve Grinding Machine VGX

Brand:
AZ Spa
Valve Grinding Machine VG28
Conrod Boring Machine BL600
Model: VGX
  • Valve variable rotation speed
  • Grinding wheel variable speed
  • Valve headstock adjustement from 15° to 60°
  • Valve clamping by collet
  • V-support and valve stop for repeatable valve stem grinding
  • Coolant system
Make an Enquiry
Add to wishlist
Share
விவரம்

Min-max valve stem dia admitted  : 6-16mm

Max head dia admitted  : 90mm

Min-max grinding angle : 20°-60°mm

Diameter of the straight-cup grinding wheel : 80mm

Grinding wheel rotation speed : 2800rpm

Product Details
VGX

Data sheet

Model
VGX
