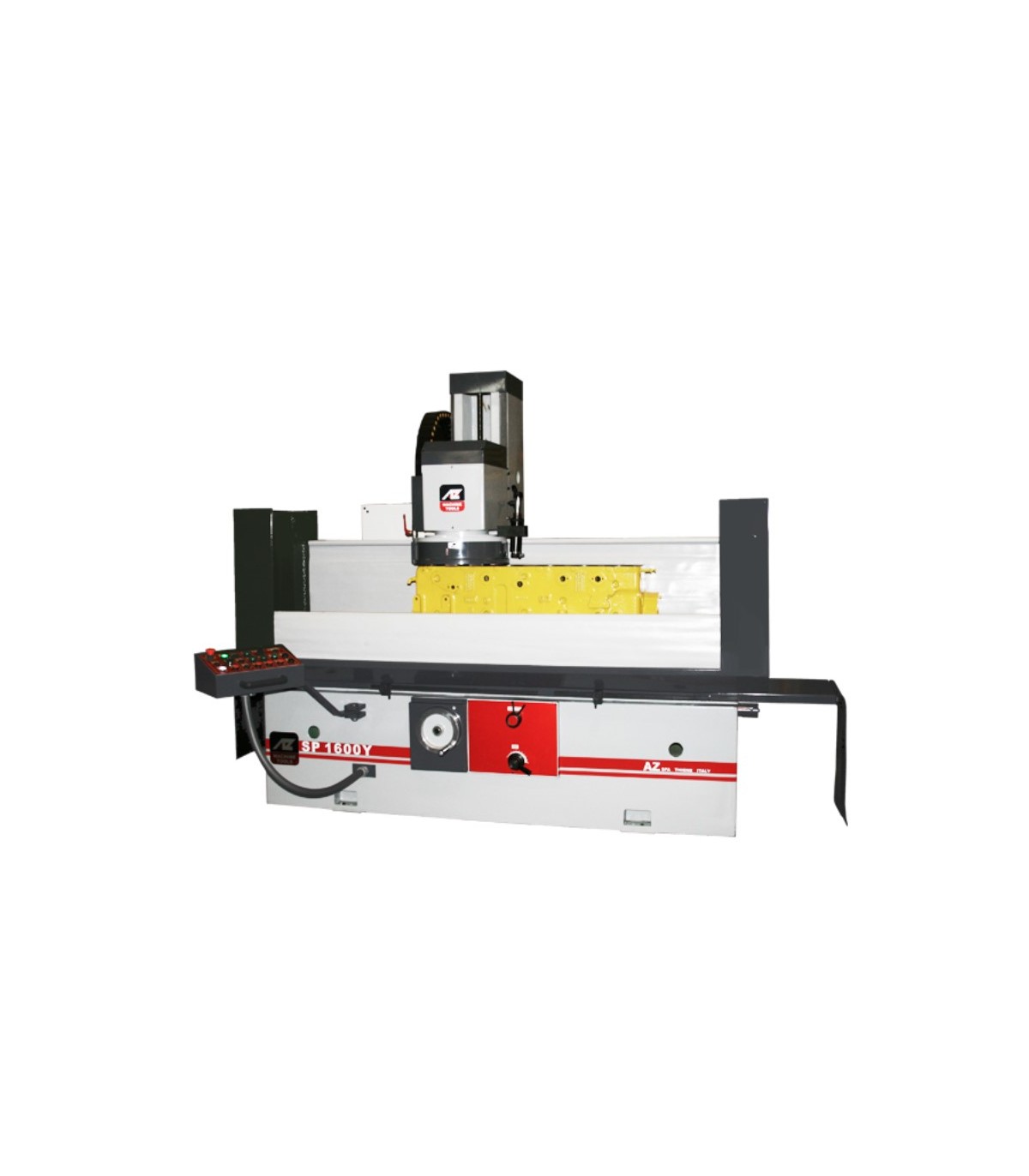

Grinding-Milling Machine SP1600Y

Brand:
Model: SP1600Y

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact surface finish desired for the wide range of gasket materials used. A power column to help the operator finish the jobs fast. Rugged cast iron base with precision ground and matched ways. Flat and "V" way construction assures accurate parallelism and side-to-side tracking. Cast iron "box" type columns with dove tail ways and precision spindle bearings make the SP Series durable and accurate machines.

Add to wishlist
விவரம்

Max automatic table traverse : 1600mm

Max grinding width : 410mm

Max milling width with cutting tool : 410mm

Useful table surface : 1400X410mm

Min and max height table to wheel : 0-850mm

Min and max height table to tool or milling cutter : 0-850mm

Distance from column to table C/L : 260mm

Segmental wheel diameter : 420mm

CBN milling head (optional) : 420mm

Product Details
SP1600Y

Data sheet

Model
SP1600Y
