Goyen Filter Cleaning Controllers ECS/ECX Series

Model: ECS/ECX Series

The ECS Control System is an intelligent controller developed to provide flexible solutions for economical filter life by minimising the costs associated with maintaining and operating modern dust filtration systems. The integrated dP transducer allows the controller to determine exactly when filters require cleaning. This feature ensures the filters are cleaned only when necessary, dramatically extending filter life and lowering emissions, while significantly reducing compressed air use.

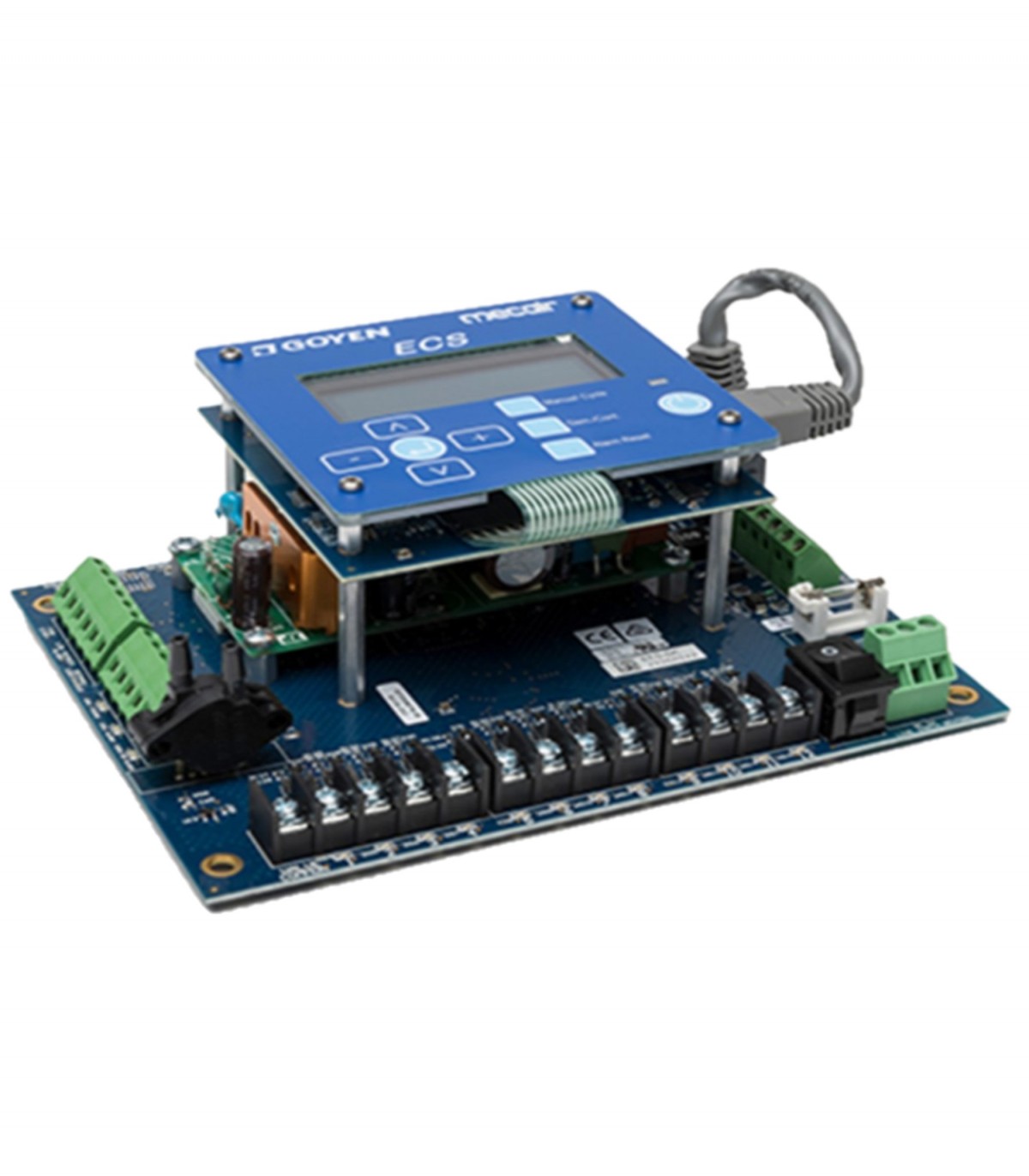

The ECS base board has 12 solenoid outputs on board. The addition of expansion cards, matched to the AC or DC output of the controller, increases this number to 360 outputs. The ECS may be ordered as the control board only or in an enclosure (polycarbonate).

Add to wishlist


  • High-performance, cost-minimising controller
  • Expansion cards extend the control up to 360 solenoid outputs
  • Quick Pulse Technology
  • Each AC output can have 10 pilot valves connected in parallel, enabling up to 3600 pilot valves to be supported
  • Each DC output can have 2 pilot valves connected in parallel between −40°C to 60°C (−40°F to 140°F), enabling up to 720 pilot valves to be supported
  • The main PCB only can have 3 DC pilot valves connected in parallel between −20°C to 60°C (−4°F to 140°F)
  • Low temperature operation −40°C (−40°F)
  • Automatic pilot valve detection
  • Voltage-free coil error output and a visual indication on the display showing which pilot valve output has an error, enabling quick fault finding and debugging
  • Conforms to the requirements of UL, CE, FCC and RCM

Product Details
ECS/ECX Series

Data sheet

ECS/ECX Series
