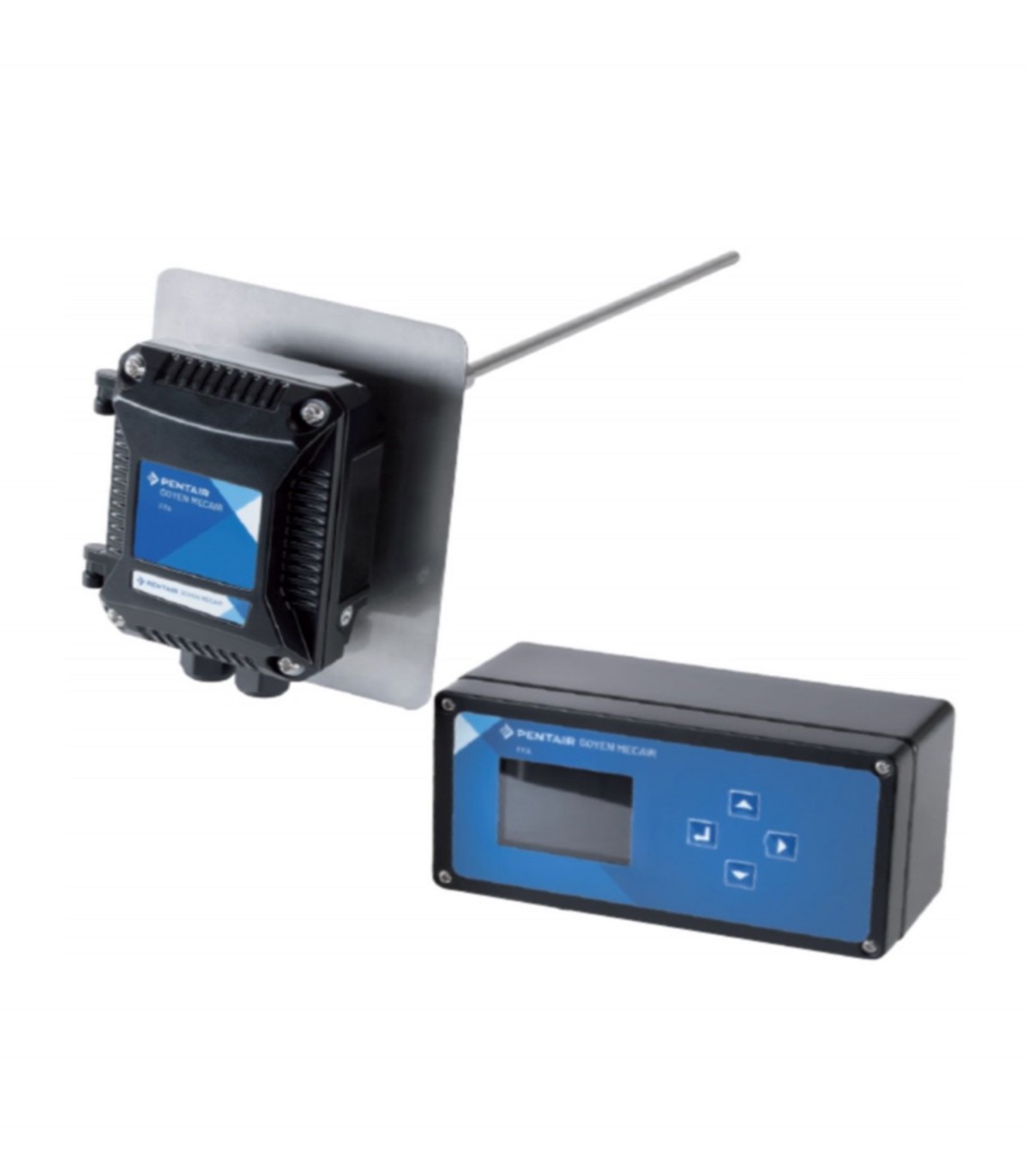

Goyen Filter Failure Alarm FFA

Brand:
Model: FFA

The Goyen FFA provides you dependable and pragmatic filter monitoring through an easy setup external unit and clear, simple and language independent full-color LCD display. It features two alarm relays and a 4-20 mA output and can work in ATEX rated environments (II 3GD) and flu gas temperatures from -20°C to +240°C (-4°F to +464°F).

Add to wishlist
Description

The FFA utilizes a unique probe electrification technology which provides much better performances than conventional DC triboelectric systems as well as alternative AC systems. This allows extending the velocity range over which the system has no cross sensitivity to changing velocity. Thanks to that technology, the FFA is also unaffected by build-up of particulate on the sensing rod, thus eliminating signal drift concerns. A charge signature is induced by particulates in the airstream interacting with the sensing rod. The FFA extracts a specific frequency band from the induced AC current signature and filter out the DC current generated by direct particle collisions. In order to reject signals falling outside a pre-defined frequency range, the so resulting signal is electronically filtered. Thanks to that, Goyen | Mecair filter failure alarms are less susceptible to changes in particle velocity and are not affected by any particulate contamination on the sensing rod.

  • Suitable for a wide range of dust collectors designs and configurations
  • Dust level response: <1mg/m3 to 500mg/ m3 (<0.028 mg/ft3 to 14 mg/ft3)
  • Flue gas velocity from 4m/sec
  • Flue gas temperature up to 240°C (464°F)
  • Ambient temperature from -20°C to +50°C (-4°F to +122°F)
  • Duct sizes from 0.5m
  • Hazardous area ATEX II 3GD
  • US-EPA MACT compliant

Product Details
FFA

Data sheet

Model
FFA
