Goyen Filter Cleaning Controllers IS/ISP Series
Goyen Filter Cleaning Controllers IS/ISP Series
Brand:
Goyen

Goyen Filter Cleaning Controllers IS/ISP Series

Brand:
Goyen
Goyen Filter Cleaning Controllers ECS/ECX Series
Goyen Blowtube Nozzles & Clones GOCO Series
Model: IS/ISP Series

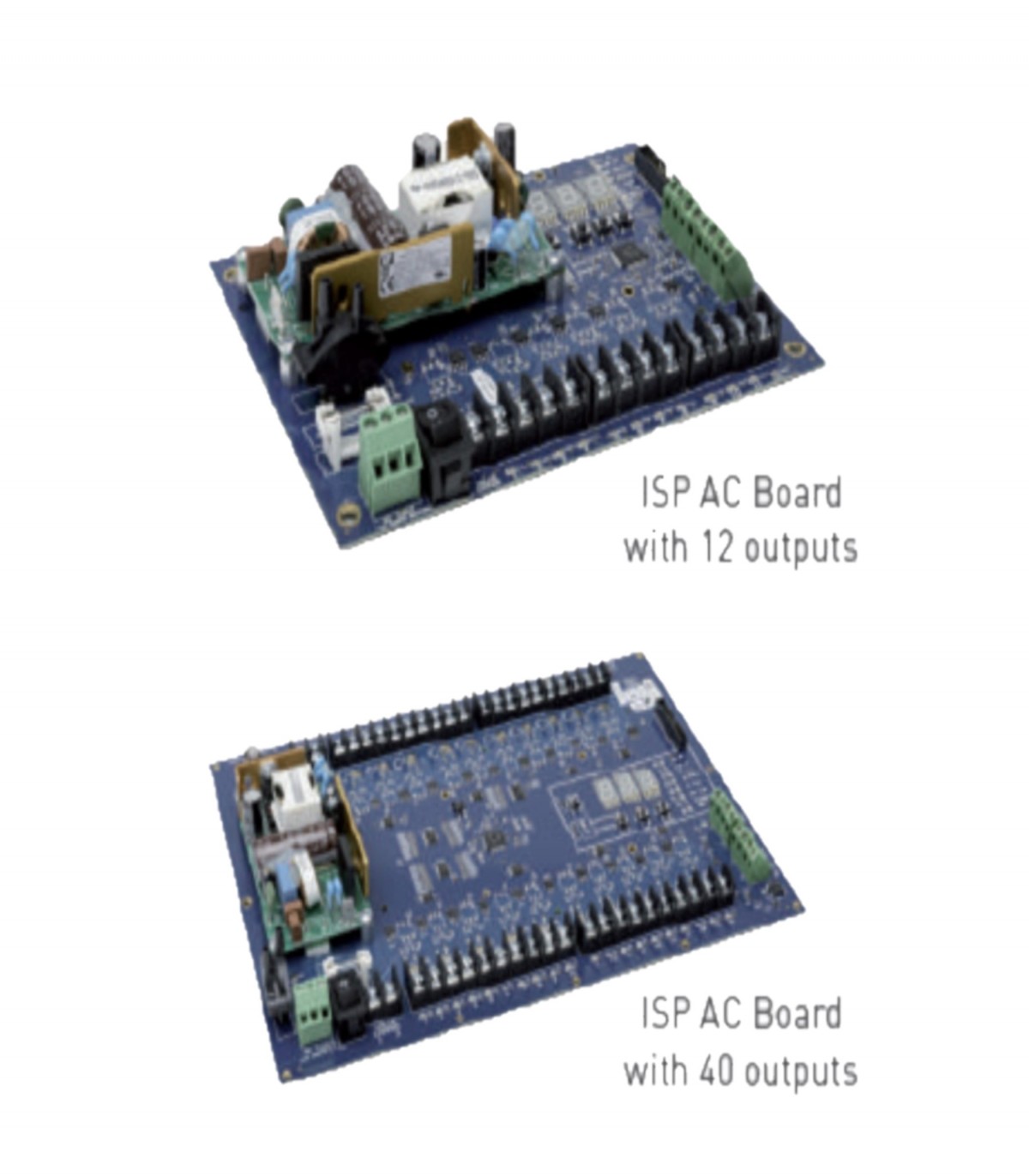

The Integrato Sequencer (IS & ISP) features integrated controls intended for use with larger reverse pulse jet filter cleaning systems. The IS & ISP have been designed to operate across a wide range of environmental conditions. It is suitable for use with all types of filters, including bags, cartridges, sintered metal or ceramic filters.

The IS sequencer operates in continuous mode, whereas the ISP has a built-in differential pressure sensor, allowing this sequencer to be demand driven.

IS & ISP may be ordered as the sequencer only or in an enclosure (polycarbonate).

Make an Enquiry
Add to wishlist
Share
Description

FEATURES:

  • Low temperature operation −40°C (−40°F)
  • Automatic valve detection
  • Voltage-free coil error output and a visual indication on the display showing which pilot valve output has an error, enabling quick fault finding and debugging
  • Controls up to 40 pilot valves
  • Each AC output can have 10 pilot valves connected in parallel, enabling up to 400 pilot valves to be supported
  • Each DC output can have 3 pilot valves connected in parallel between −20°C to 60°C (−4°F to 140°F), enabling up to 120 pilot valves to be supported and 2 pilot valves connected in parallel between −40°C to 60°C (−40°F to 140°F), enabling up to 80 pilot valves to be supported
  • Conforms to the requirements of UL, CE, FCC and RCM

Product Details
IS/ISP Series

Data sheet

Model
IS/ISP Series
Resources
Goyen - IS-ISP Series
Download (218.38k)
