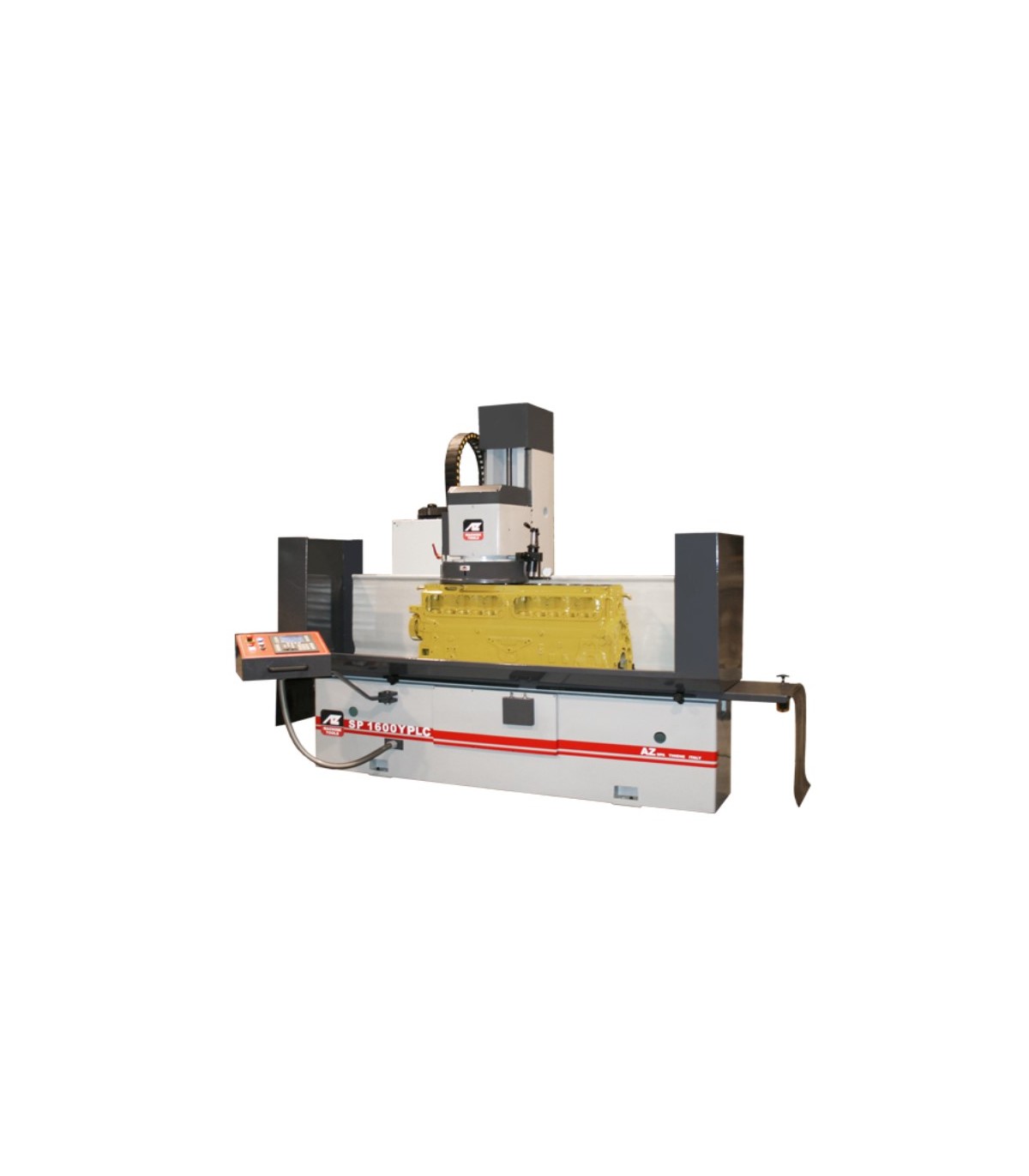

Max automatic table traverse : 1600mm
Max grinding width : 410mm
Max milling width with cutting tool : 410mm
Useful table surface : 1400X410mm
Min and max height table to wheel : 0-850mm
Min and max height table to tool or milling cutter : 0-850mm
Distance from column to table C/L : 260mm
Segmental wheel diameter : 420mm
CBN milling head (optional) : 420mm
