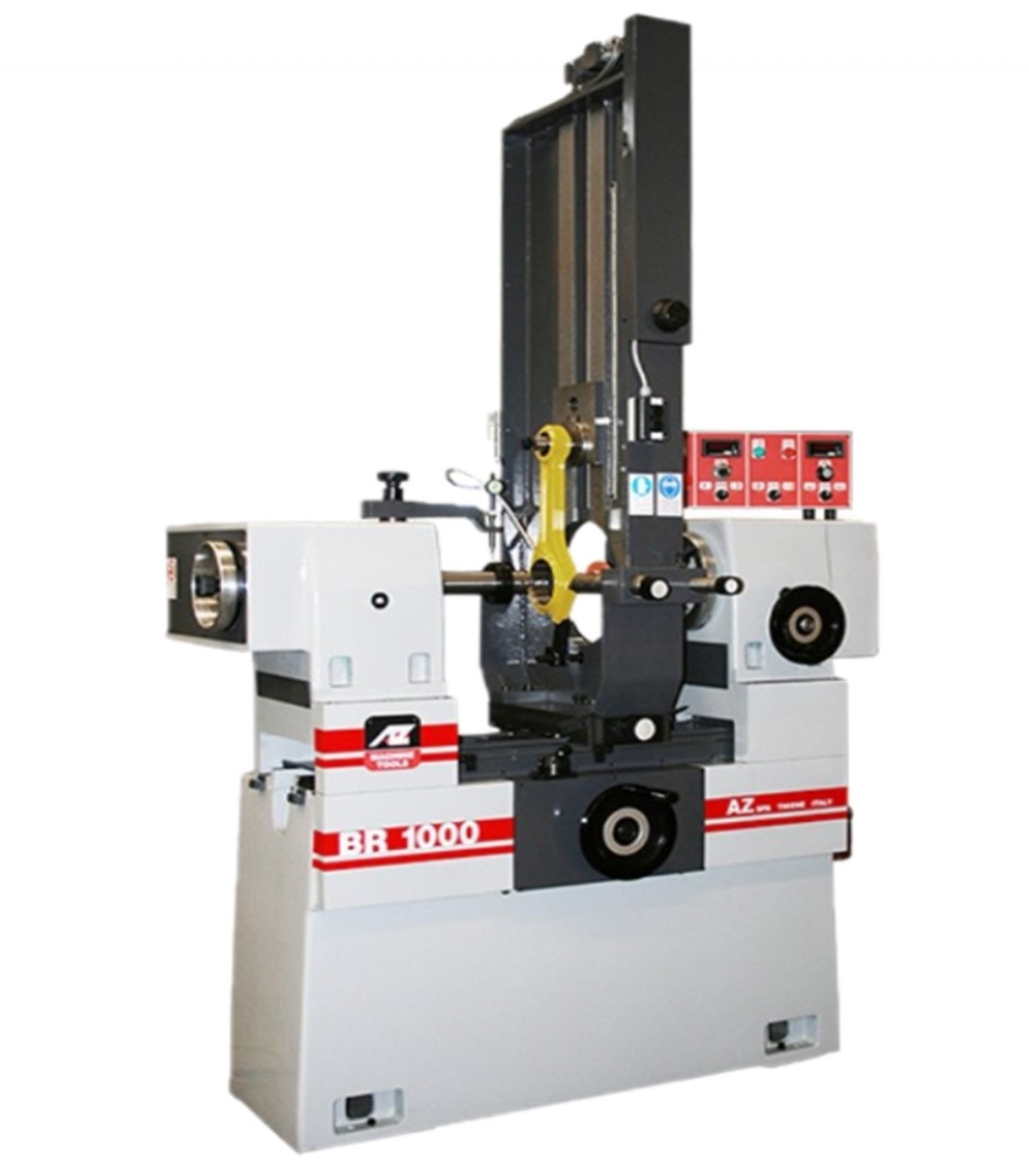

Conrod Boring-Grinding Machine BR1000
Brand:
AZ Spa

Conrod Boring-Grinding Machine BR1000

Brand:
AZ Spa
Conrod Boring Machine BL600
Conrod Boring-Grinding Machine BR650
Model: BR1000

Conrod Boring-Grinding Machine

Make an Enquiry
Add to wishlist
Share
விவரம்

Boring capacity : 15-250mm

Grinding capacity : 30-250mm

Min.-Max. conrod center distance : 160-1000mm

Height of spindle C/L over table : 380mm

Boring spindle rotation speeds : 0-1200rpm

Grinding spindle rotation speeds : 1500-9500rpm

Grinding spindle revolution speed : 80-160rpm

Radial grinding travel (max. eccentricity of wheel C/L) : 12mm

Max. table traverse : 420mm

Variable automatic table speed on both sides : 0-165mm/min

Product Details
BR1000

Data sheet

Model
BR1000
