Grinding Machine RTX1000

Brand:

Model: RTX1000

This machine has been designed for use both in a repair workshop that in the manufacturing industry. Ideal for ease of use, ensures a very good precision. The machine can work even small pieces of magnetic media Optional. The RT1000 is equipped with automatic working cycle controlled by PLC with selection of the number of passes, flame arrestor, job advancement, return to starting position and repeat the cycle.

Make an Enquiry

Add to wishlist

விவரம்
Product Details

விவரம்

Working capacity : 1800x500x950mm

Max grinding wheel : 400x127x30mm

Max. distance from wheel to table surface : 980mm

Min. distance from wheel to table surface : 80mm

Min-max grinding wheel thickness : 20-50mm

Table surface : 1890x460mm

Vertical wheel head stroke : 900mm

Longitudinal stroke of the table : 2000mm

Transversal stroke of the spindle : 540mm

Grinding wheel vertical increment (automatic) : 0.01-0.05mm

Product Details

Reference RTX1000

Data sheet

Model: RTX1000

20 other products in the same category:

AZ Spa

Grinding-Milling Machine SP2000Y

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact...

AZ Spa

Milling Machine SMX

New SMX surface milling machine with PLC control, allows to program and memorize working cycles. The table moves on linear guideways, ball screws on the table and column. New touch pen device for workpiece height...

Rottler

Multi Purpose CNC Machine F10A

AZ Spa

Grinding-Milling Machine SM10

Electrically Driven Traversing Table with a variable speed table traverse and infinite speed control in each direction. 24” between table and cutter plate. Roll over a 440 Chrysler block easily. Power head traverse...

Rottler

Multi Purpose CNC Machine F69A

Rottler

Multi Purpose CNC Machine EM69HP

AZ Spa

Crankshafts Grinding Machine CGA270

CGA and CGX models move the grinding head on the base, this solution permit to reduce the overhall machine dimensions. The workpiece is clamped by headstock fixed on the base and tailstock moving on table support by...

AZ Spa

Honing Machine CH200

Averich

Cylinder Head Pressure Tester PT1600L

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.

AZ Spa

Grinding-Milling Machine SP1600

AZ Spa

Conventional Universal Grinding Machine RUA3600

AZ Universal grinding machines range has been designed to fulfil the requirements of a wide range of applications that combine external, internal, face and taper grinding of components such as: transmission shafts,...

Rottler

Multi Purpose CNC Machine EM103H

Rottler

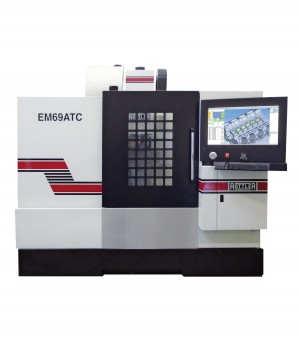

Multi Purpose CNC Machine EM69ATC
