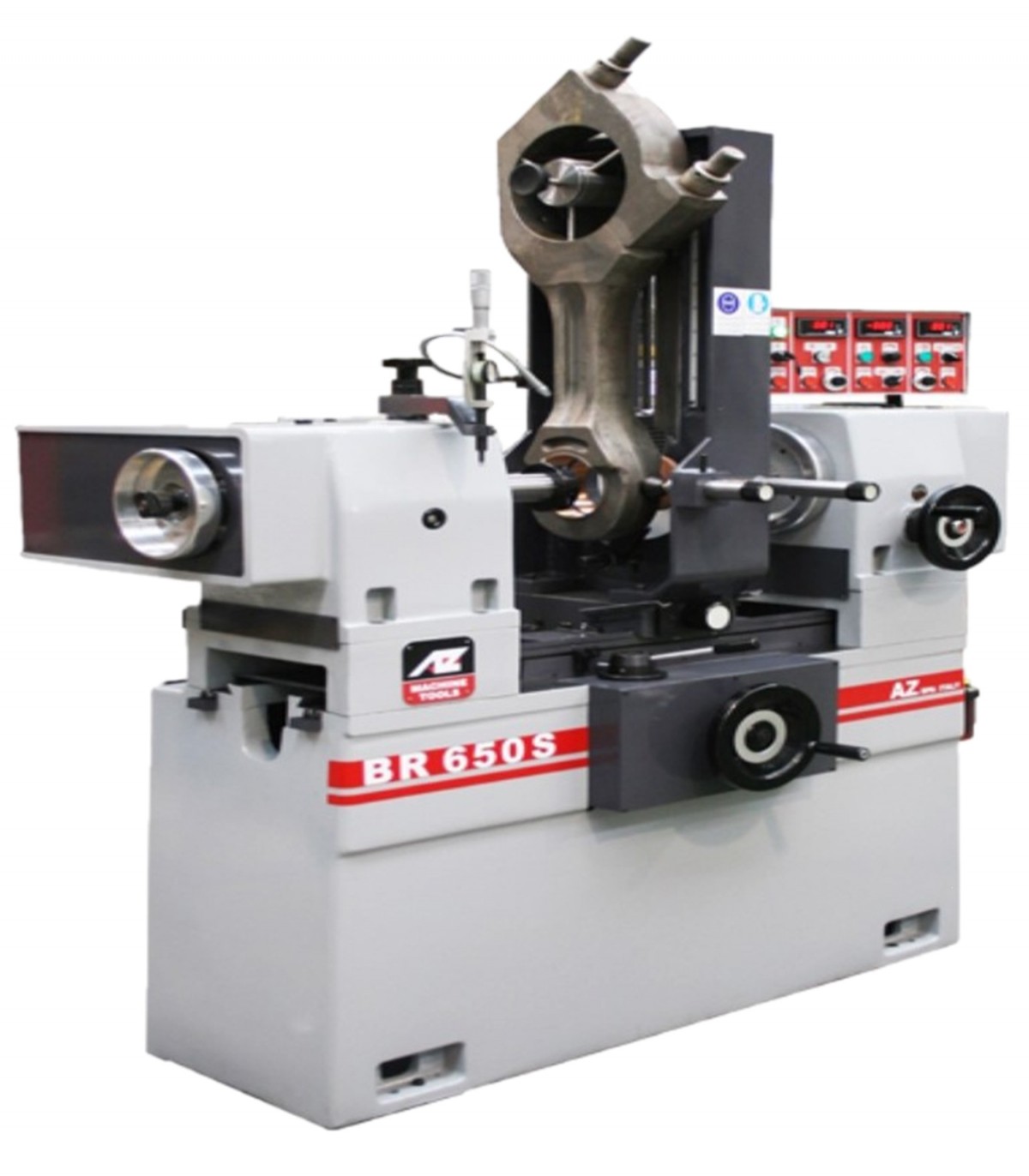

Conrod Boring-Grinding Machine BR650

Brand:
Model: BR650

Conrod Boring-Grinding Machine

Add to wishlist
விவரம்

Boring capacity : 15-160mm

Grinding capacity : 30-160mm

Min.-Max. conrod center distance : 160-650mm

Height of spindle C/L over table : 150mm

Boring spindle rotation speeds : 0-1200rpm

Grinding spindle rotation speeds : 3300-4400-5300-6300-7500-9000rpm

Grinding spindle revolution speed : 80-160rpm

Radial grinding travel (max. eccentricity of wheel C/L) : 12mm

Max. table traverse : 420mm

Variable automatic table speed on both sides : 0-165mm/min

Product Details
BR650

Data sheet

Model
BR650
